XB5AW73731G5 – Illuminated double headed push button, Harmony XB5, plastic, 22mm, 1 green flush I 1 pilot light 1 red projecting O, 120V AC DC, 1NO 1NC
XB5AW73731G5

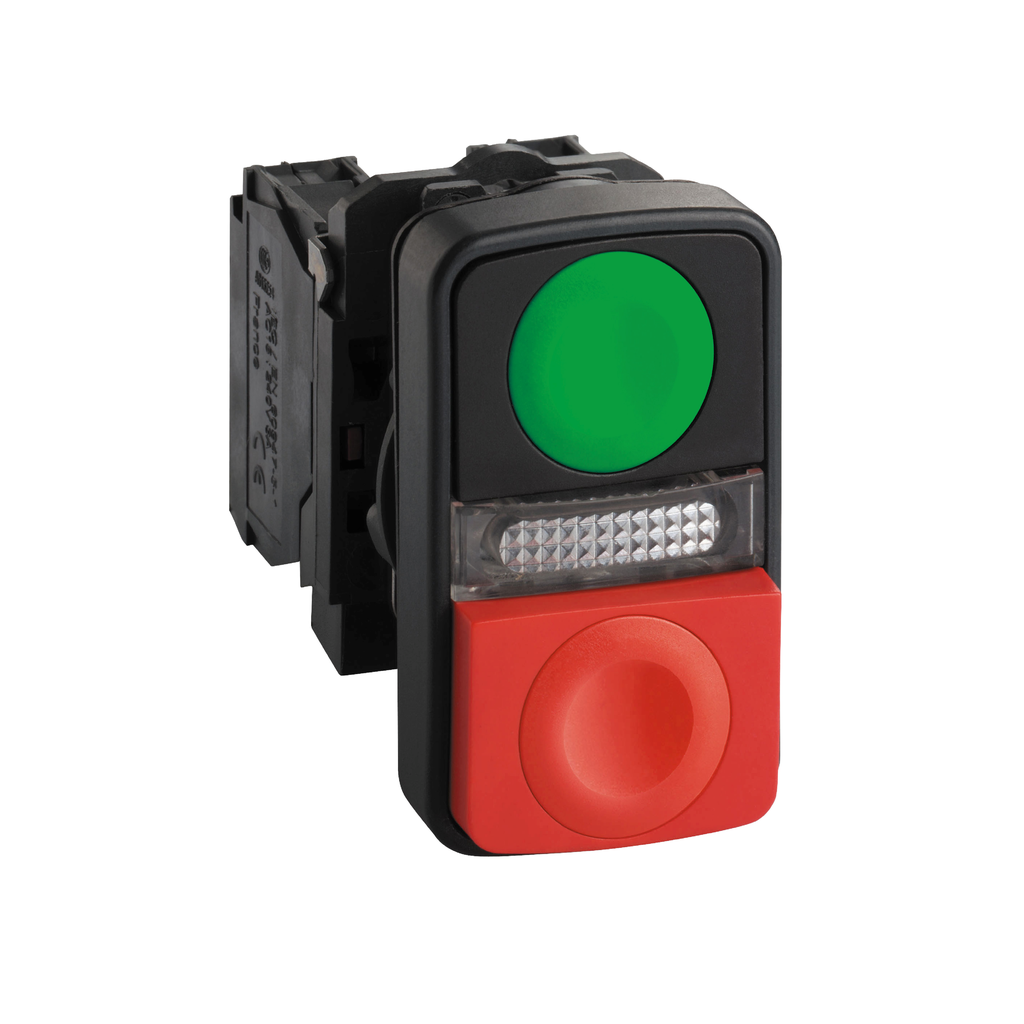

Illuminated double headed push button, Harmony XB5, plastic, 22mm, 1 green flush I + 1 pilot light + 1 red projecting O, 120V AC DC, 1NO + 1NC

This Harmony XB5, double-headed modular push button has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • GL
  • LROS (Lloyds register of shipping)
  • DNV
  • BV
  • CSA
Ik Degree Of Protection IK05 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Standards
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 508
  • IEC 60947-1
  • IEC 60947-5-4
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP69 IEC 60529
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class II IEC 61140
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Resistance To Electrostatic Discharge
  • 6 kV on contact (on metal parts) IEC 61000-4-2
  • 8 kV in free air (in insulating parts) IEC 61000-4-2
Protective Treatment TH
Resistance To Fast Transients 2 kV IEC 61000-4-4
Electromagnetic Emission class B IEC 55011
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2404014EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2404014EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Important Message A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Contacts Usage standard contacts
Height 50 mm
Terminals Description Iso N°1
  • (11-12)NC
  • (13-14)NO
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Colour Of Marking
  • white marking when green, red or black caps
  • black marking when white caps
Net Weight 0.066 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Current Consumption 14 mA
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Service Life 100000 year(s) at rated voltage and 25 °C
Surge Withstand 1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
Signalling Type steady
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Supply Voltage Limits 94-132 V AC
Operator Profile
  • green flush, I white)
  • red projecting, O white)
Light Source Colour white
Mechanical Durability 1000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width 30 mm
Depth 59 mm
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross JIS No 1
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Width 30 mm
Height 50 mm
Weight 0.066 kg
Range Of Product Harmony XB5
Light Source protected LED
Mounting Diameter 22 mm
Type Of Operator spring return
Operators Description green ''I'' - red ''O''
Product Or Component Type illuminated double-headed push-button
Shape Of Signaling Unit Head rectangular
Fixing Collar Material plastic
Operator Profile 1 flush - 1 projecting push-buttons - 1 central pilot light
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
  • spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Bezel Material dark grey plastic
Contact Operation slow-break
Device Short Name XB5
[Us] Rated Supply Voltage 110...120 V AC 50/60 Hz
Bulb Base integral LED
