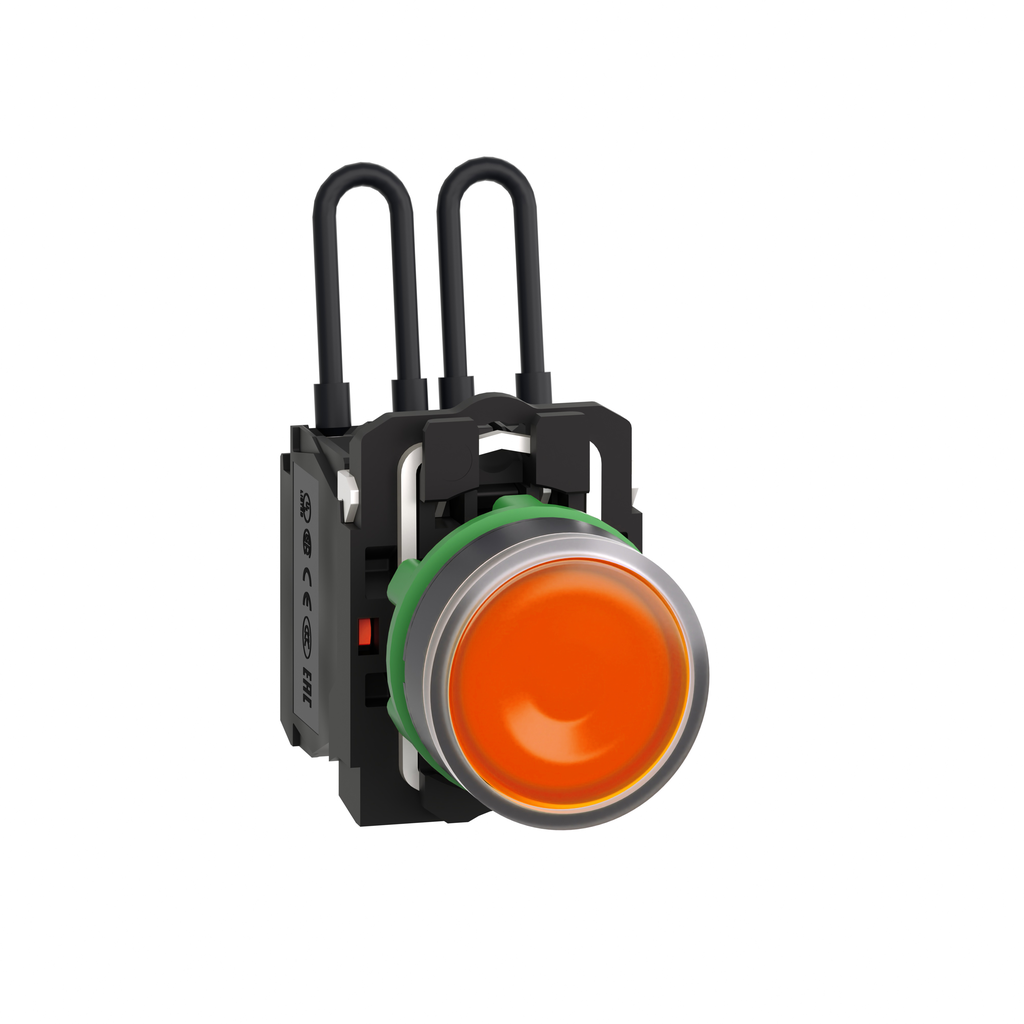

XB5AW25B5
Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V
This Harmony XB5, push-to-test pilot light orange is supplied with 24V AC/DC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK05 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Eu Rohs Directive | Under investigation |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Height | 42 mm |
| Embedding Depth | 46 mm |
| Light Source | universal LED |
| Mounting Diameter | 22.5 mm |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | orange |
| Net Weight | 0.047 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Current Consumption | 18 mA |
| Fixing Collar Material | plastic |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals |
|
| Service Life | 1.5 year(s) |
| Surge Withstand | 1 kV |
| Sale Per Indivisible Quantity | 1 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Signalling Type | steady |
| Light Source Colour | orange |
| Width | 30 mm |
| Depth | 55 mm |
| Tightening Torque | 0.8-1.2 N.m |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Country of Origin | France |
| Width | 30 mm |
| Height | 42 mm |
| Weight | 0.047 kg |
| Range Of Product | Harmony XB5 |
| Product Or Component Type | push-to-test pilot light |
| Bezel Material | plastic |
| Device Short Name | XB5 |
