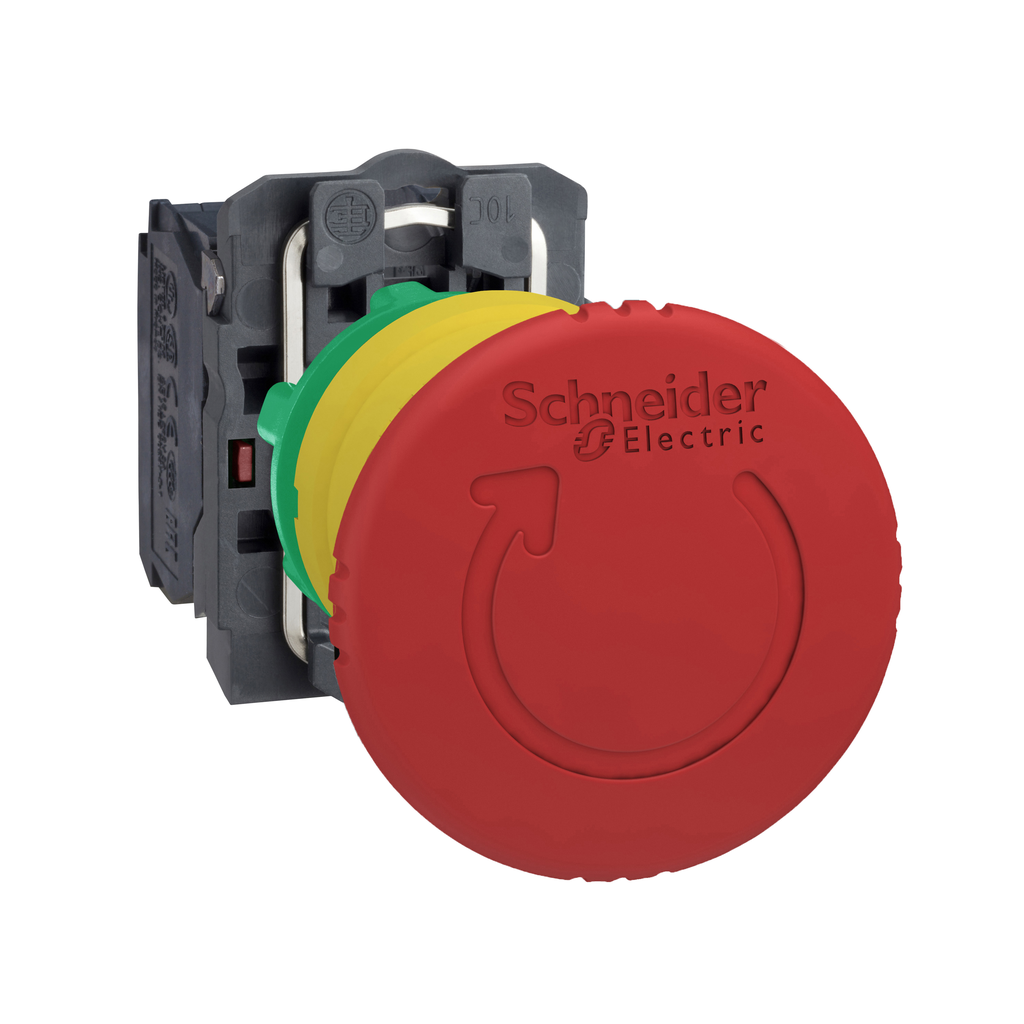

Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC and 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK03 conforming to IEC 60068-2-75 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308012EN |
| Eu Rohs Directive | Compliant |
| Contacts Usage |
|
| Height | 43 mm |
| Operating Force | 47 N |
| Short-Circuit Protection | 6 A cartridge fuse gG IEC 60947-5-1 |
| Fixing Mode | fixing nut 2.2 N.m +/- 0.2) |
| Operating Travel |
|
| Contacts Material |
|
| Positive Opening | with IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 6 A IEC 60947-5-1 |
| Net Weight | 0.059 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 300 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 300000 cycles |
| Electrical Reliability |
|
| Width | 40 mm |
| Depth | 85 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Shape Of Screw Head |
|
| Device Mounting | fixing hole 22.5 mm +/- 0.2 mm |
| Country of Origin | Czechia |
| Width | 40 mm |
| Height | 43 mm |
| Weight | 0.059 kg |
| Reset | turn to release |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Type Of Operator | trigger action and mechanical latching |
| Product Or Component Type |
|
| Shape Of Signaling Unit Head | round |
| Fixing Collar Material | plastic |
| Head Type | standard |
| Device Presentation | complete product |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Contact Operation | slow-break |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Device Short Name | XB5 |
