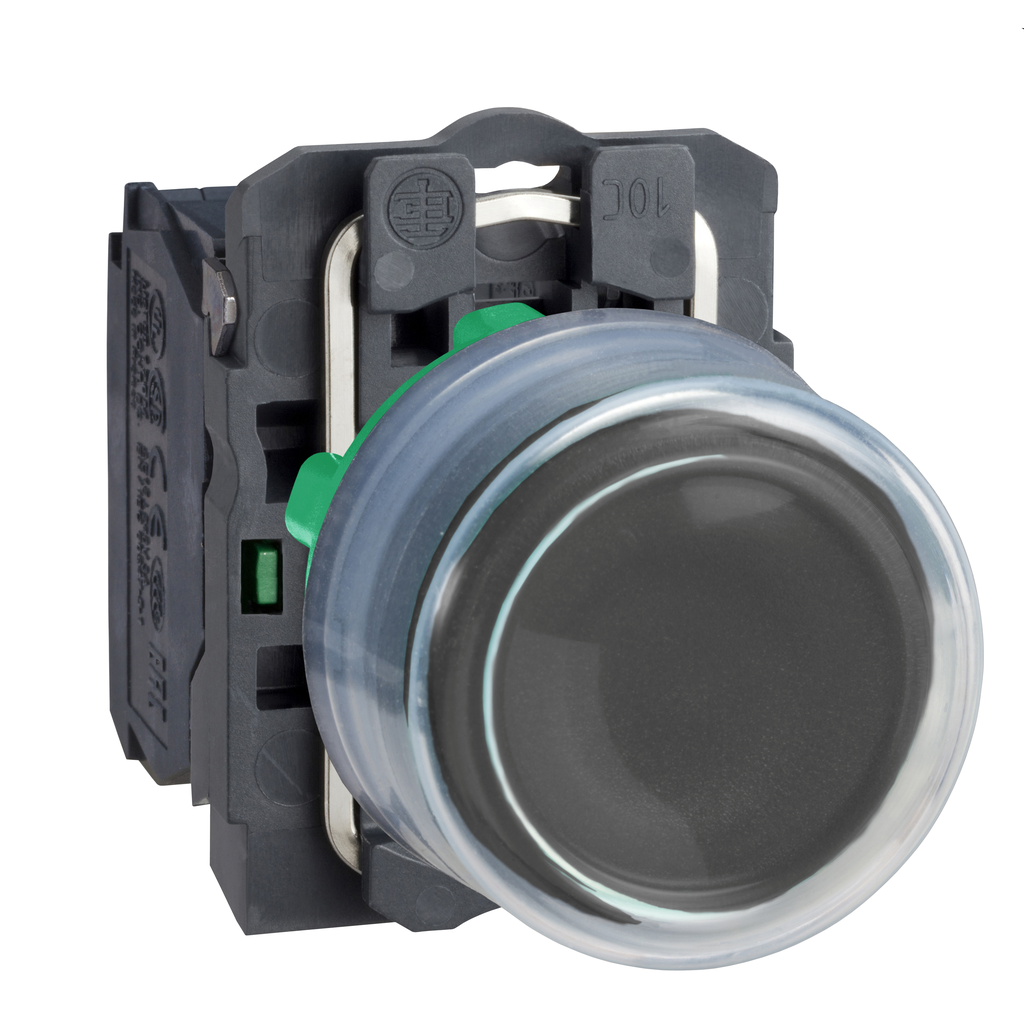

XB5AP21 – Push button, Harmony XB5, plastic, projecting, black, 22mm, spring return, booted, unmarked, 1NO
XB5AP21
Push button, Harmony XB5, plastic, projecting, black, 22mm, spring return, booted, unmarked, 1NO

This Harmony XB5, clear silicone booted modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This silicone booted push button provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • BV
  • CSA
  • LROS (Lloyds register of shipping)
  • DNV
  • RINA
  • GL
  • UL Listed
Ik Degree Of Protection IK03 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • IEC 60947-5-4
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class II IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2303008EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2303008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Height 42 mm
Terminals Description Iso N°1 (13-14)NO
Operating Force 3.8 N NO changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening without
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Net Weight 0.039 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Gcr Bridge XB5APCUST01
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical Durability
  • 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Mechanical Durability 10000000 cycles
Compatibility Code XB5
Customizable no
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width 30 mm
Depth 61 mm
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin Mexico
Width 30 mm
Height 42 mm
Weight 0.039 kg
Operator Additional Information clear boot
Range Of Product Harmony XB5
Mounting Diameter 22.5 mm
Type Of Operator spring return
Product Or Component Type push-button
Shape Of Signaling Unit Head round
Fixing Collar Material plastic
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO
Sale Per Indivisible Quantity 1
Bezel Material
  • plastic
  • dark grey plastic
Contact Operation slow-break
Operator Profile black projecting, unmarked
Product Compatibility not compatible with legend holder
Device Short Name XB5
