XB5AK125M5C0

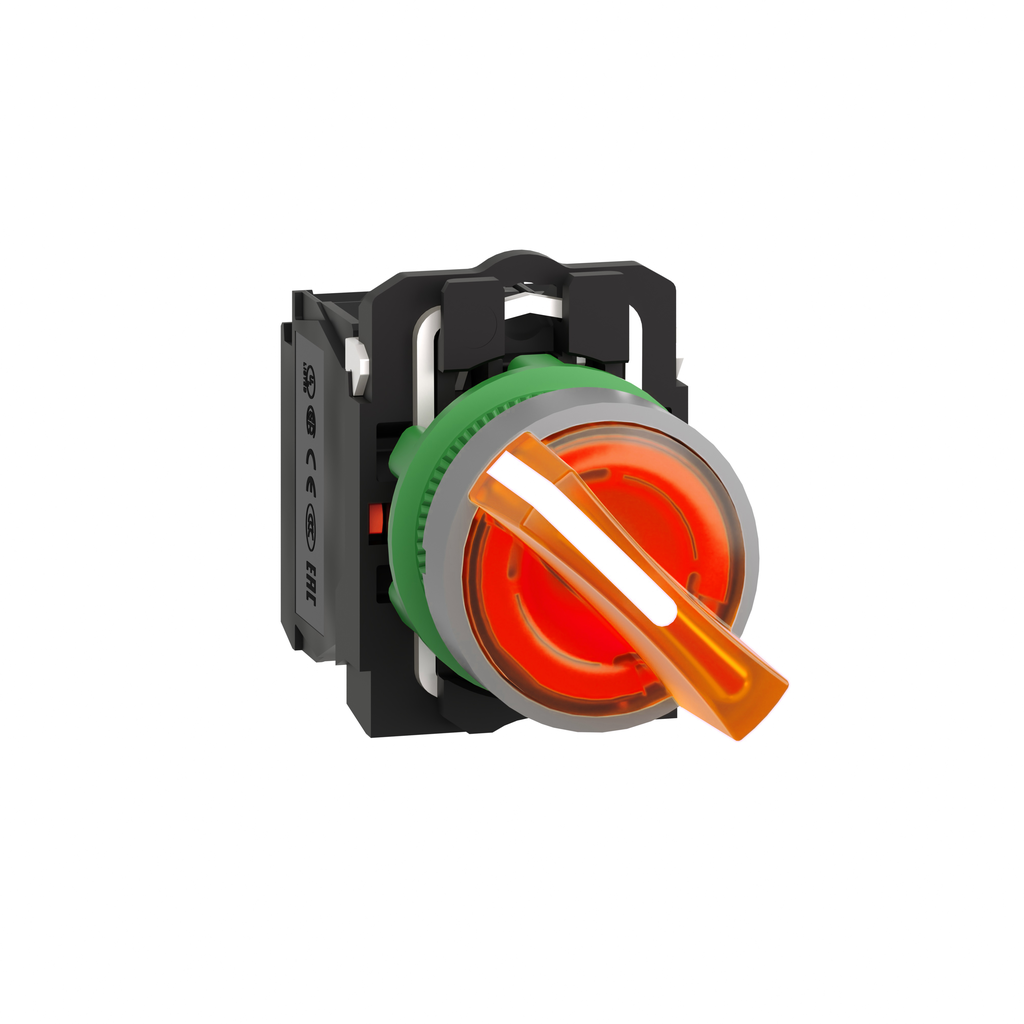

Illuminated selector switch, Harmony XB5, grey bezel, orange handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 230V AC
This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help to set up your machines in various operating modes, even in darker rooms with clear visual feedback.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK04 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Resistance To Electrostatic Discharge |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | class B IEC 55011 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Contacts Usage | standard contacts |
| Height | 42 mm |
| Terminals Description Iso N°1 |
|
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Contacts Material | silver alloy (Ag/Ni) |
| Light Source | universal LED |
| Positive Opening | with IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Net Weight | 0.516 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Current Consumption | 14 mA |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Electrical Durability |
|
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Signalling Type | steady |
| Operating Torque | 0.14 N.m NO changing electrical state |
| [Ie] Rated Operational Current |
|
| Supply Voltage Limits | 195-264 V AC |
| Mechanical Durability | 1000000 cycles |
| Electrical Reliability |
|
| Width | 30 mm |
| Depth | 70 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Shape Of Screw Head |
|
| Country of Origin | France |
| Width | 30 mm |
| Height | 42 mm |
| Weight | 0.516 kg |
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22.5 mm |
| Type Of Operator | stay put |
| Product Or Component Type | illuminated selector switch |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO + 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Contact Operation | slow-break |
| Operator Profile | orange standard handle |
| Operator Position Information | 2 positions 90° |
| Device Short Name | XB5 |
| [Us] Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| Bulb Base | integral LED |
