XB5AD25 – Selector switch, Harmony XB5, plastic, black, 22mm, 2 positions, stay put, 1NO 1NC
XB5AD25

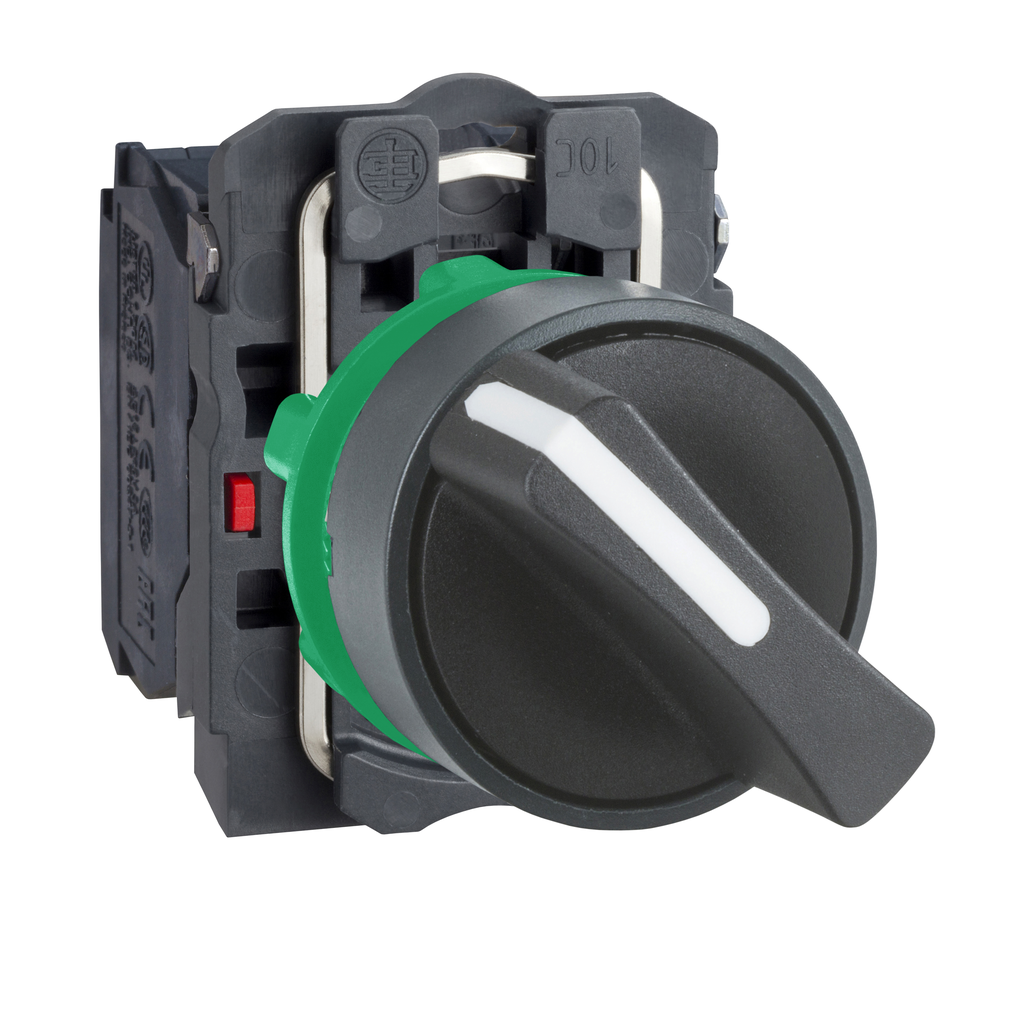

Selector switch, Harmony XB5, plastic, black, 22mm, 2 positions, stay put, 1NO+1NC

This Harmony XB5, modular black selector switch has 2 positions, operates with a stay-put mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL
  • LROS (Lloyds register of shipping)
  • DNV
  • BV
  • GL
  • CSA
Ik Degree Of Protection IK04 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • UL 508
  • IEC 60947-5-4
  • IEC 60947-1
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP67 IEC 60529
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Electrical Shock Protection Class class II IEC 60536
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2308008EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2308008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Height 42 mm
Terminals Description Iso N°1 (13-14)NO
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Net Weight 0.043 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability 1000000 cycles
Torque Value 0.14 N.m NO changing electrical state
Electrical Reliability
  • λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Width 30 mm
Depth 70 mm
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Width 30 mm
Height 42 mm
Weight 0.043 kg
Range Of Product Harmony XB5
Mounting Diameter 22.5 mm
Type Of Operator stay put
Product Or Component Type selector switch
Shape Of Signaling Unit Head round
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Sale Per Indivisible Quantity 1
Bezel Material dark grey plastic
Contact Operation slow-break
Operator Profile black standard handle
Operator Position Information 2 positions 90°
Device Short Name XB5
