XB5AA711237 – Triple headed push button, Harmony XB5, XB4, white flush, red projecting, black flush pushbutton, 22 mm, spring return, 2NO 1NC
XB5AA711237

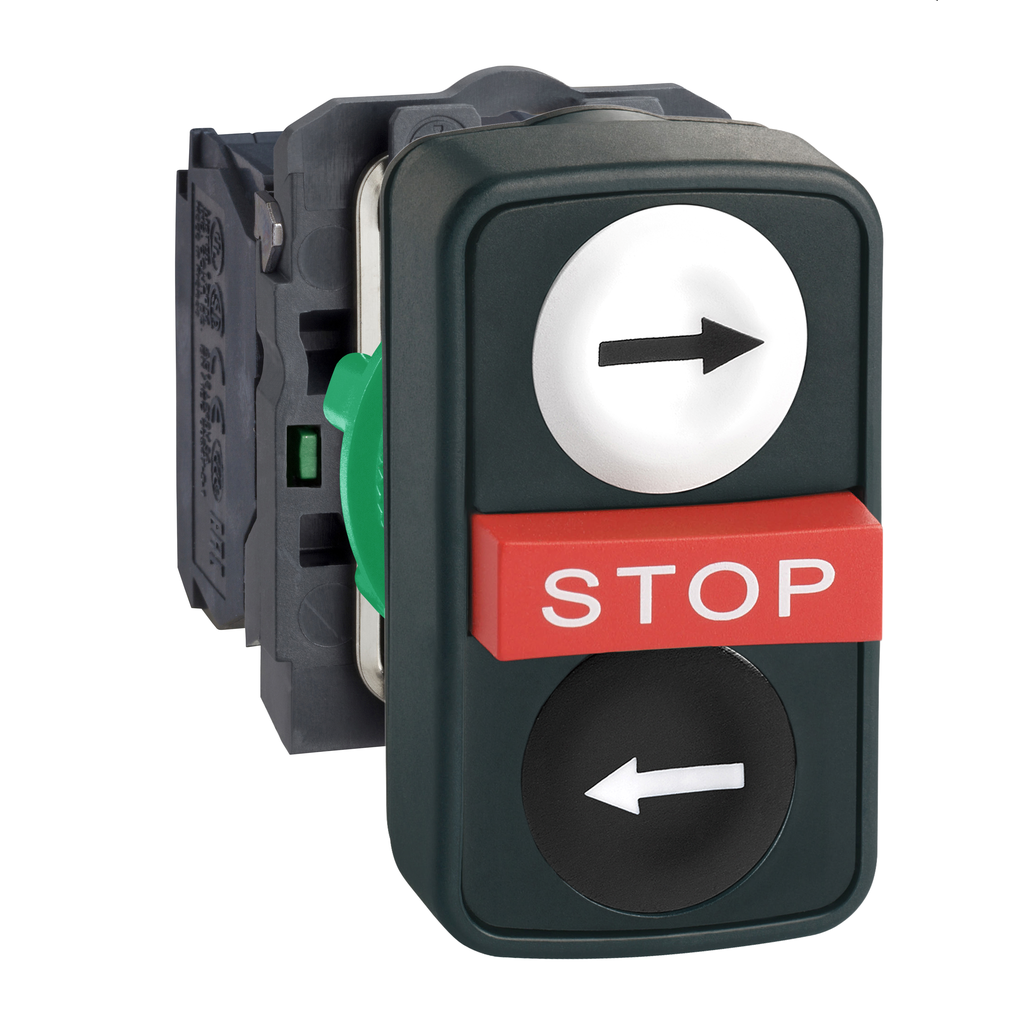

Triple headed push button, Harmony XB5, XB4, white flush, red projecting, black flush pushbutton, 22 mm, spring return, 2NO + 1NC

This Harmony XB5, triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "left arrow" and "right arrow" symbols. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • DNV
  • LROS (Lloyds register of shipping)
  • UL Listed
  • GL
  • BV
  • CSA
Ik Degree Of Protection IK03 conforming to IEC 50102
Ambient Air Temperature For Operation -25-70 °C
Standards
  • IEC 60947-5-4
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • UL 508
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP67 IEC 60529
  • IP69 IEC 60529
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Electrical Shock Protection Class class II IEC 61140
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2303008EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2303008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Colour Of Marking
  • black marking when white caps
  • white marking when green, red or black caps
Net Weight 0.063 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Operator Profile
  • red projecting, STOP white)
  • white flush, right arrow black)
  • black flush, left arrow white)
Mechanical Durability 1000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross JIS No 1
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Weight 0.063 kg
Range Of Product Harmony XB5
Mounting Diameter 22 mm
Type Of Operator spring return
Operators Description white ''right arrow'' - black ''left arrow'' - red ''STOP''
Product Or Component Type triple-headed push-button
Shape Of Signaling Unit Head rectangular
Fixing Collar Material plastic
Operator Profile 2 flush - 1 central projecting STOP push-buttons
Head Type standard
Device Presentation complete product
Connections - Terminals
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
  • spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition 2 NO + 1 NC
Bezel Material dark grey plastic
Contact Operation slow-break
Device Short Name XB5
