XB4RFA02
Wireless push button and configurable receiver, Harmony XB5R, Harmony XB4, with 10 colored caps, metal, 22mm, 24...240V AC DC

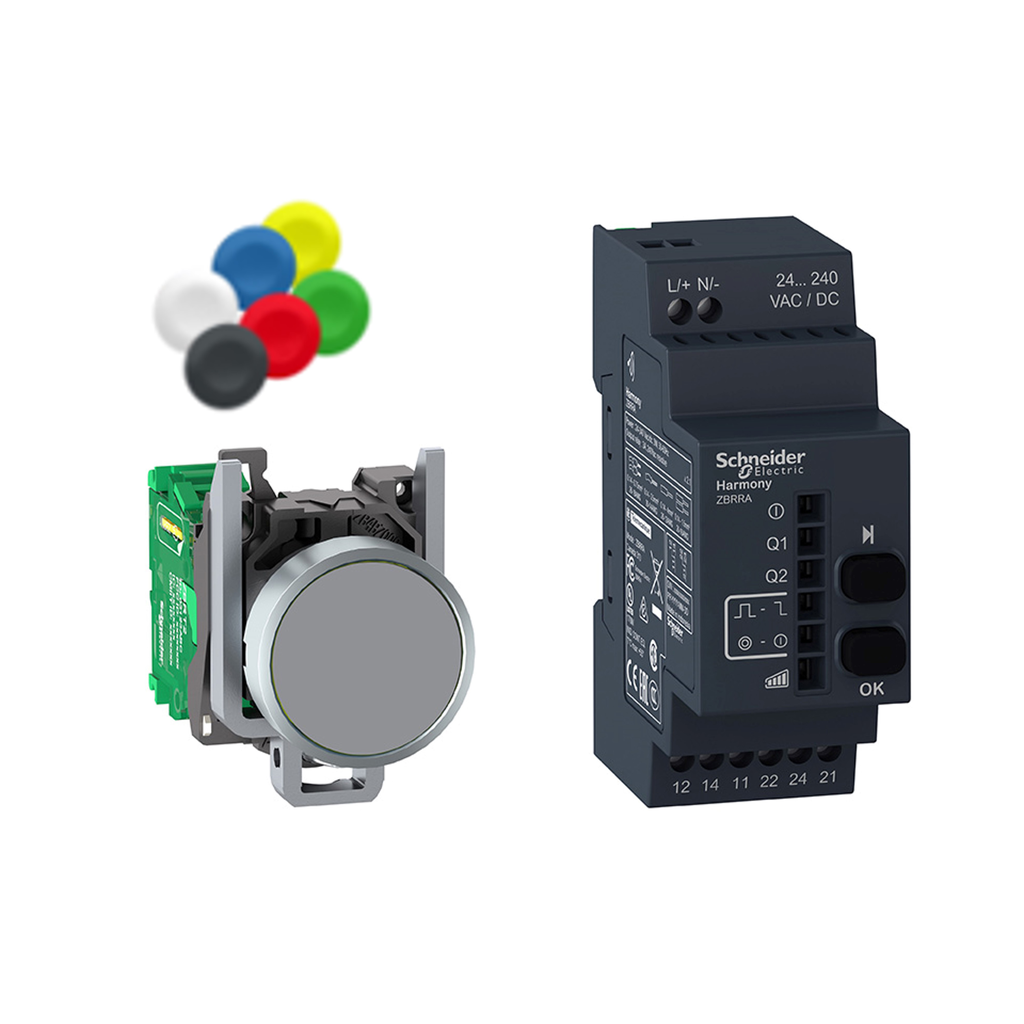

This Harmony XB4 flush wireless and batteryless push button and receiver unit set is supplied with a set of 10 colored caps and uses a 24V to 240V AC input. It has a metal bezel. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards |
|
| Marking | CE |
| Radio Agreement |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |
| Control Type | wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Modulation Technique | O-QPSK |
| Status Led |
|
| Kit Composition |
|
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Antenna Gain | 0 dBi |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Type Of Receiver | programmable receiver 2 relays) |
| Compatibility Code | XB4R |
| Customizable | no |
| Bandwidth | 5-5 MHz |
| Country of Origin | France |
| Antenna Type | omnidirectional |
| Range Of Product | Harmony XB4R |
| Product Or Component Type | wireless and batteryless package |
| Head Material | metal |
| Level Or Class | 5M00G7W |
| Device Short Name | XB4R |
| Transmission Frequency |
|
