XB4FW33G5 – Illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, plain lens, 1NO 1NC, 120V AC
XB4FW33G5

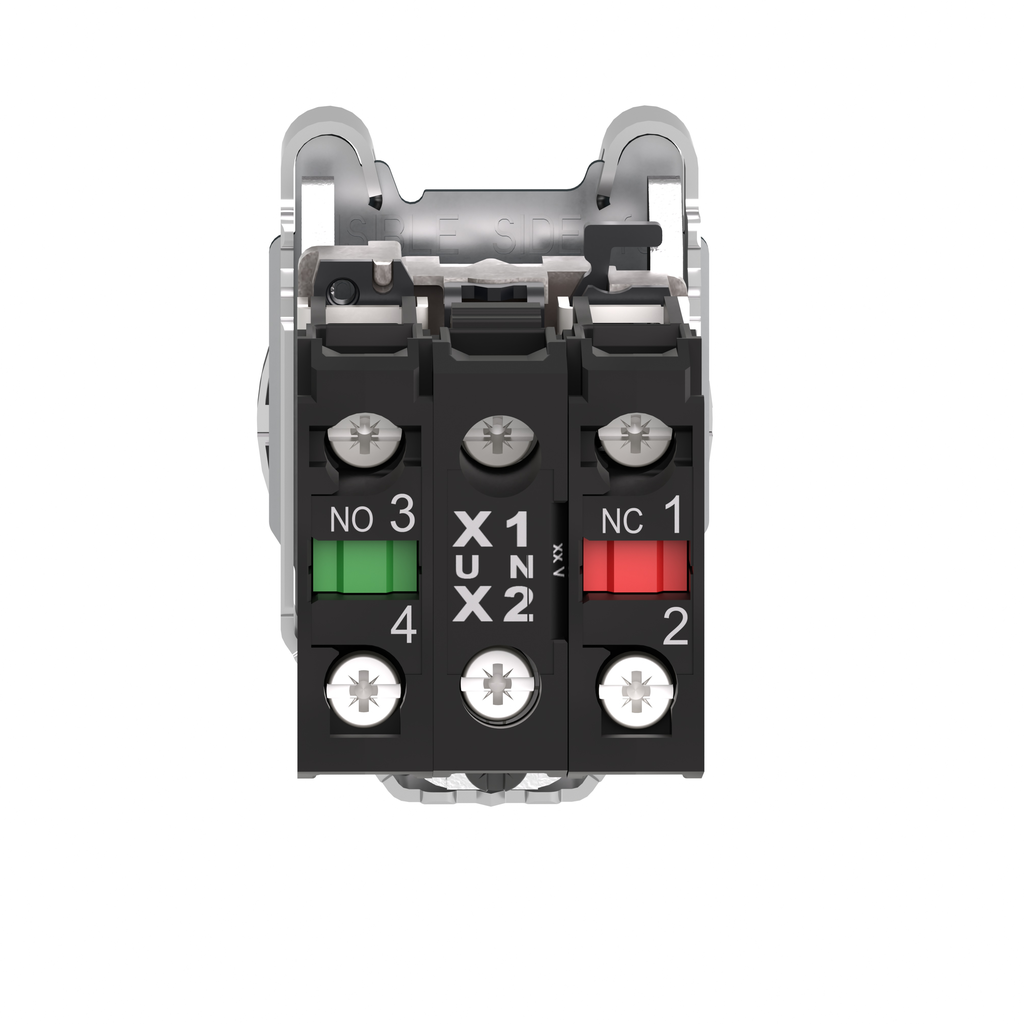

Illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 120V AC

This flush mounted illuminated pushbutton is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 120 V AC. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and green. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 132 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • CSA
  • CCC
  • EAC
Ik Degree Of Protection IK06 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Standards
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • CE
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance
  • 5 gn 10-500 Hz)IEC 60068-2-6
  • 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67 IEC 60529
  • IP69 IEC 60529
  • IP69K ISO 20653
  • Type 13 UL 50 E
  • Type 12 UL 50 E
  • Type 4 UL 50 E
  • Type 4X UL 50 E
Ambient Air Temperature For Storage -40-70 °C
Resistance To Electrostatic Discharge
  • 6 kV on contact (on metal parts) IEC 61000-4-2
  • 8 kV in free air (in insulating parts) IEC 61000-4-2
Electrical Shock Protection Class class I IEC 60536
Protective Treatment TH
Resistance To Fast Transients 2 kV IEC 61000-4-4
Electromagnetic Emission class B IEC 55011
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Important Message A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Contacts Usage standard contacts
Height 47 mm
Terminals Description Iso N°1
  • (13-14)NO
  • (21-22)NC
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Fixing Mode by screws 0.8 N.m
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Net Weight 0.132 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Current Consumption 14 mA
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Service Life 100000 h at rated voltage and 25 °C
Surge Withstand 1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
Signalling Type steady
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Supply Voltage Limits 100-132 V AC
Mechanical Durability 10000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width 36.6 mm
Depth 55 mm
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Device Mounting built-in
Country of Origin France
Width 36.6 mm
Height 47 mm
Weight 0.132 kg
Operator Additional Information with plain lens
Range Of Product Harmony XB4
Light Source universal LED
Mounting Diameter 30.5 mm
Type Of Operator spring return
Product Or Component Type illuminated push-button
Shape Of Signaling Unit Head round
Fixing Collar Material zamak
Head Type built-in-flush
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Sale Per Indivisible Quantity 1
Bezel Material chromium plated metal
Contact Operation slow-break
Operator Profile green flush
Device Short Name XB4F
[Us] Rated Supply Voltage 110...120 V AC 50/60 Hz
Bulb Base integral LED
