XB4FD33 - Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 3 positions, stay put, 2NO

XB4FD33

Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 3 positions, stay put, 2NO

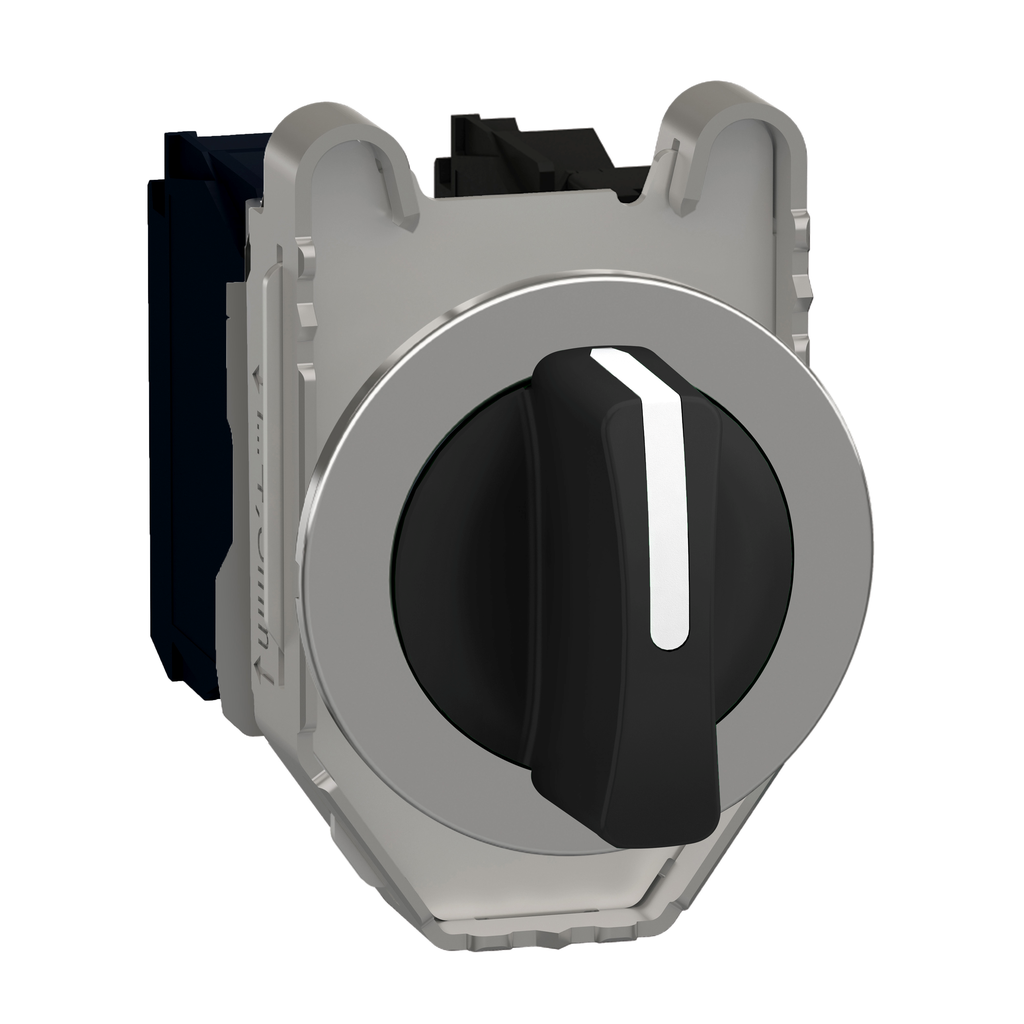

This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black standard handle with 3 positions ± 45 degree stay put. The contact type is 2NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 95 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL Listed CSA CCC EAC
Ambient Air Temperature For Operation	-40-70 °C
Standards	CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-5-4 UL 508 IEC 60947-1 JIS C8201-5-1 CE JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class I IEC 60536
Ik Degree Of Protection	IK04 conforming to IEC 50102
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage	standard contacts
Height	47 mm
Terminals Description Iso N°1	(23-24)NO (13-14)NO
Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Fixing Mode	by screws
Fixing Center	40 x 50 mm 1...6 mm thick panel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	without
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Net Weight	0.105 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Device Presentation	complete product
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability	1000000 cycles
Torque Value	0.14 N.m NO changing electrical state
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width	36.6 mm
Depth	70 mm
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Device Mounting	built-in
Country of Origin	France
Width	36.6 mm
Height	47 mm
Weight	0.105 kg
Range Of Product	Harmony XB4
Mounting Diameter	30.5 mm
Type Of Operator	stay put
Product Or Component Type	selector switch
Shape Of Signaling Unit Head	round
Fixing Collar Material	zamak
Head Type	built-in-flush
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition	2 NO
Sale Per Indivisible Quantity	1
Bezel Material	chromium plated metal
Contact Operation	slow-break
Operator Profile	black standard handle
Operator Position Information	3 positions +/- 45°
Device Short Name	XB4F
