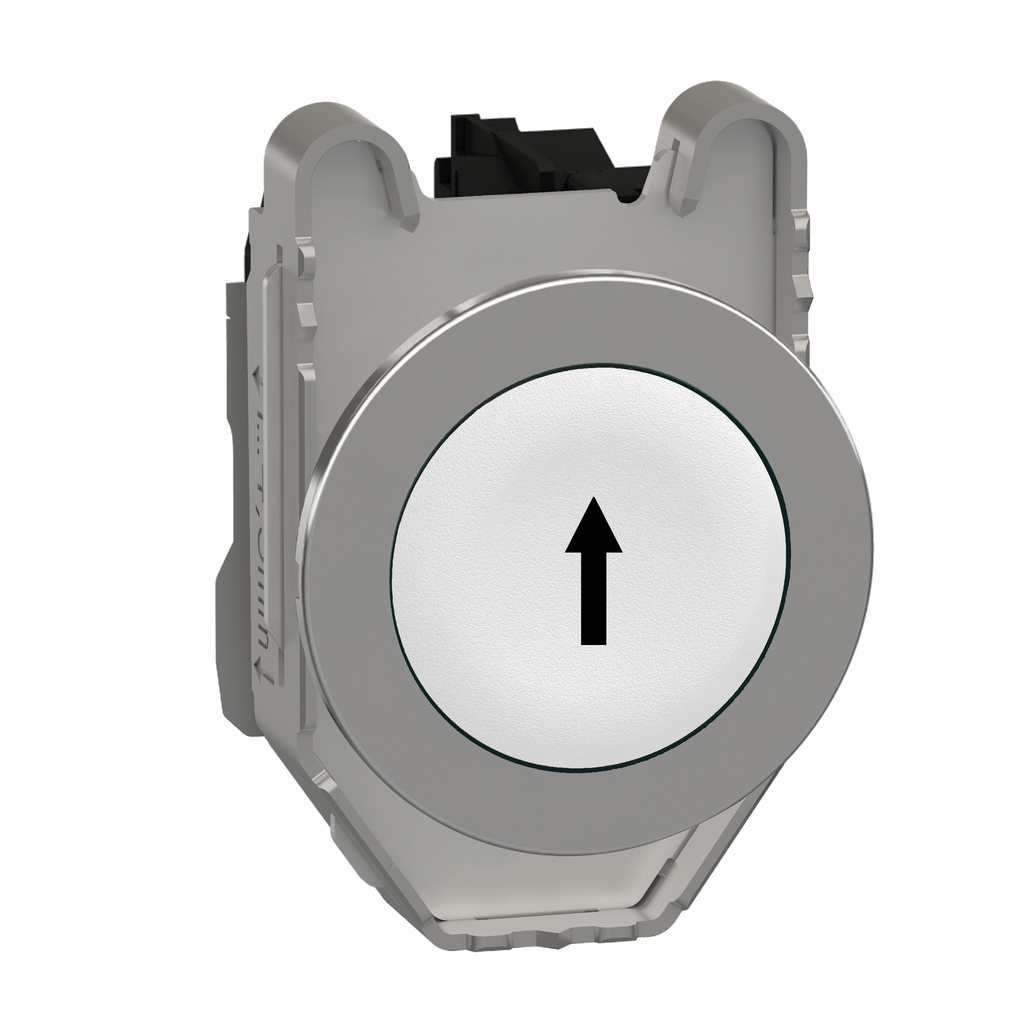

XB4FA3341 – Push button flush mounted, Harmony XB4, metal, whit,e 30mm, spring return, marked UP ARROW, 1NO
XB4FA3341
Push button flush mounted, Harmony XB4, metal, whit,e 30mm, spring return, marked UP ARROW, 1NO

This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has an UP ARROW marking in black. Customized marking option is also available through web customization tool in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and white. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • CSA
Ik Degree Of Protection IK06 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class I IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Height 47 mm
Terminals Description Iso N°1 (13-14)NO
Operating Force 3.8 N NO changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Fixing Mode by screws
Operating Travel
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening without
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Net Weight 0.116 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability 10000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width 36.6 mm
Depth 55 mm
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Device Mounting built-in
Country of Origin France
Width 36.6 mm
Height 47 mm
Weight 0.116 kg
Range Of Product Harmony XB4
Mounting Diameter 30.5 mm
Type Of Operator spring return
Product Or Component Type push-button
Shape Of Signaling Unit Head round
Fixing Collar Material zamak
Head Type built-in-flush
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO
Sale Per Indivisible Quantity 1
Bezel Material chromium plated metal
Contact Operation slow-break
Operator Profile white flush, up arrow black)
Product Compatibility
  • ZBYF...
  • ZBZF32
  • ZBZF33
Device Short Name XB4F
