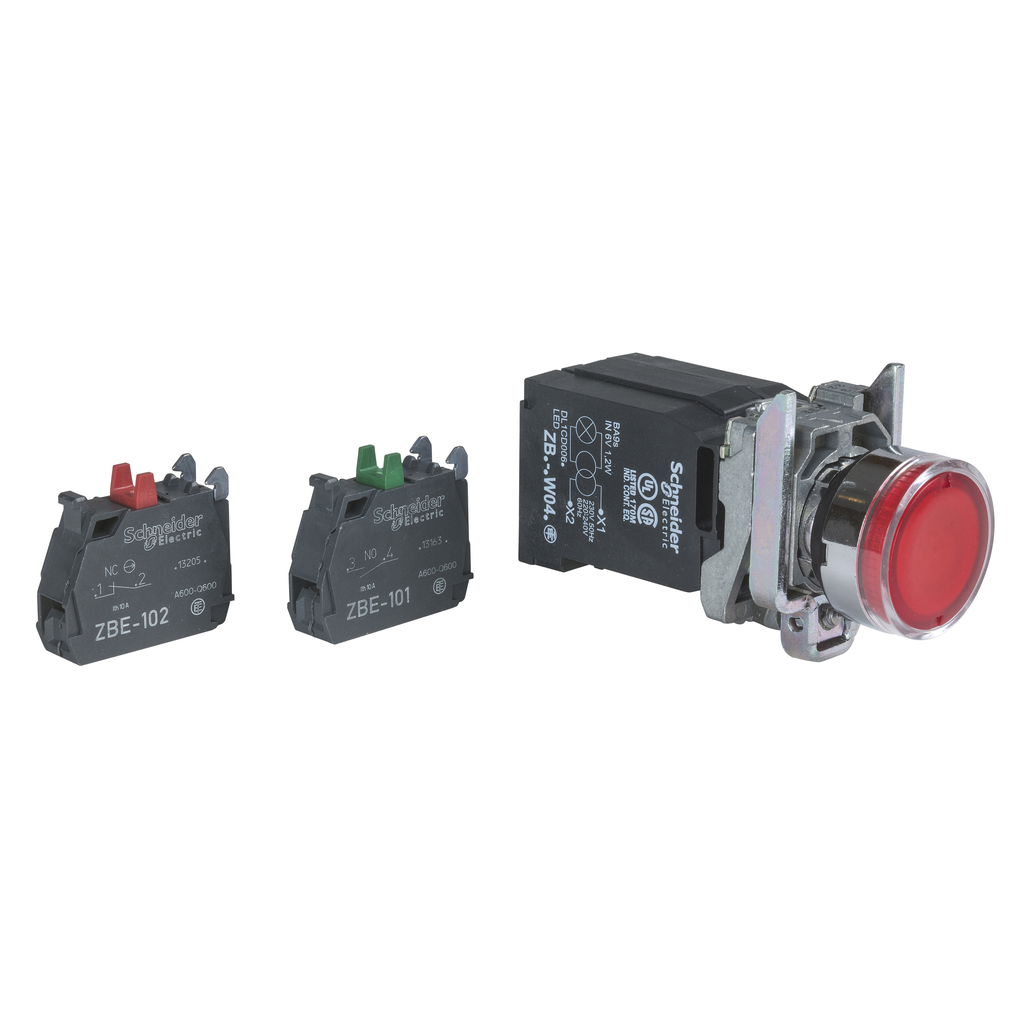

XB4BW3445 – illuminated push button, Harmony XB4, red, 22mm, spring return, 1NO 1NC, 220…240 V
XB4BW3445
illuminated push button, Harmony XB4, red, 22mm, spring return, 1NO+1NC, 220...240 V

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base and LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • GL
  • CSA
  • DNV
  • UL Listed
  • LROS (Lloyds register of shipping)
  • BV
Ik Degree Of Protection IK06 conforming to IEC 50102
Ambient Air Temperature For Operation -40-55 °C
Standards
  • IEC 60947-1
  • JIS C8201-5-1
  • UL 508
  • IEC 60947-5-5
  • IEC 60947-5-4
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Electrical Shock Protection Class class I IEC 60536
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Height 47 mm
Terminals Description Iso N°1
  • (13-14)NO
  • (21-22)NC
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Net Weight 0.17 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
Signalling Type steady
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability 10000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width 30 mm
Depth 101 mm
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin Czechia
Width 30 mm
Height 47 mm
Weight 0.17 kg
Operator Additional Information with plain lens
Range Of Product Harmony XB4
Light Source incandescent
Light Block Supply via integral transformer 1.2 VA 6 V
Mounting Diameter 22.5 mm
Type Of Operator spring return
Product Or Component Type illuminated push-button
Shape Of Signaling Unit Head round
Fixing Collar Material zamak
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Sale Per Indivisible Quantity 1
Bezel Material chromium plated metal
Contact Operation slow-break
Operator Profile red flush
Device Short Name XB4
[Us] Rated Supply Voltage 220...240 V AC 50/60 Hz
Bulb Base BA 9s
