XB4BW25B5

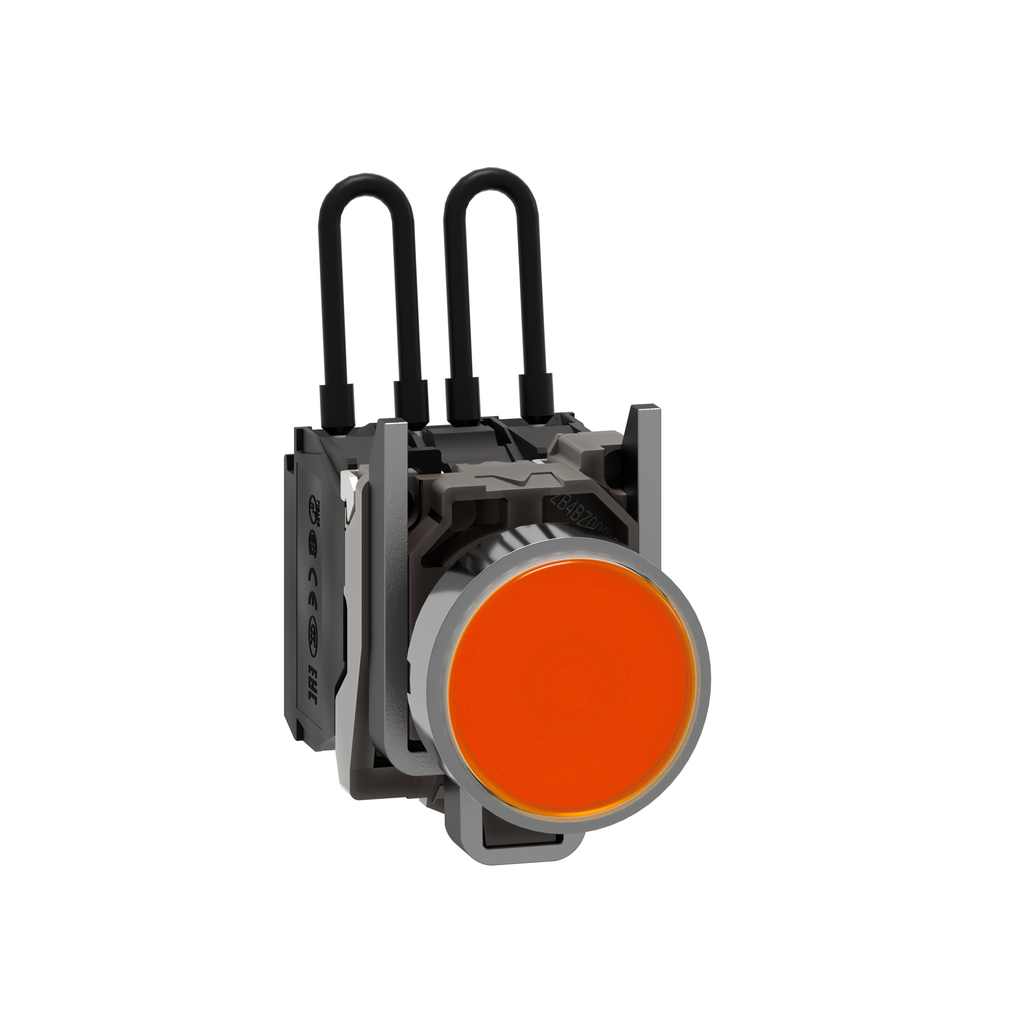

Push-to-test pilot light, Harmony XB4, metal, orange, universal LED, screw clamp terminals, 24V
This Harmony XB4 plain lens push to test modular orange pilot light is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK05 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant with Exemptions |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Height | 42 mm |
| Embedding Depth | 43 mm |
| Light Source | universal LED |
| Mounting Diameter | 22.5 mm |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | orange |
| Net Weight | 0.09 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Current Consumption | 18 mA |
| Fixing Collar Material | metal |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals |
|
| Service Life | 1.5 year(s) |
| Surge Withstand | 1 kV |
| Sale Per Indivisible Quantity | 1 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Signalling Type | steady |
| Light Source Colour | orange |
| Width | 30 mm |
| Depth | 55 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Country of Origin | France |
| Width | 30 mm |
| Height | 42 mm |
| Weight | 0.09 kg |
| Range Of Product | Harmony XB4 |
| Product Or Component Type | push-to-test pilot light |
| Bezel Material | metal |
| Device Short Name | XB4 |
