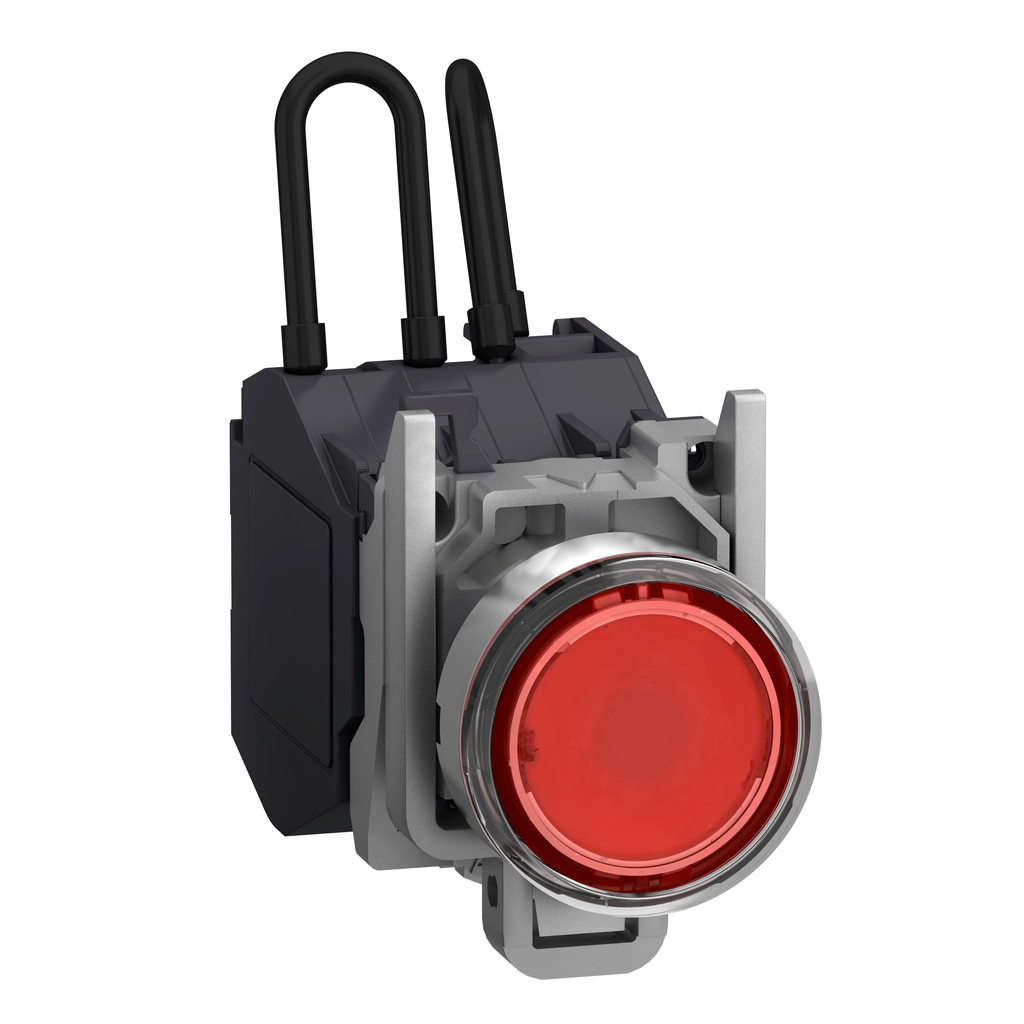

Push to test pilot light, Harmony XB4, Explosive atmosphere, 24...254V, Red
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This push-to-test pilot light has a circular head shape and comes with integral red LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pilot light with plain lens provides clear visual feedback on the status of machines. It comes with 1 NO contact with slow-break operation. This pilot light has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | 24...254 V AC/DC |
|---|---|
| Height | 30 mm |
| Operator Additional Information | booted (clear silicon) |
| Operating Force | 3.962 N |
| Embedding Depth | 58 mm |
| Fixing Center | >= 30 x 40 mm support panel) 1-6 mm |
| Operating Travel |
|
| Light Source | integral LED |
| Positive Opening | without |
| Mounting Diameter | 22 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Shape Of Signaling Unit Head | round |
| Marking |
|
| Cap/Operator Or Lens Colour | red |
| Net Weight | 0.117 kg |
| Current Consumption | 2...10 mA |
| Fixing Collar Material | zamak |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO |
| Service Life | 100000 h |
| Sale Per Indivisible Quantity | 1 |
| [Ui] Rated Insulation Voltage | 415 V |
| Signalling Type | steady |
| [Ie] Rated Operational Current |
|
| Contact Operation | slow-break |
| Mechanical Durability | 5000000 cycles |
| Width | 46.2 mm |
| Depth | 72 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Device Mounting | fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1 |
| Country of Origin | France |
| Width | 46.2 mm |
| Height | 30 mm |
| Weight | 0.117 kg |
| Range Of Product | Harmony XB4 |
| Product Or Component Type | push-to-test pilot light |
| Bezel Material | chromium plated metal |
| Device Short Name | XB4 |
| Product Certifications | INERIS 04ATEX9004U |
| Ambient Air Temperature For Operation | -20-75 °C |
| Dust Zone | zone 21 - 22 |
| Standards |
|
| Ip Degree Of Protection | IP66 IEC 60529 |
| Gas Zone | zone 1 - 2 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | I IEC 60536 |
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
