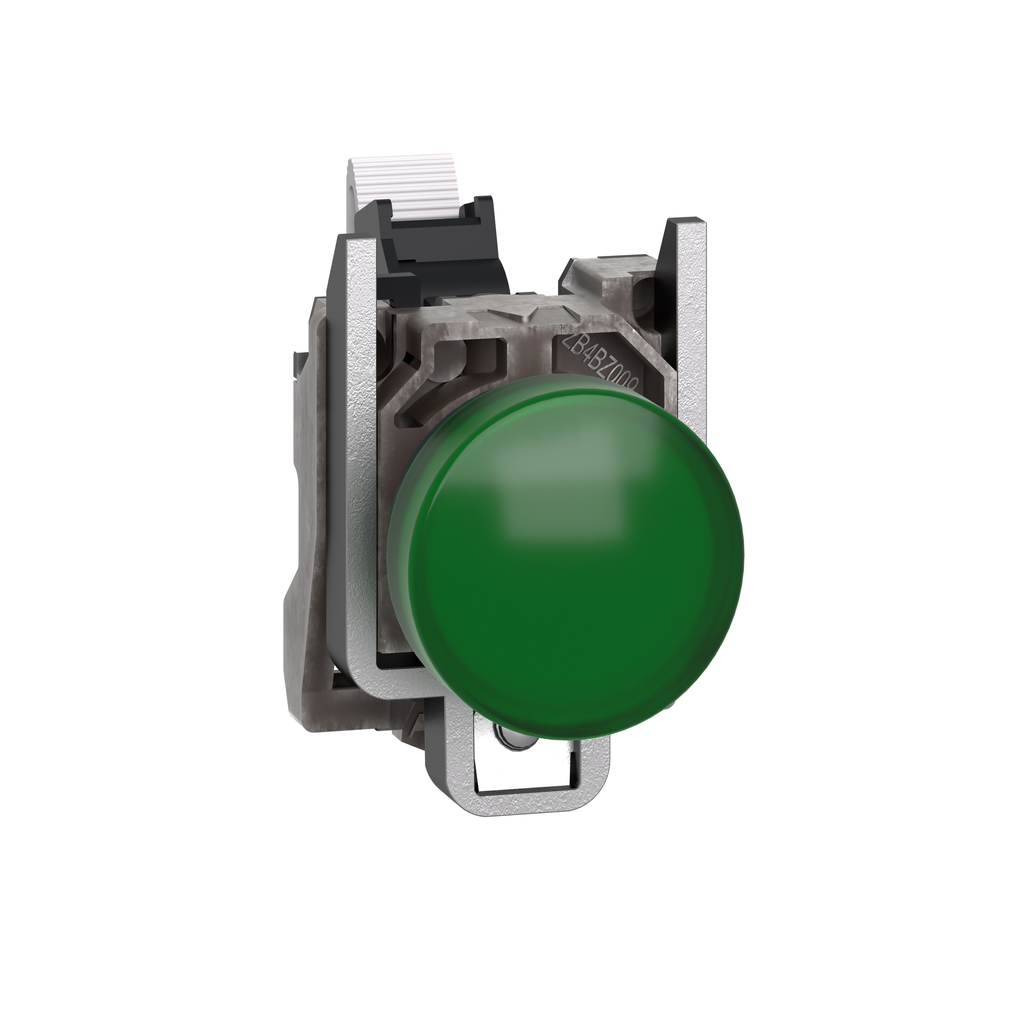

XB4BVG35
Pilot light, Harmony XB4, protected LED light, green, 22mm, with plain lens, universal LED, 110…120V
This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments High performance International standards & certifications ( Marine certification, IP65, Type 13 and 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK06 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Resistance To Electrostatic Discharge |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
| Electromagnetic Emission | class B IEC 55011 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308026EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308026EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Height | 47 mm |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Net Weight | 0.076 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Current Consumption | 14 mA |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals |
|
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Signalling Type | steady |
| Supply Voltage Limits | 100-132 V AC |
| Width | 30 mm |
| Depth | 77.2 mm |
| Country of Origin | Mexico |
| Width | 30 mm |
| Height | 47 mm |
| Weight | 0.076 kg |
| [Us] Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB4 |
| Light Source | universal LED |
| Mounting Diameter | 22.5 mm |
| Product Or Component Type | pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Light Source Colour | green |
| Device Short Name | XB4 |
| Bulb Base | integral LED |
