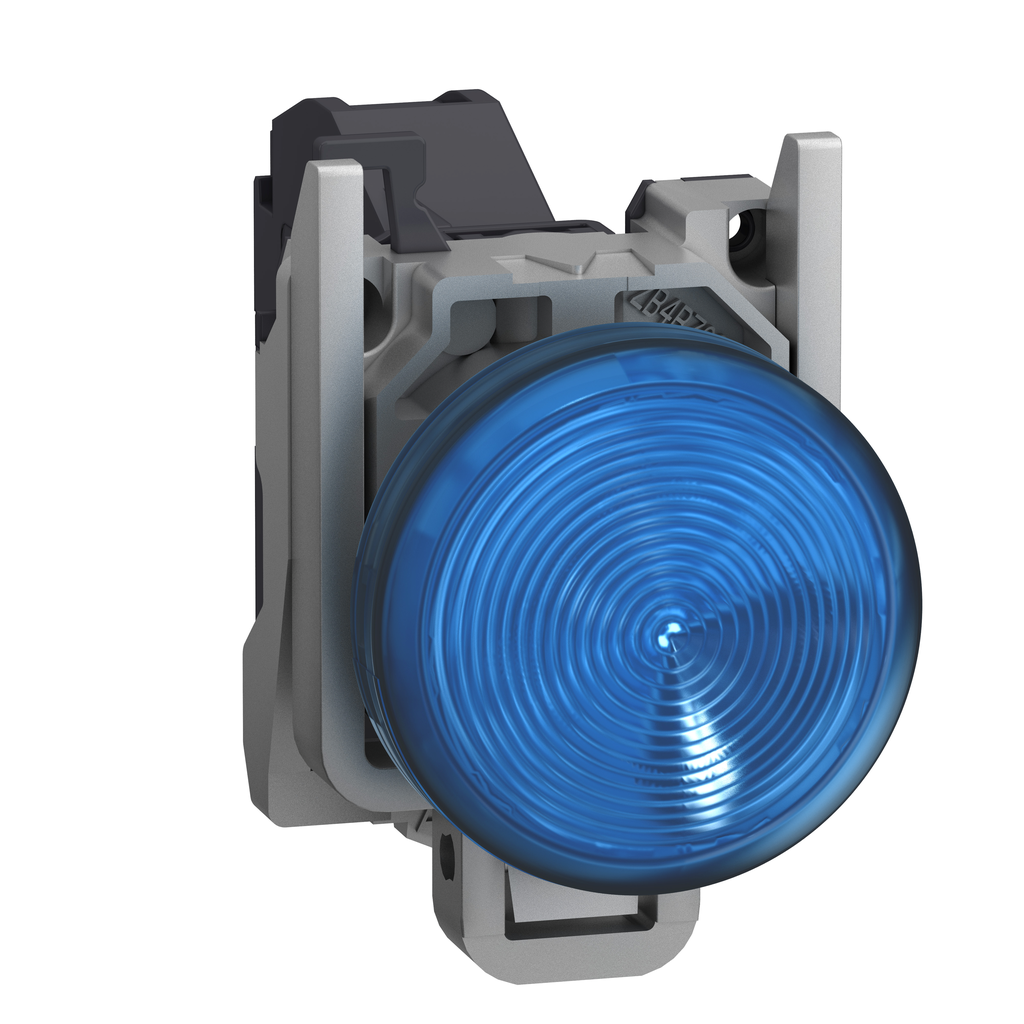

Complete pilot light, Harmony XB4, Explosive atmosphere, blue LED, 24...254V
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral blue LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | 24...254 V AC/DC |
|---|---|
| Height | 30 mm |
| Embedding Depth | 58 mm |
| Fixing Center | >= 30 x 40 mm support panel) 1-6 mm |
| Light Source | integral LED |
| Shape Of Signaling Unit Head | round |
| Marking |
|
| Cap/Operator Or Lens Colour | blue |
| Net Weight | 0.083 kg |
| Connections - Terminals |
|
| Service Life | 100000 h |
| Signalling Type | steady |
| Light Source Colour | white |
| Width | 46.2 mm |
| Depth | 69 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Device Mounting | fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | INERIS 04ATEX9003U |
| Ambient Air Temperature For Operation | -20-75 °C |
| Standards |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | I IEC 60536 |
| Protective Treatment | TH |
| Country of Origin | United States |
| Width | 46.2 mm |
| Height | 30 mm |
| Weight | 0.083 kg |
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB4 |
| Dust Zone | zone 21 - 22 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | complete pilot light |
| Fixing Collar Material | zamak |
| Gas Zone | zone 1 - 2 |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Device Short Name | XB4 |
