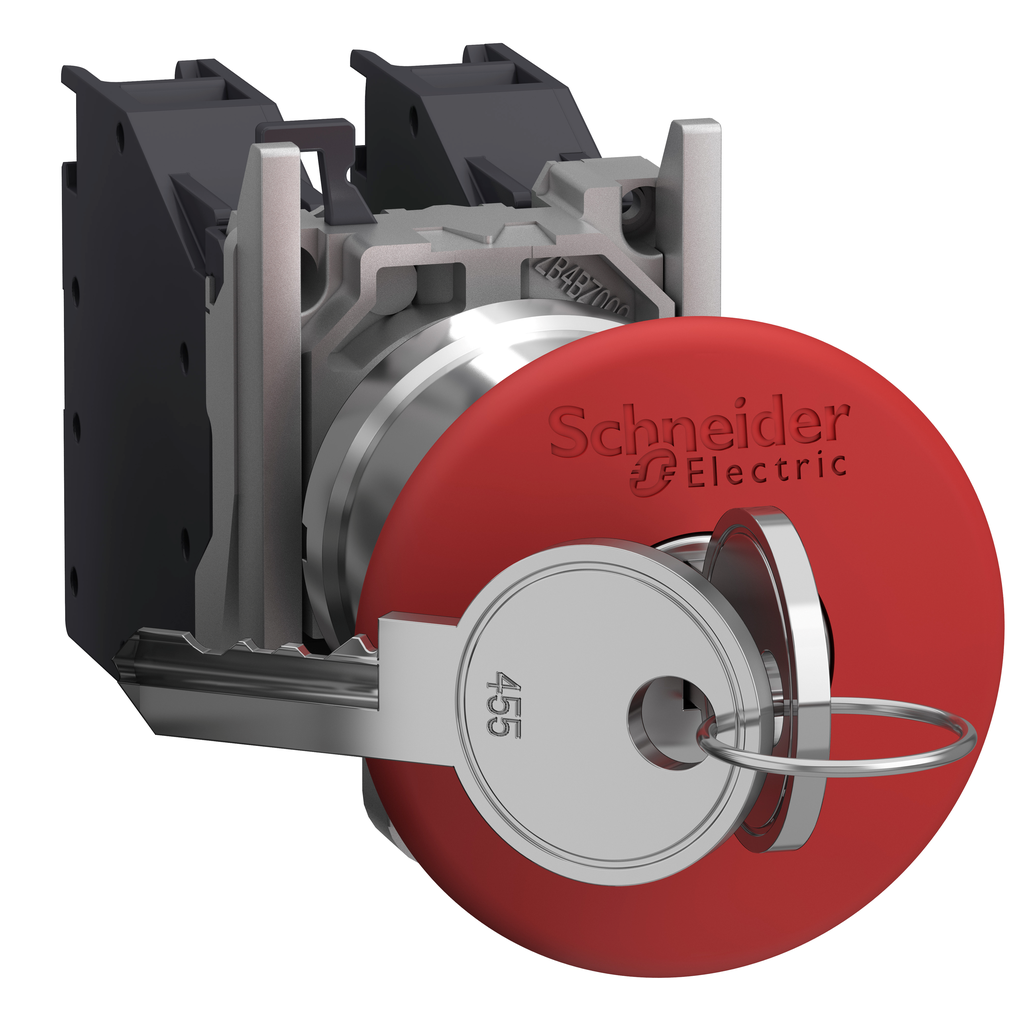

Complete emergency stop push button, Harmony XB4, Explosive atmosphere, 455 key RELEASE
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This emergency switching off pusbutton comes with a mushroom head and key number 455. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It comes with trigger action and mechanical latching and key release operation. It has 1 NO and 1 NC contact with slow-break operation. This is a metal emergency stop pushbutton with a 40mm diameter mushroom head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | INERIS 04ATEX9004U |
|---|---|
| Ambient Air Temperature For Operation | -20-65 °C |
| Standards |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
| Contacts Usage | standard |
| Height | 30 mm |
| Embedding Depth | 58 mm |
| Fixing Center | >= 30 x 40 mm support panel) 1-6 mm |
| Positive Opening | with IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Shape Of Signaling Unit Head | round |
| Marking |
|
| Net Weight | 0.168 kg |
| Key Withdrawal Position | center |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 415 V |
| [Ie] Rated Operational Current |
|
| Contact Operation | slow-break |
| Mechanical Durability | 5000000 cycles |
| Width | 46.2 mm |
| Depth | 119.5 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Device Mounting | fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1 |
| Country of Origin | France |
| Width | 46.2 mm |
| Height | 30 mm |
| Weight | 0.168 kg |
| Reset | key release |
| Key Number | 455 |
| Range Of Product | Harmony XB4 |
| Dust Zone | zone 21 - 22 |
| Mounting Diameter | 22 mm |
| Type Of Operator | trigger action and mechanical latching |
| Product Or Component Type | complete emergency stop push-button |
| Fixing Collar Material | zamak |
| Gas Zone | zone 1 - 2 |
| Contacts Type And Composition | 1 NO + 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Operator Profile | red mushroom Ø 40 mm |
| Device Short Name | XB4 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
