XB4BL734155

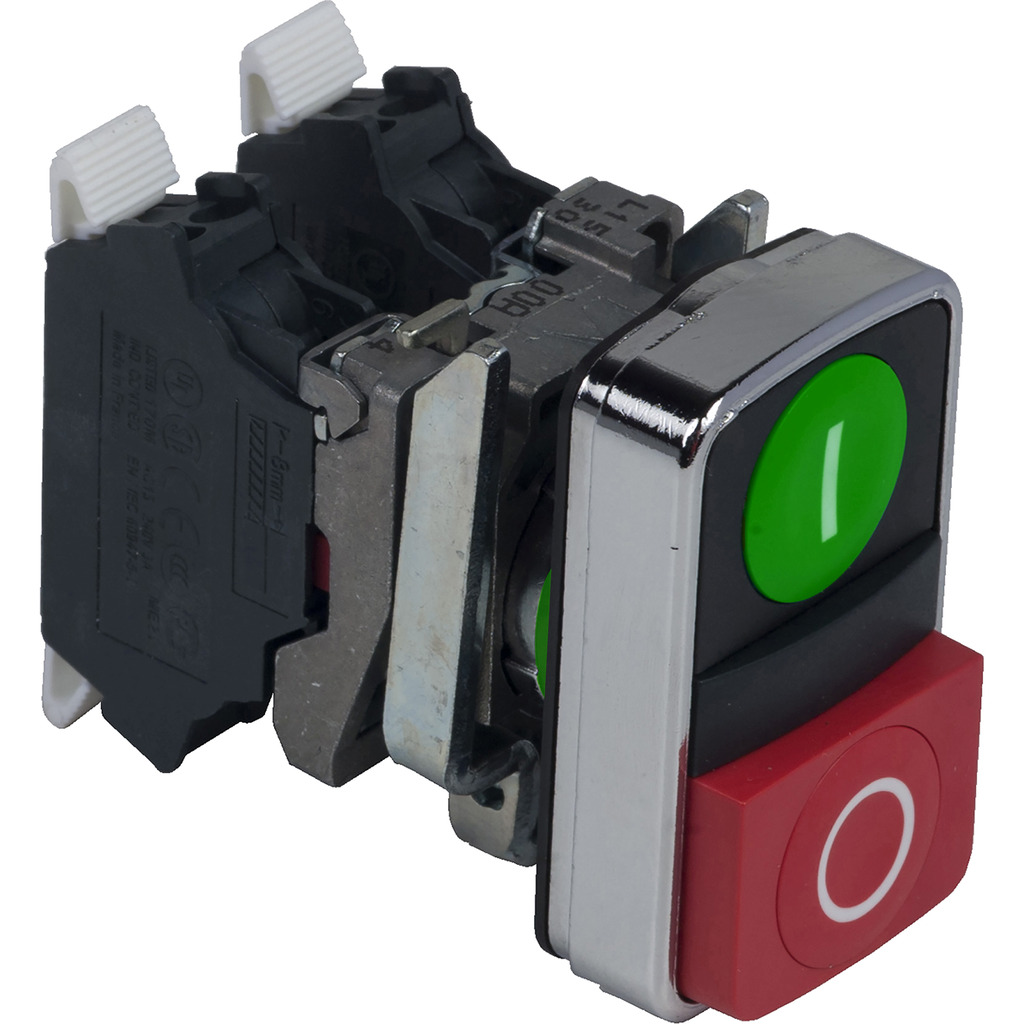

Double headed push button, Harmony XB4, illuminated pushbutton, green flush, red projecting, 22mm, 1NO + 1NC
This double-headed push-button provides a complete 2 buttons interface to your machines with a single panel cut-out Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections High performance International standards & certifications ( Marine certification, IP65, Type 4, 13 and 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK06 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308035EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Contacts Usage | standard contacts |
| Height | 50 mm |
| Operating Force |
|
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | with IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Colour Of Marking |
|
| Net Weight | 0.116 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current | 10 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Operator Profile |
|
| Mechanical Durability | 1000000 cycles |
| Width | 30 mm |
| Depth | 59 mm |
| Country of Origin | United States |
| Width | 30 mm |
| Height | 50 mm |
| Weight | 0.116 kg |
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22.5 mm |
| Type Of Operator | spring return |
| Operators Description | green ''I'' - red ''O'' |
| Product Or Component Type | double-headed push-button |
| Shape Of Signaling Unit Head | rectangular |
| Fixing Collar Material | zamak |
| Operator Profile | 1 flush - 1 projecting push-buttons |
| Head Type | standard |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO + 1 NC |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Device Short Name | XB4 |
