XB4BL73415 – Double headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I 1 red projecting marked O, 1NO 1NC
XB4BL73415

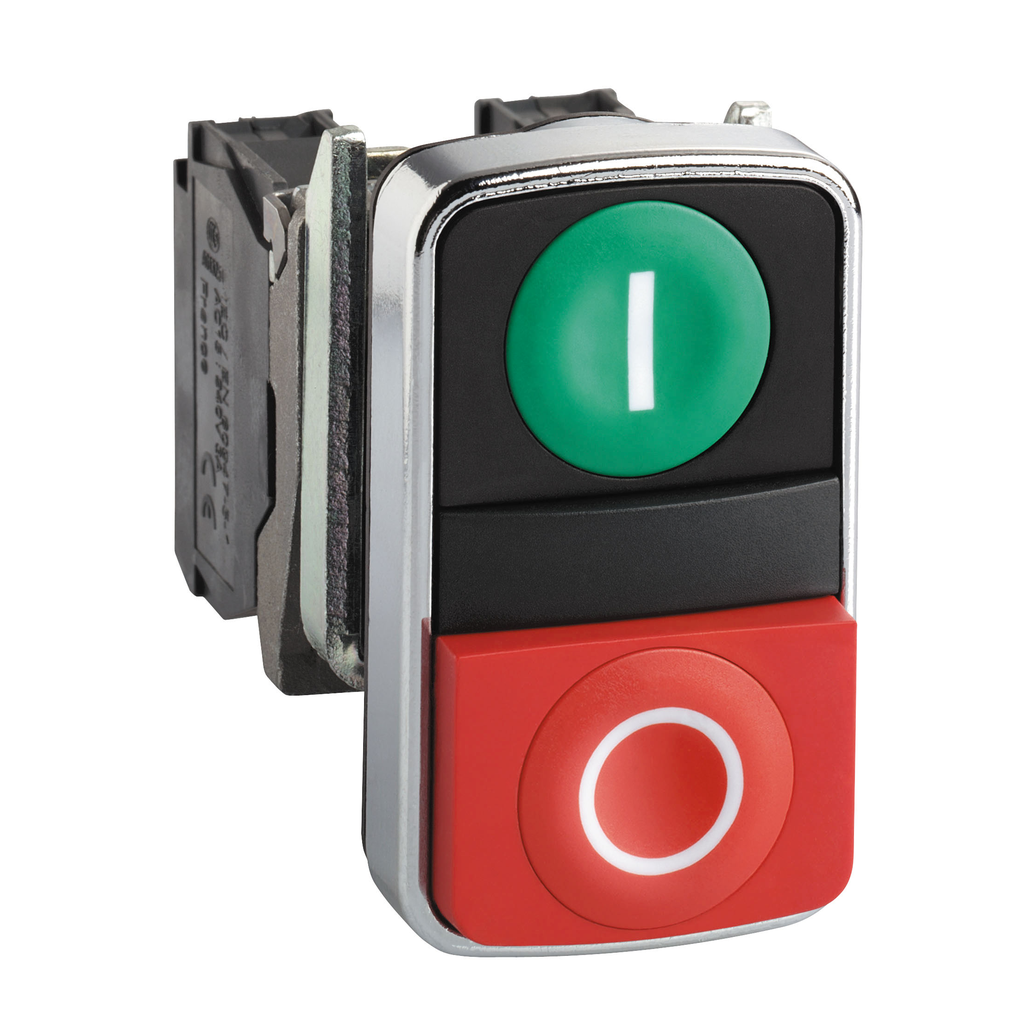

Double headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I + 1 red projecting marked O, 1NO+1NC

This Harmony XB4 double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism. It has a metal bezel. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • BV
  • GL
  • LROS (Lloyds register of shipping)
  • DNV
  • CSA
  • UL Listed
Ik Degree Of Protection IK06 conforming to IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • IEC 60947-5-4
  • IEC 60947-5-5
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP67 IEC 60529
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Electrical Shock Protection Class class I IEC 60536
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2308035EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2308035EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Usage standard contacts
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Colour Of Marking
  • black marking when white caps
  • white marking when green, red or black caps
Net Weight 0.116 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical Durability
  • 1000000 cycles AC-15, 2 A 230 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles AC-15, 3 A 120 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles AC-15, 4 A 24 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C
Operator Profile
  • green flush, I white)
  • red projecting, O white)
Mechanical Durability 1000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross JIS No 1
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Weight 0.116 kg
Range Of Product Harmony XB4
Mounting Diameter 22.5 mm
Type Of Operator spring return
Operators Description green ''I'' - red ''O''
Product Or Component Type double-headed push-button
Shape Of Signaling Unit Head rectangular
Fixing Collar Material zamak
Operator Profile 1 flush - 1 projecting push-buttons
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Bezel Material chromium plated metal
Contact Operation slow-break
Device Short Name XB4
