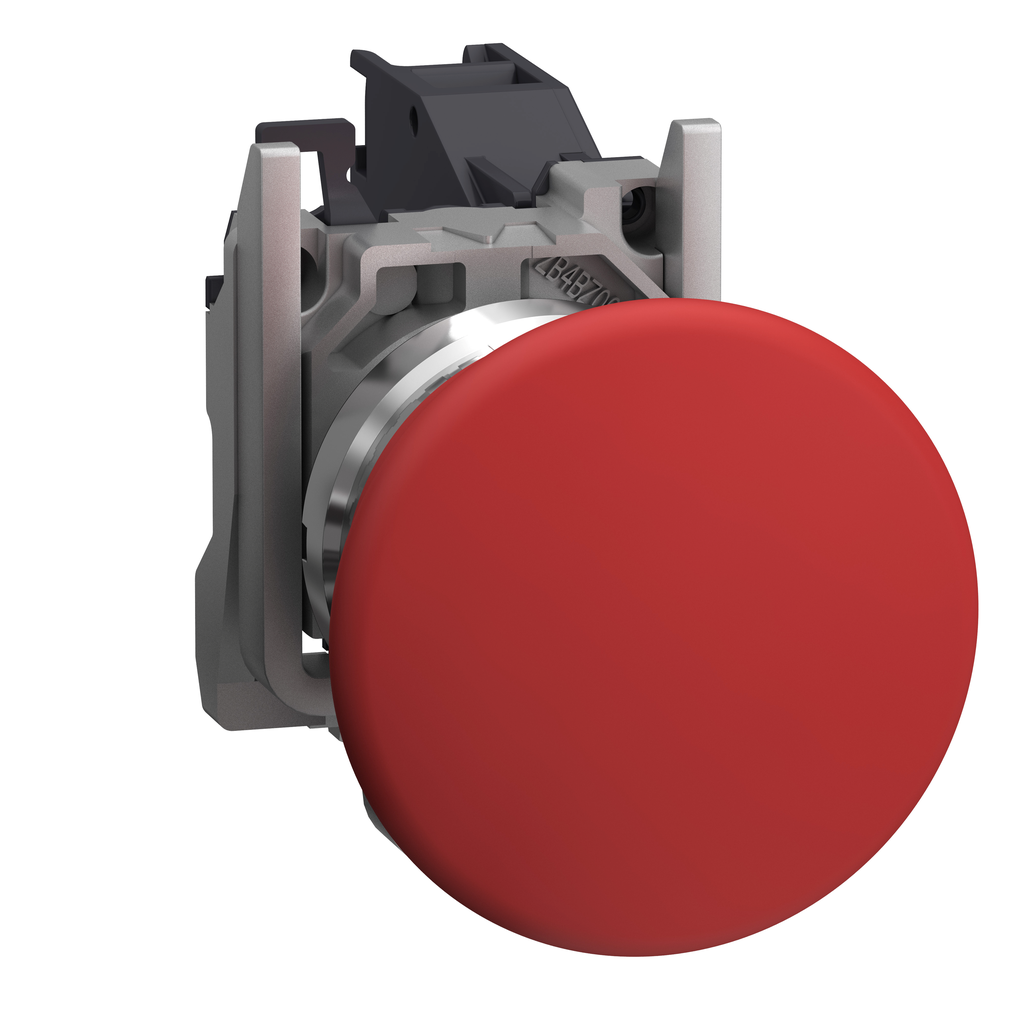

Complete push button, Harmony XB4, Explosive atmosphere, red mushroom pushbutton
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. It is a red pushbutton with mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 40mm mushroom diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Width | 46.2 mm |
| Height | 30 mm |
| Weight | 0.127 kg |
| Range Of Product | Harmony XB4 |
| Dust Zone | zone 21 - 22 |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | complete push-button |
| Fixing Collar Material | zamak |
| Gas Zone | zone 1 - 2 |
| Contacts Type And Composition | 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Operator Profile | red mushroom Ø 40 mm |
| Device Short Name | XB4 |
| Product Certifications | INERIS 04ATEX9004U |
| Ambient Air Temperature For Operation | -20-75 °C |
| Standards |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 30 mm |
| Operating Force | 2.873 N |
| Embedding Depth | 58 mm |
| Fixing Center | >= 30 x 40 mm support panel) 1-6 mm |
| Operating Travel |
|
| Positive Opening | with |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Shape Of Signaling Unit Head | round |
| Marking |
|
| Net Weight | 0.127 kg |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 415 V |
| [Ie] Rated Operational Current |
|
| Contact Operation | slow-break |
| Mechanical Durability | 5000000 cycles |
| Width | 46.2 mm |
| Depth | 96.5 mm |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Device Mounting | fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1 |
