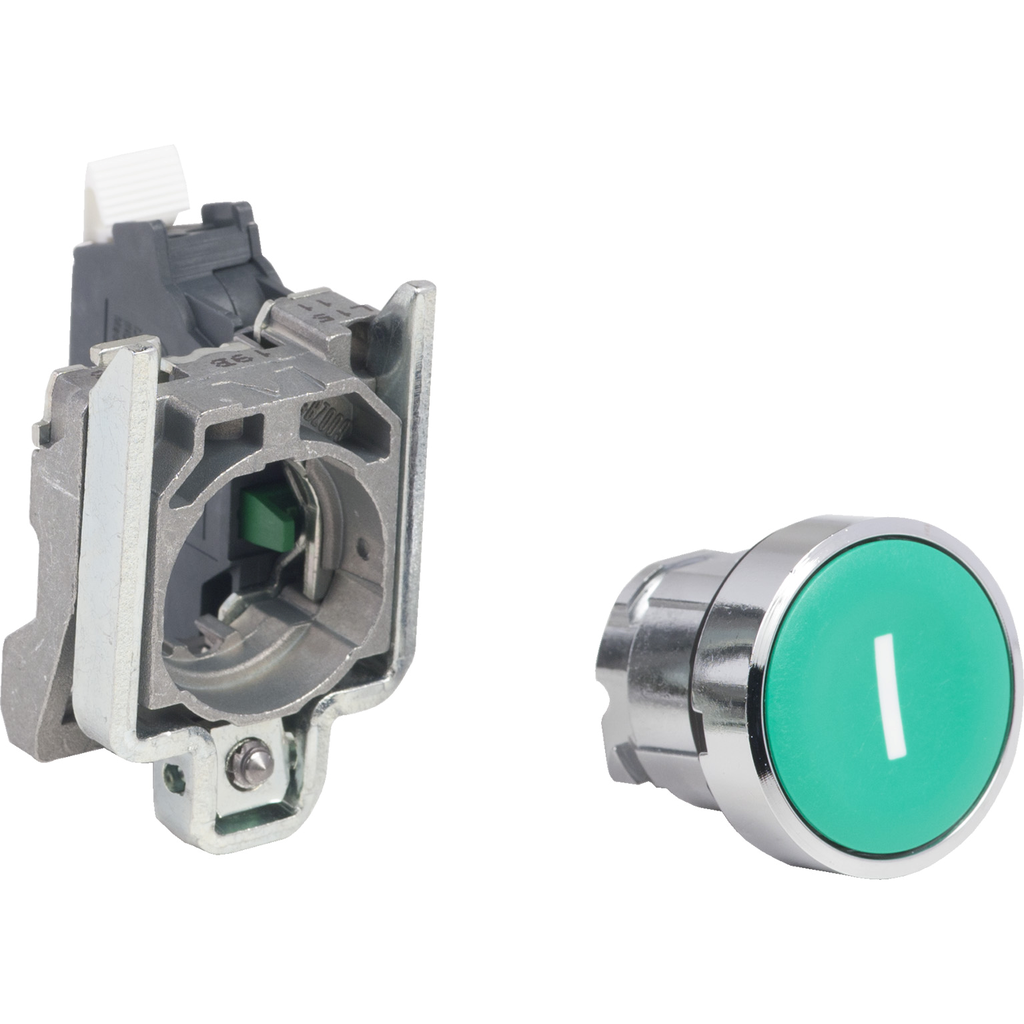

22mm push button, Harmony XB4, metal base. green full guard push button, 1NO contact, spring clamp terminals, marked I
XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. Operator is a green full guard push button. The operator has one normally open contact. Contact has UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. Contacts have spring clamp terminals. Push button is marked I. Push button is 1.85 inches tall, 1.18 inches wide and 2.05 inches deep. Push button weighs 0.18 lbs. Operator is NEMA 4, 4X and 13 rated. Push button UL listed and CSA certified. "This product meets EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-4 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK06 conforming to IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class I IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308035EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Contacts Usage | standard contacts |
| Height | 47 mm |
| Terminals Description Iso N°1 | (13-14)NO |
| Operating Force | 3.8 N NO changing electrical state |
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | without |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Net Weight | 0.08 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 10000000 cycles |
| Width | 30 mm |
| Depth | 52 mm |
| Country of Origin | United States |
| Width | 30 mm |
| Height | 47 mm |
| Weight | 0.08 kg |
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22.5 mm |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Shape Of Signaling Unit Head | round |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Operator Profile | green flush, I white) |
| Device Short Name | XB4 |
