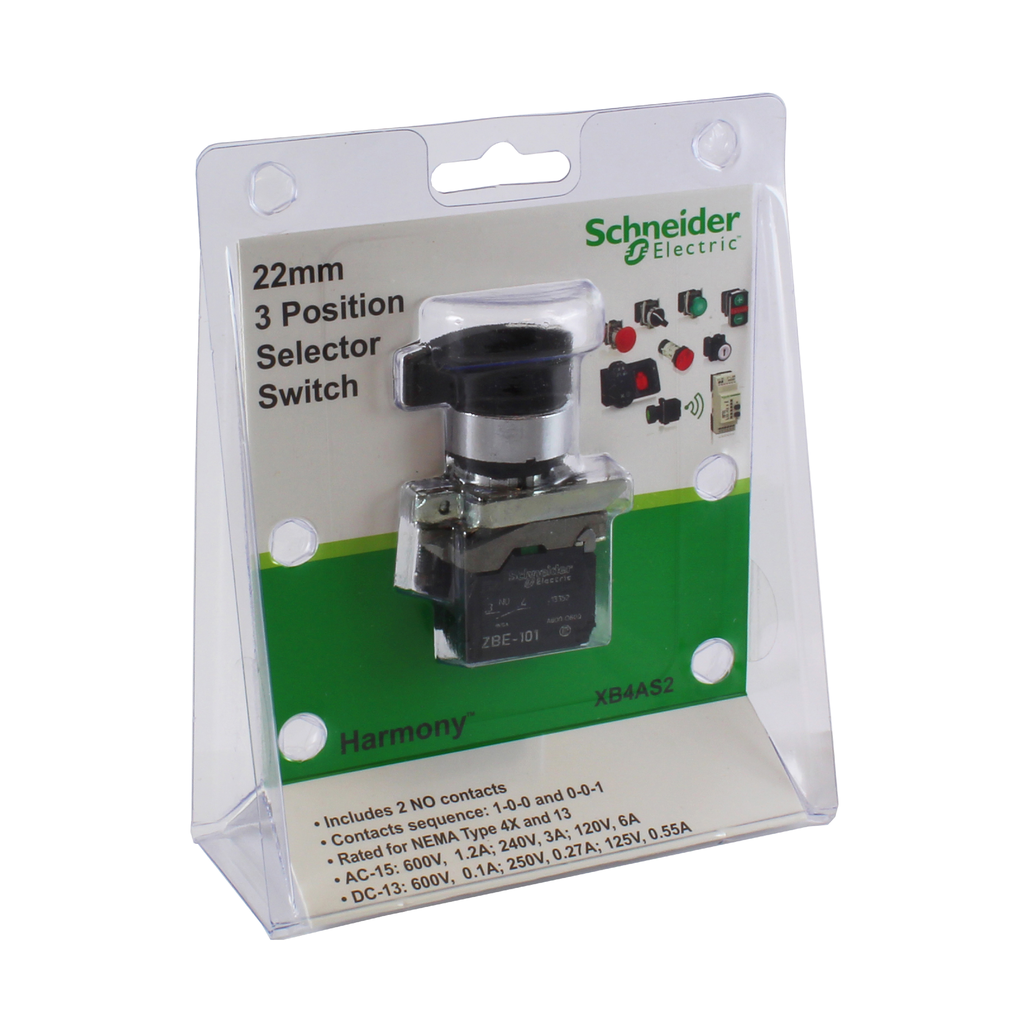

XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO

XB4AS2

Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO

This selector switch provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Contacts Usage	standard contacts
Height	47 mm
Terminals Description Iso N°1	(3-4)NO
Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	without
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Net Weight	0.095 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Device Presentation	complete product
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability	1000000 cycles
Torque Value	0.14 N.m NO changing electrical state
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Width	30 mm
Depth	68 mm
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Country of Origin	Mexico
Width	30 mm
Height	47 mm
Weight	0.095 kg
Range Of Product	Harmony XB4
Mounting Diameter	22.5 mm
Type Of Operator	stay put
Product Or Component Type	selector switch
Shape Of Signaling Unit Head	round
Fixing Collar Material	zamak
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Contacts Type And Composition	1 NO
Sale Per Indivisible Quantity	1
Bezel Material	chromium plated metal
Contact Operation	slow-break
Operator Profile	black standard handle
Operator Position Information	2 positions 90°
Device Short Name	XB4
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2308005EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2308005EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	LROS (Lloyds register of shipping) BV CSA UL DNV GL
Ambient Air Temperature For Operation	-25-70 °C
Standards	IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-5-5 JIS C8201-5-1 IEC 60947-5-4 UL 508 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP69K IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class I IEC 60536
Nema Degree Of Protection	NEMA 13 NEMA 4X
Protective Treatment	TH
