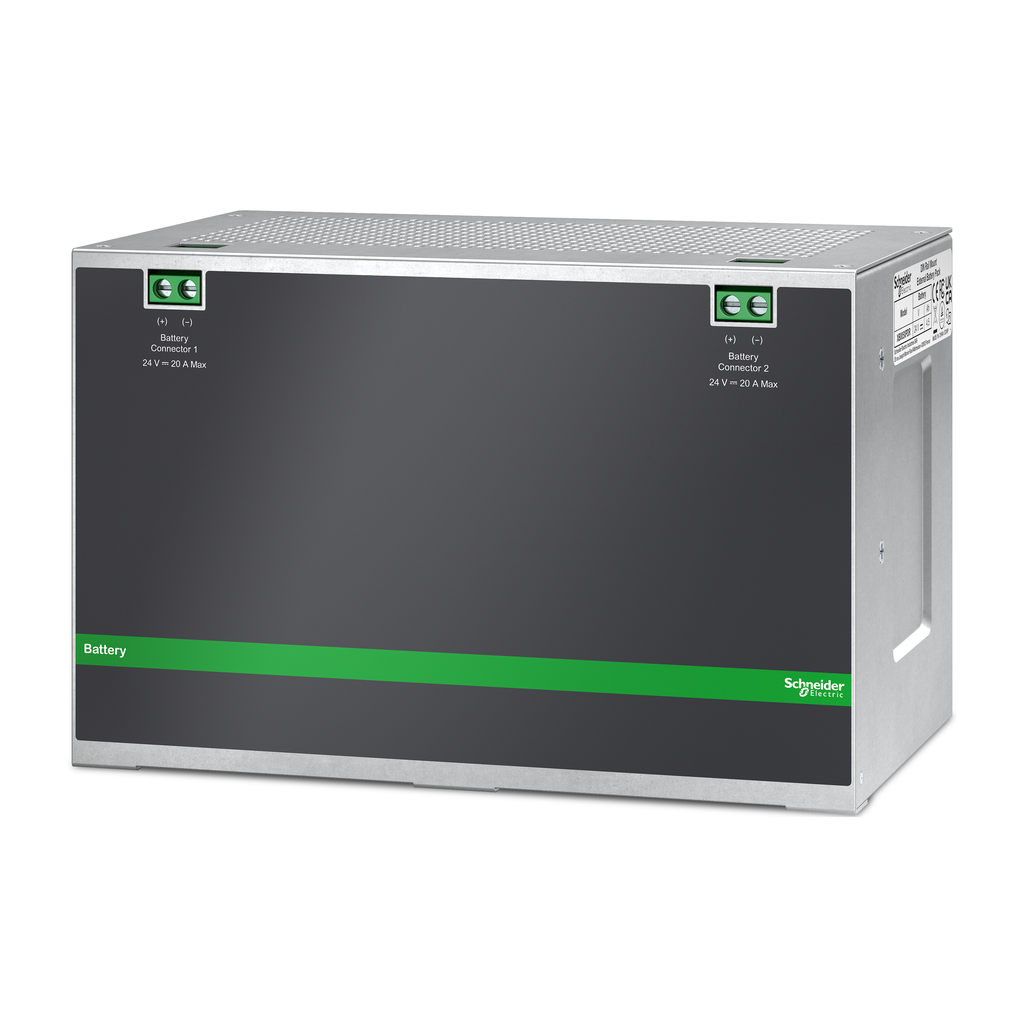

XB005XPDR
Easy UPS battery module, 24V DC-DC, DIN Rail, Industrial, 4.5Ah
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load. It comes with a 2-year standard warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Standards | IEC 62368-1 |
| Warranty | 1 Year |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1612036_EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1612036_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 129 mm |
| Usb Compatible | No |
| Net Weight | 4.5 kg |
| Color | metal grey |
| Width | 192 mm |
| Depth | 119 mm |
| Battery Capacity | 4.5 Ah |
| Device Mounting | DIN rail |
| Battery Voltage | 24 V |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | -15-50 °C |
| Storage Altitude | 0-3000 m |
| Ambient Air Temperature For Storage | -15-70 °C |
| Relative Humidity | 0-95 % |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Lead Time | Usually in Stock |
| Country of Origin | China |
| Width | 192 mm |
| Height | 129 mm |
| Weight | 4.5 kg |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Main Input Voltage | 24 V DC |
| Battery Type | VRLA |
| Provided Equipment | User Manual |
