XARSK8L12W

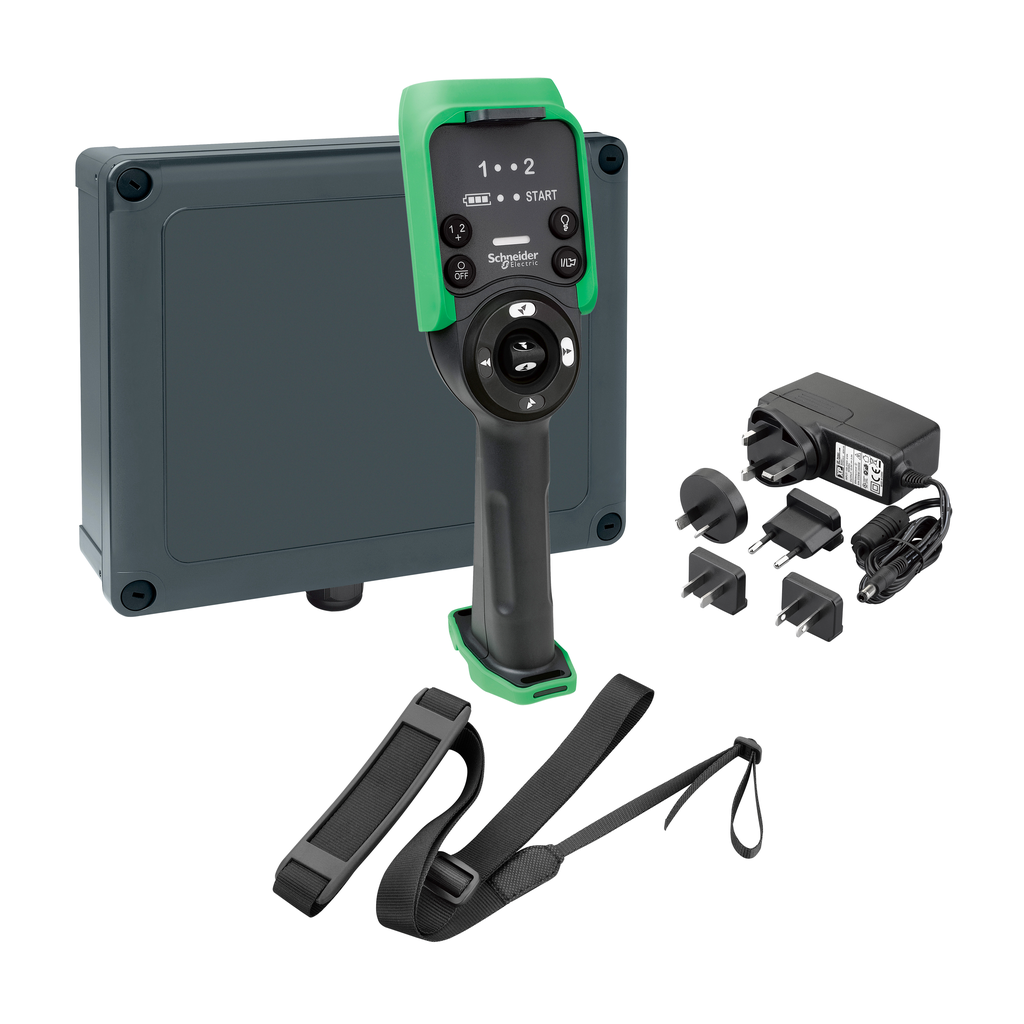

Control station, Harmony eXLhoist, standard, XARS8L12W system with charger, shoulder belt, cable USB RJ45 and config software
This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system, accessories, USB/RJ45 cable and configuration software. It is designed for hoisting or material handling applications. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403029EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Transmission Frequency | 2.4 GHz |
| Communication Network Type | wireless bluetooth low energy |
| Operating Distance | 100 m in free air |
| Cable Entry | cable gland |
| Kit Composition |
|
| Country of Origin | France |
| Range Of Product | Harmony eXLhoist |
| Product Or Component Type | control station |
| Control Station Type | wireless |
| Number Of Channels | 50 |
| Product Specific Application |
|
| Control Station Application |
|
| Device Short Name | XARS |
| Product Certifications |
|
| Electromagnetic Compatibility |
|
| Radio Agreement |
|
| Standards |
|
| Relative Humidity | 0-95 % -20-45 °C storage |
Documents
- XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN) - HRB5724702_05 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- Spec Sheet
- Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021 - Catalog+Harmony+eXLhoist+-+Wireless+industrial+radio+remote+control (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
