XARS8D18W

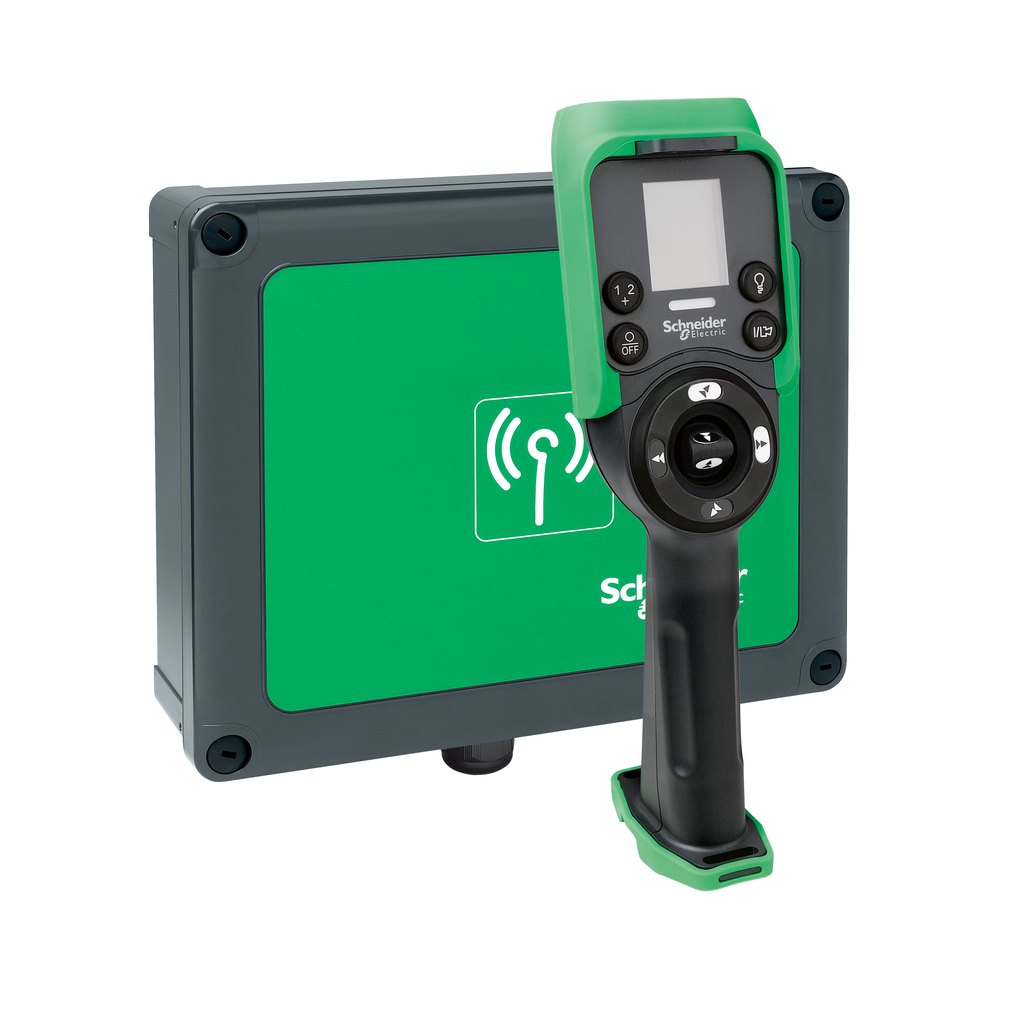

Control station, Harmony eXLhoist, standard, remote ZART8D with base ZARB18W
This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D and a base ZARB18W High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403029EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Range Of Product | Harmony eXLhoist |
| Product Or Component Type | control station |
| Control Station Type | wireless |
| Number Of Channels | 50 |
| Product Specific Application |
|
| Control Station Application |
|
| Device Short Name | XARS |
| Transmission Frequency | 2.4 GHz |
| Communication Network Type | wireless bluetooth low energy |
| Operating Distance | 100 m in free air |
| Cable Entry | cable gland |
| Kit Composition |
|
| Product Certifications |
|
| Electromagnetic Compatibility |
|
| Radio Agreement |
|
| Standards |
|
| Relative Humidity | 0-95 % -20-45 °C storage |
Documents
- XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN) - HRB5724702_05 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- Spec Sheet
- Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021 - Catalog+Harmony+eXLhoist+-+Wireless+industrial+radio+remote+control (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
