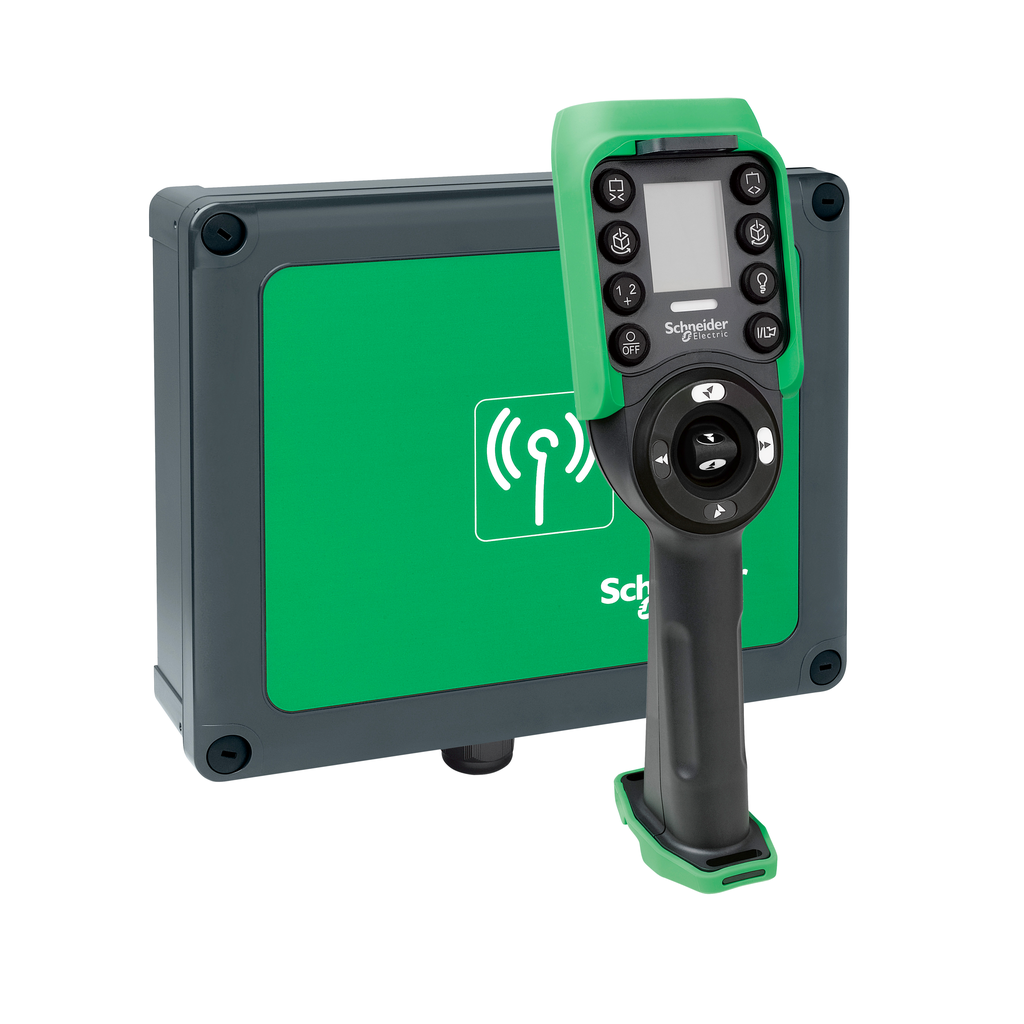

Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
This wireless remote control system is part of the range wireless remote control system Harmony eXLhoist. It is a combination of remote control device (or transmitter ZART12D) and base station (or receiver ZARB18W) which transmits commands and information from the operator to the machine and vice versa by wireless transmission. The XARS system offers movement in 3 directions (for example hoist, bridge, and trolley) at 2 speeds (low and high) for each movement. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. Its degree of protection is IP 65 for the base station and IP 65 and NEMA 4 for the wireless control device. It weighs 2.1kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403029EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Transmission Frequency | 2.4 GHz |
| Communication Network Type | wireless bluetooth low energy |
| Operating Distance | 100 m in free air |
| Cable Entry | cable gland |
| Kit Composition |
|
| Product Certifications |
|
| Electromagnetic Compatibility |
|
| Radio Agreement |
|
| Standards |
|
| Relative Humidity | 0-95 % -20-45 °C storage |
| Country of Origin | France |
| Range Of Product | Harmony eXLhoist |
| Product Or Component Type | control station |
| Control Station Type | wireless |
| Number Of Channels | 50 |
| Product Specific Application |
|
| Control Station Application |
|
| Device Short Name | XARS |
