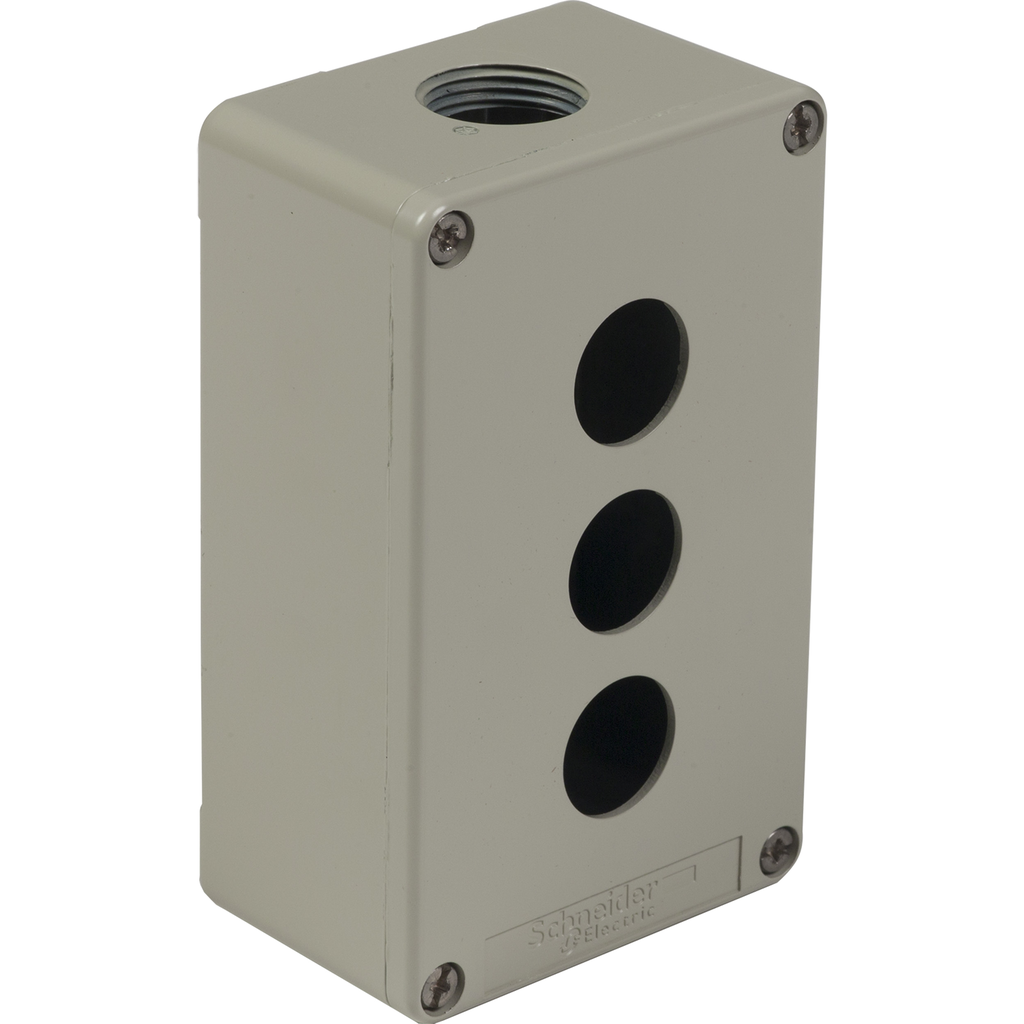

Die cast empty control station, Harmony XAP, zinc alloy, grey, 3 cut outs, 22mm, 130x80x51.5mm
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPG29703 is an empty enclosure with grey color (RAL7032). It has 3 cut-outs of diameter 22mm for 3 functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP67, making it ideal for operation in harsh environments It is compatible with Harmony 22mm range pushbuttons, switches and pilot lights It has a wide range of operating temperatures from -25°C to 70°C. Its dimensions are 130mm height, 80mm wide, 51.5mm deep. It is compatible with the Harmony XB4 and XB5 range of control and signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK07 IEC 62262 |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class |
|
| Protective Treatment | TH |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Number Of Horizontal Rows | 3 |
| Number Of Vertical Rows | 1 |
| Cable Entry |
|
| Net Weight | 0.605 kg |
| Cad Overall Height | 130 mm |
| Thread Type | 3/4 NPT |
| Cut-Out Dimensions | Ø 22 mm |
| Compatibility Code | XAPG |
| Cad Overall Width | 80 mm |
| Cad Overall Depth | 51.5 mm |
| Country of Origin | France |
| Width | 80 mm |
| Height | 130 mm |
| Weight | 0.605 kg |
| Product Destination | for Ø 22 mm control and signalling units |
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey RAL 7032) |
| Product Or Component Type | die-cast empty control station |
| Material | die cast zinc |
| Ip Degree Of Protection |
|
| Control Station Type | metal |
| Colour Of Cover | grey RAL 7032) |
| Number Of Cut-Out | 3 cut-outs |
| Sale Per Indivisible Quantity | 1 |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Device Short Name | XAPG |
