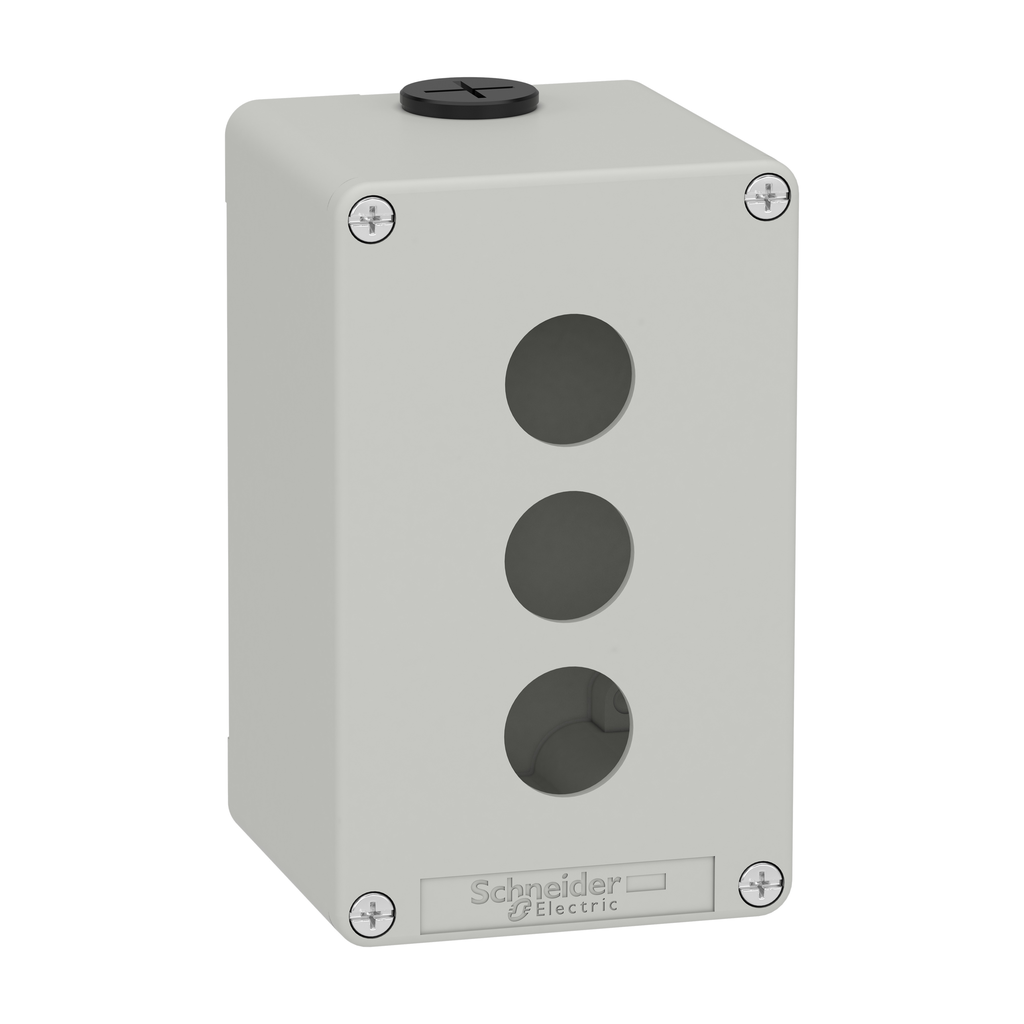

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, 3 cut outs 22mm, 80x130x77mm, UL cULus
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD2503 is an empty enclosure with grey color (RAL7035). This version with 3 holes allows combination of XB4/XB5 functions in a small volume. Its dimension leaves a comfortable space for wiring. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 130mm (height) x 77mm (depth) and it weighs 0.815kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Morocco |
|---|---|
| Width | 80 mm |
| Height | 130 mm |
| Weight | 0.81 kg |
| Product Destination | for Ø 22 mm control and signalling units |
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey RAL 7035) |
| Product Or Component Type | die-cast empty control station |
| Product Front Plate Size | 80 x 130 mm |
| Material | die cast zinc |
| Ip Degree Of Protection |
|
| Colour Of Cover | grey RAL 7035) |
| Number Of Cut-Out | 3 cut-outs |
| Sale Per Indivisible Quantity | 1 |
| Usable Depth | 74.5 mm |
| Device Short Name | XAPD |
| Number Of Horizontal Rows | 3 |
| Number Of Vertical Rows | 1 |
| Cable Entry | 2 x cable gland ISO |
| Net Weight | 0.81 kg |
| Cad Overall Height | 130 mm |
| Control Station Type | metal |
| Thread Type | M20 x 1.5 |
| Cut-Out Dimensions | Ø 22 mm |
| Cad Overall Width | 80 mm |
| Cad Overall Depth | 77 mm |
| Product Certifications |
|
| Degree Of Protection |
|
| Ik Degree Of Protection | IK07 IEC 62262 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class I IEC 61140 |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Protective Treatment | TC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
