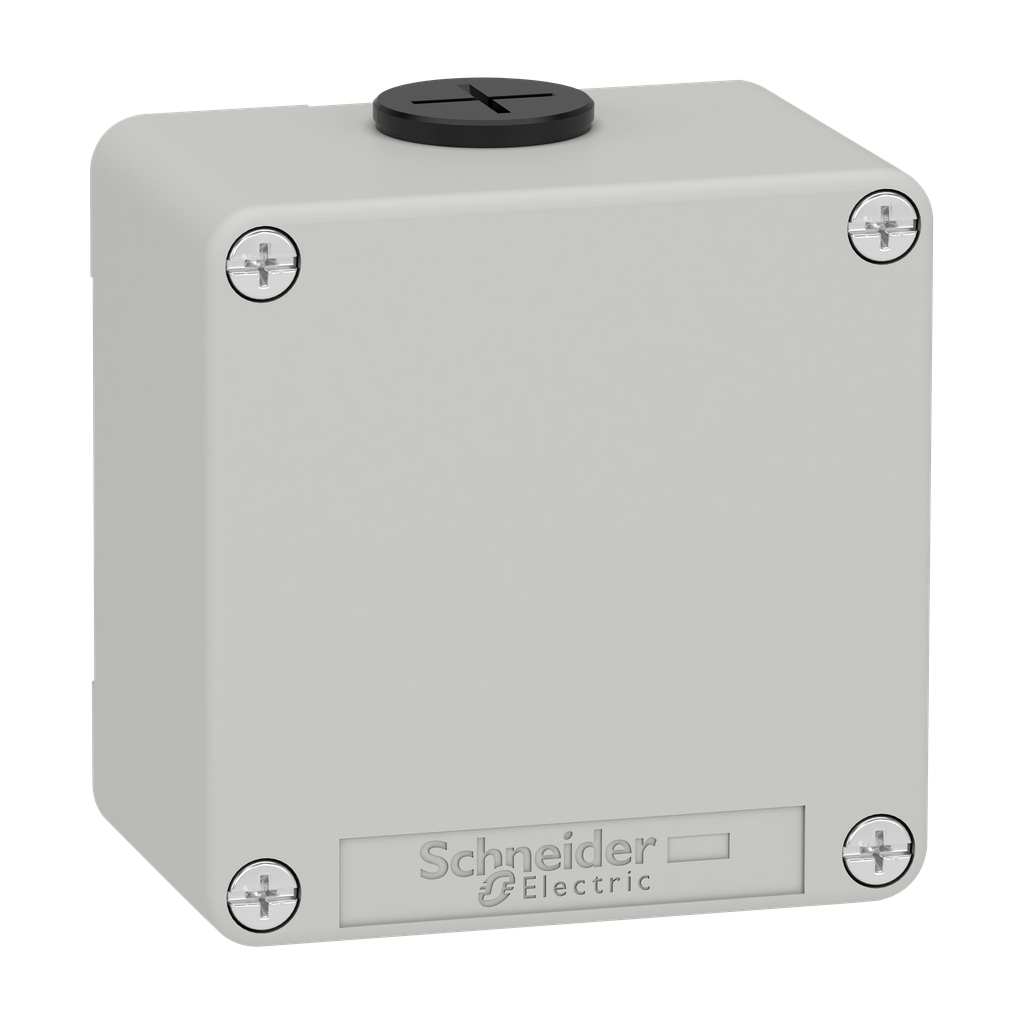

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, undrilled, 80x80x51,5mm, UL cULus
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD11 is an empty enclosure with grey color (RAL7035). This version without hole allows a customizable position of pushbuttons on the lid. It can also be used as a connection box. The size remains compact. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 80mm (height) x 51.5mm (depth) and it weighs 0.460kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Degree Of Protection |
|
| Ik Degree Of Protection | IK07 IEC 62262 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class I IEC 61140 |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Protective Treatment | TC |
| Number Of Horizontal Rows | 0 |
| Number Of Vertical Rows | 0 |
| Cable Entry | 2 x cable gland ISO |
| Net Weight | 0.455 kg |
| Cad Overall Height | 80 mm |
| Control Station Type | metal |
| Thread Type | M20 x 1.5 |
| Cad Overall Width | 80 mm |
| Cad Overall Depth | 51.5 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Morocco |
| Width | 80 mm |
| Height | 80 mm |
| Weight | 0.455 kg |
| Product Destination | for Ø 22 mm control and signalling units |
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey RAL 7035) |
| Product Or Component Type | die-cast empty control station |
| Product Front Plate Size | 80 x 80 mm |
| Material | die cast zinc |
| Ip Degree Of Protection |
|
| Colour Of Cover | grey RAL 7035) |
| Number Of Cut-Out | without cut-out |
| Sale Per Indivisible Quantity | 1 |
| Usable Depth | 49 mm |
| Device Short Name | XAPD |
