XAPA3116

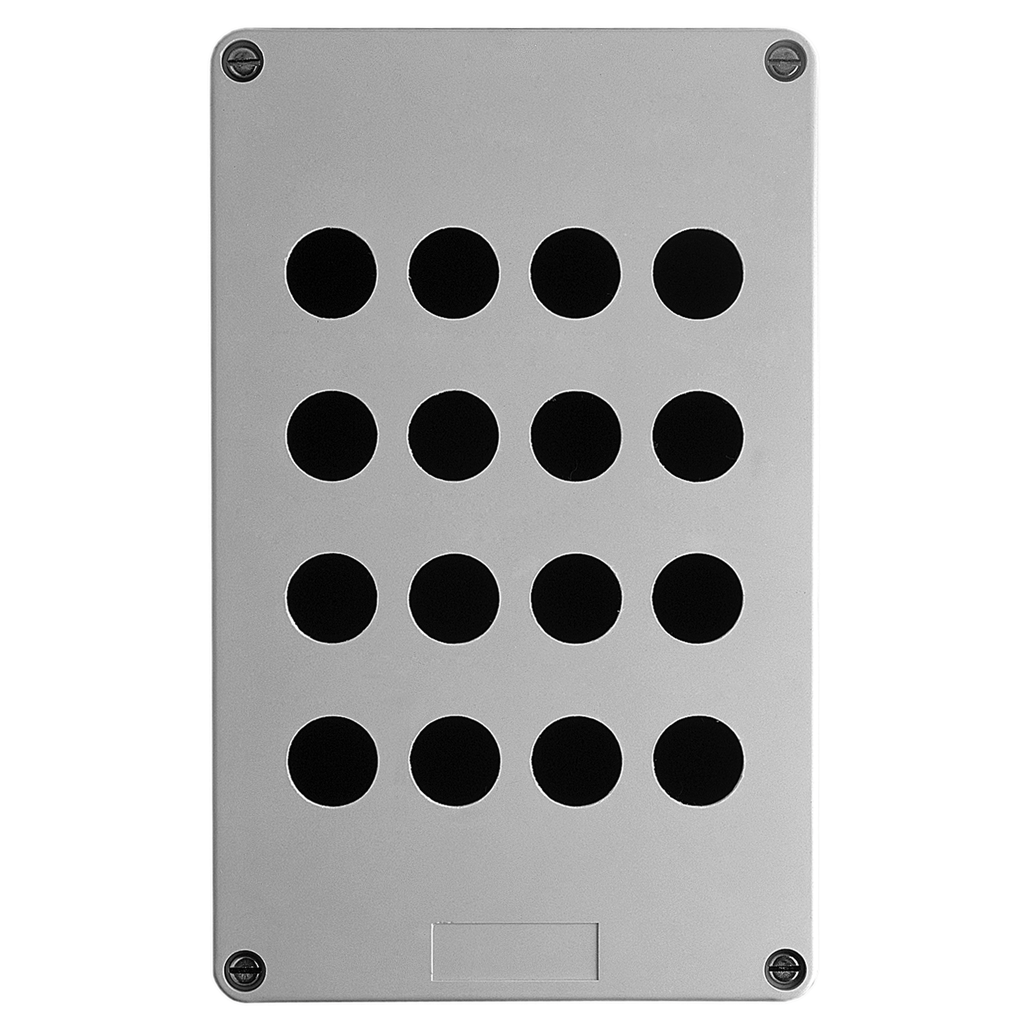

Empty control station without hinges, Harmony XAP, plastic, grey, 16 cut outs, 22mm, 151 x 241 x 83mm
This Harmony XAPA3116 is an empty control station plastic 16 openings in 4 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -40-70 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category |
|
| Fire Resistance |
|
| Protective Treatment |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Number Of Vertical Rows | 4 |
| Net Weight | 0.82 kg |
| Flame Retardance |
|
| Country of Origin | France |
| Weight | 0.82 kg |
| Product Destination | for Ø 22 mm control and signalling units |
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey |
| Device Mounting | flush |
| Cable Entry | undrilled |
| Product Or Component Type | empty control station without hinges |
| Product Front Plate Size | 151 x 241 mm |
| Material | glass reinforced polyester |
| Ip Degree Of Protection |
|
| Colour Of Cover | grey |
| Number Of Cut-Out | 16 cut-outs |
| Usable Depth | 83 mm |
| Resistance To Chemical Agents |
|
| Device Short Name | XAPA |
Documents
- XAP A... Push-Buttons Stations, Grounding of equipment - 1308320_01_11_A04 (pdf)
- Spec Sheet
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony Control Stations and Enclosures Catalog - 9001CT1104 (pdf)
- Catalog Harmony XAP and XB2SL Control stations and enclosures - DIA5ED2130511EN (pdf)
- Push Buttons: Section 19 - Digest 179 (2024) - Push-Buttons-Digest-Catalog-0100CT2401-SEC-19 (pdf)
