XAPA1100

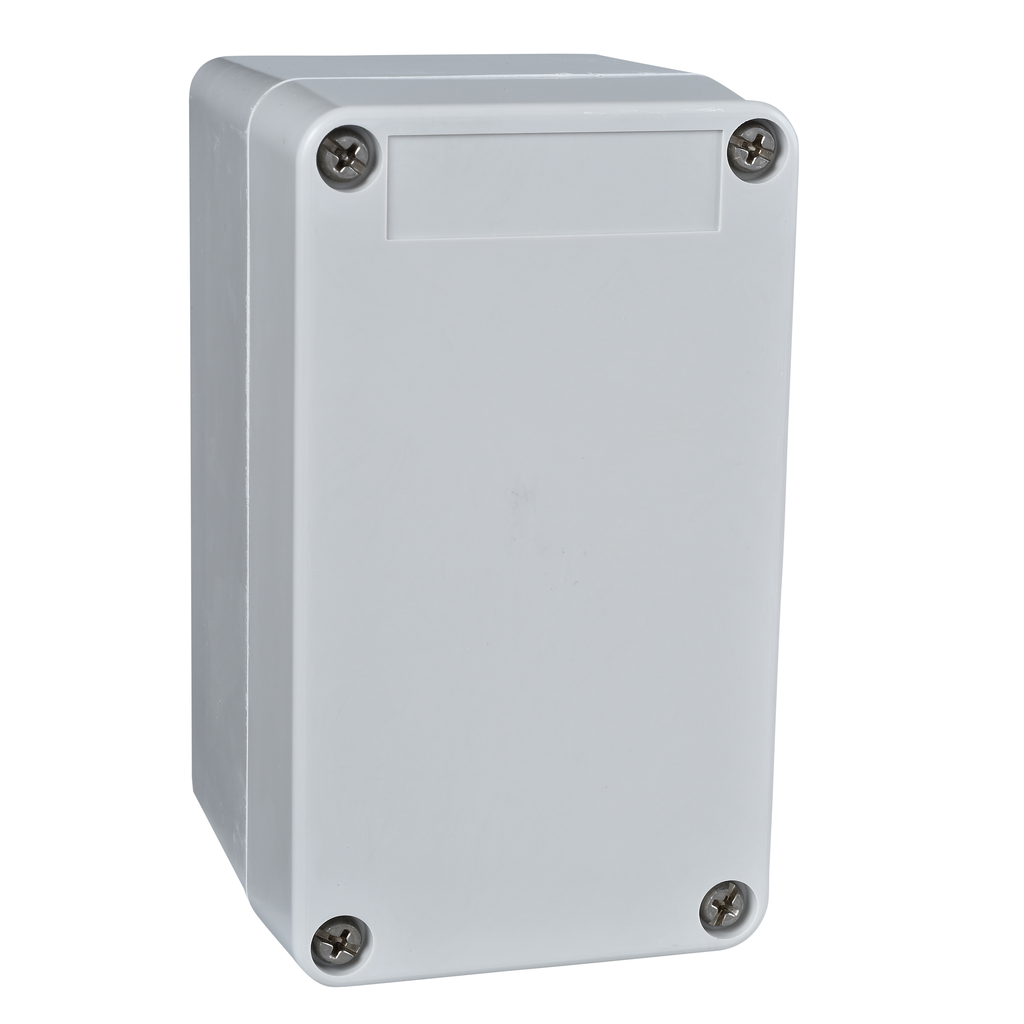

Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, undrilled, 85x146x87mm
This is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4. This Harmony XAPA1100 is an empty plastic control station without opening and without hinges. It is impact resistant, dust resistant, water resistant and vibration resistant. This insulated enclosure is highly resistant to acids, bases, sea water, mineral salts, all solvants, petrol, diesel, oils and greases. Its protection index is IP65. It is made of glass-reinforced polyester material. It weighs 0.470Kg with dimensions 85mm wide, 146mm height, 87mm deep. It is compatible with Harmony XB4 range of control and signalling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -40-70 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category |
|
| Fire Resistance |
|
| Protective Treatment |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.47 kg |
| Flame Retardance |
|
| Country of Origin | France |
| Weight | 0.47 kg |
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey |
| Device Mounting | flush |
| Cable Entry | undrilled |
| Product Or Component Type | empty control station without hinges |
| Product Front Plate Size | 85 x 146 mm |
| Material | glass reinforced polyester |
| Ip Degree Of Protection |
|
| Colour Of Cover | grey |
| Number Of Cut-Out | undrilled |
| Usable Depth | 83 mm |
| Resistance To Chemical Agents |
|
| Device Short Name | XAPA |
