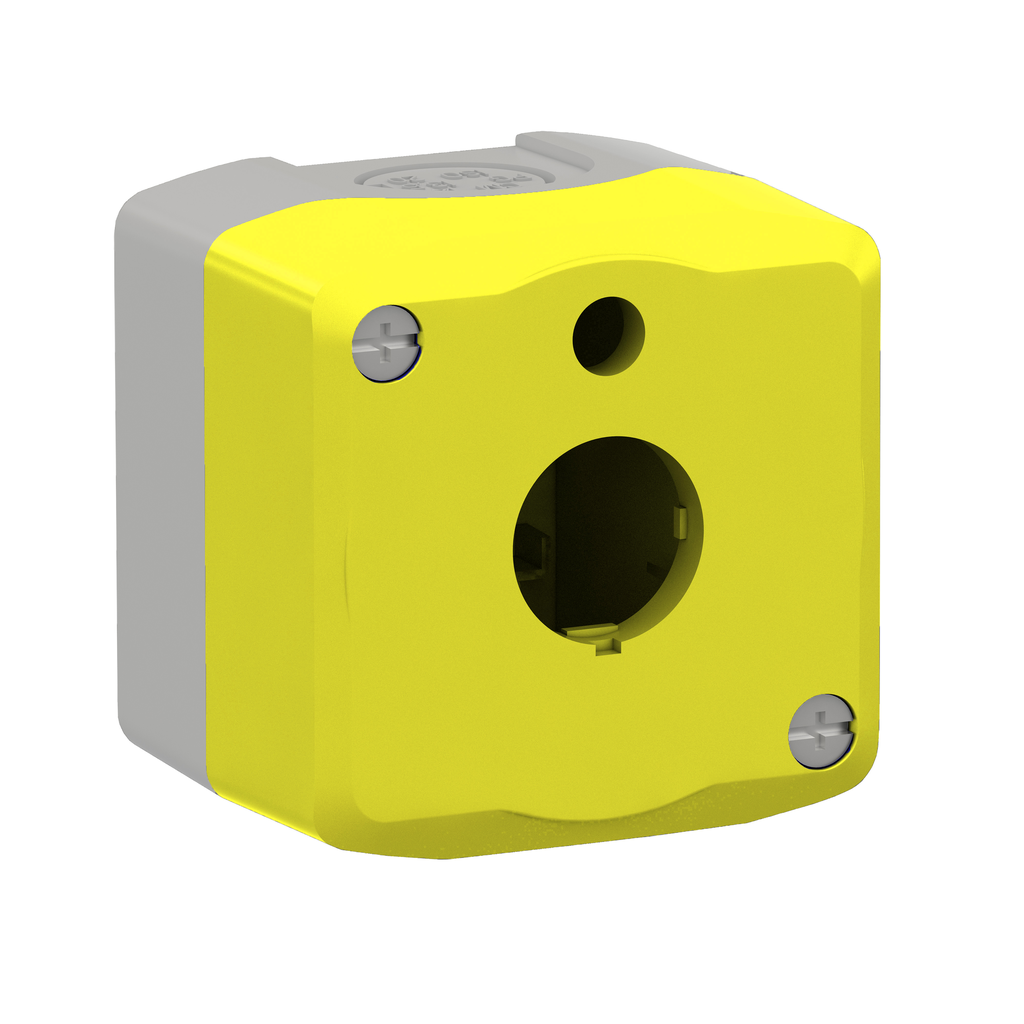

XALKW01 – Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out
XALKW01
Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

This 1 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact, dust, water and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ik Degree Of Protection IK05 conforming to IEC 62262
Ambient Air Temperature For Operation -40-70 °C
Standards
  • IEC 60947-5-5
  • IEC 60947-5-4
  • JIS C8201-5-1
  • IEC 60947-1
  • IEC 60947-5-1
  • JIS C8201-1
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class II IEC 60536
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1806010EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1806010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Of Block
  • front mounting
  • rear mounting
Number Of Horizontal Rows 1
Main Group 1 cut-out
Number Of Vertical Rows 1
Net Weight 0.116 kg
Cad Overall Height 68 mm
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Assembly Style for customer assembly
Cad Overall Width 68 mm
Electrical Composition Code
  • SR1
  • SF1
  • MR1
  • MF1
Cad Overall Depth 53 mm
Group Of Product standard yellow
Country of Origin Czechia
Width 68 mm
Height 68 mm
Weight 0.116 kg
Control Station Application
  • emergency stop function
  • emergency switching off function
Product Destination for XB5 Ø 22 mm control and signalling units
Range Of Product Harmony XALK
Colour Of Base Of Enclosure light grey RAL 7035)
Cable Entry
  • 1 knock-out for cable entry 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Product Or Component Type empty control station
Material polycarbonate
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67 IEC 60529
  • IP69 IEC 60529
  • IP69K ISO 20653
  • Type 13 UL 50E
  • Type 12 UL 50E
  • Type 4 UL 50E
  • Type 4X UL 50E
Colour Of Cover yellow RAL 1021)
Number Of Cut-Out 1 cut-out
Sale Per Indivisible Quantity 1
Device Short Name XALK
