XALD326H7 – Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, white up arrow 1NO red STOP 1NC black down arrow 1NO
XALD326H7

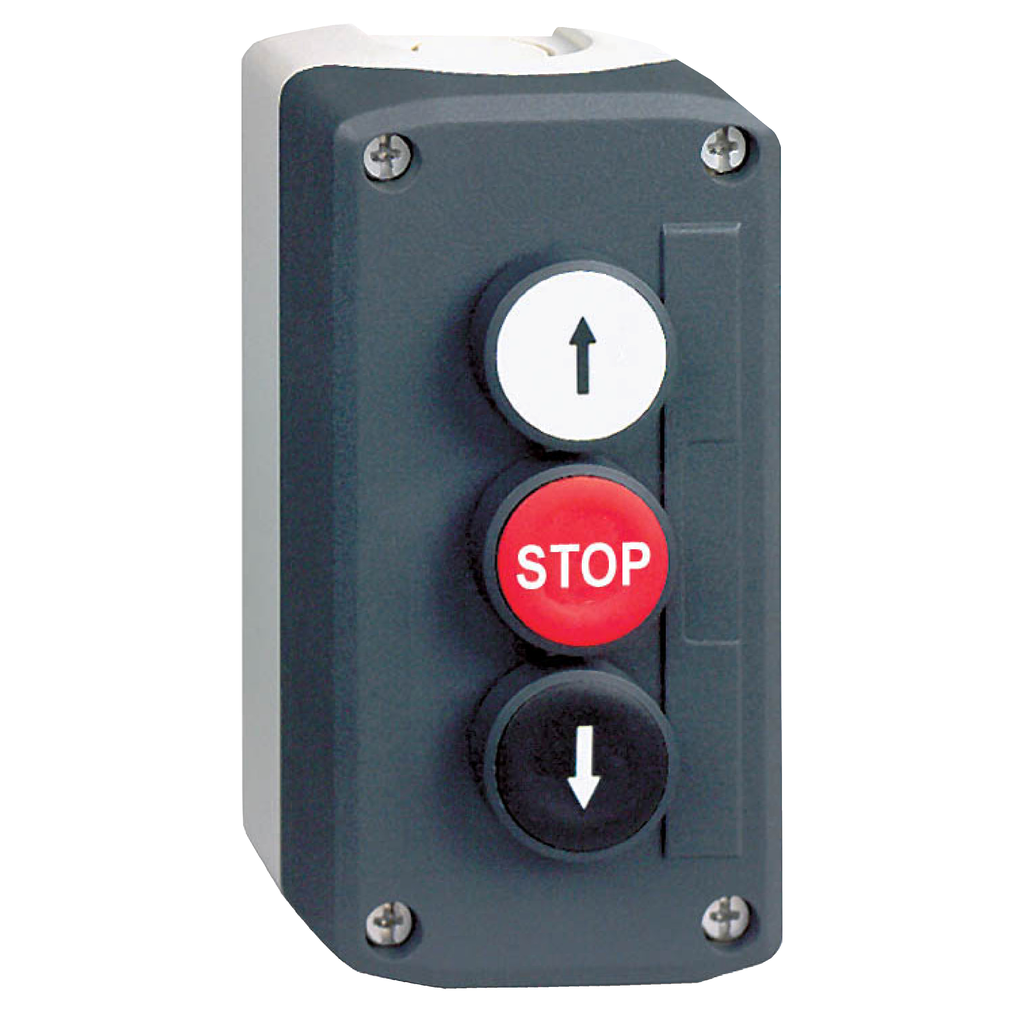

Complete control station, Harmony XALD, XALK, dark grey, flush push buttons 22mm, white up arrow 1NO red STOP 1NC black down arrow 1NO

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • CSA
  • UL Listed
Ik Degree Of Protection IK03 conforming to IEC 62262
Ambient Air Temperature For Operation -40-70 °C
Standards
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • IEC 60947-5-5
  • IEC 60947-5-1
  • UL 508
  • IEC 60947-5-4
  • IEC 60947-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP69
  • IP69K
  • IP67
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Electrical Shock Protection Class class II IEC 60536
Protective Treatment TH
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1806010EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1806010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-5-1
Cable Entry
  • 2 knock-outs for cable entry 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Colour Of Marking
  • black marking when white caps
  • white marking when green, red or black caps
Net Weight 0.298 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
[Ie] Rated Operational Current
  • 6 A 120 V, AC-15, A600 IEC 60947-5-1
  • 3 A 240 V, AC-15, A600 IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Mechanical Durability 5000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Country of Origin France
Weight 0.298 kg
Control Station Application three functions
Product Destination for XB5 Ø 22 mm control and signalling units
Range Of Product Harmony XALD
Colour Of Base Of Enclosure light grey RAL 7035)
Control Station Composition
  • 1 flush push-button, black 1 NO, white down arrow
  • 1 flush push-button, white 1 NO, black up arrow
  • 1 flush push-button, red 1 NC STOP
Operators Description white ''up arrow'' 1 NO - red ''STOP'' 1 NC - black ''down arrow'' 1 NO
Product Or Component Type complete control station
Material polycarbonate
Marking Location marking on push-button
Operator Profile 3 flush push-buttons
Colour Of Cover dark grey RAL 7016)
Contact Operation slow-break
Device Short Name XALD
