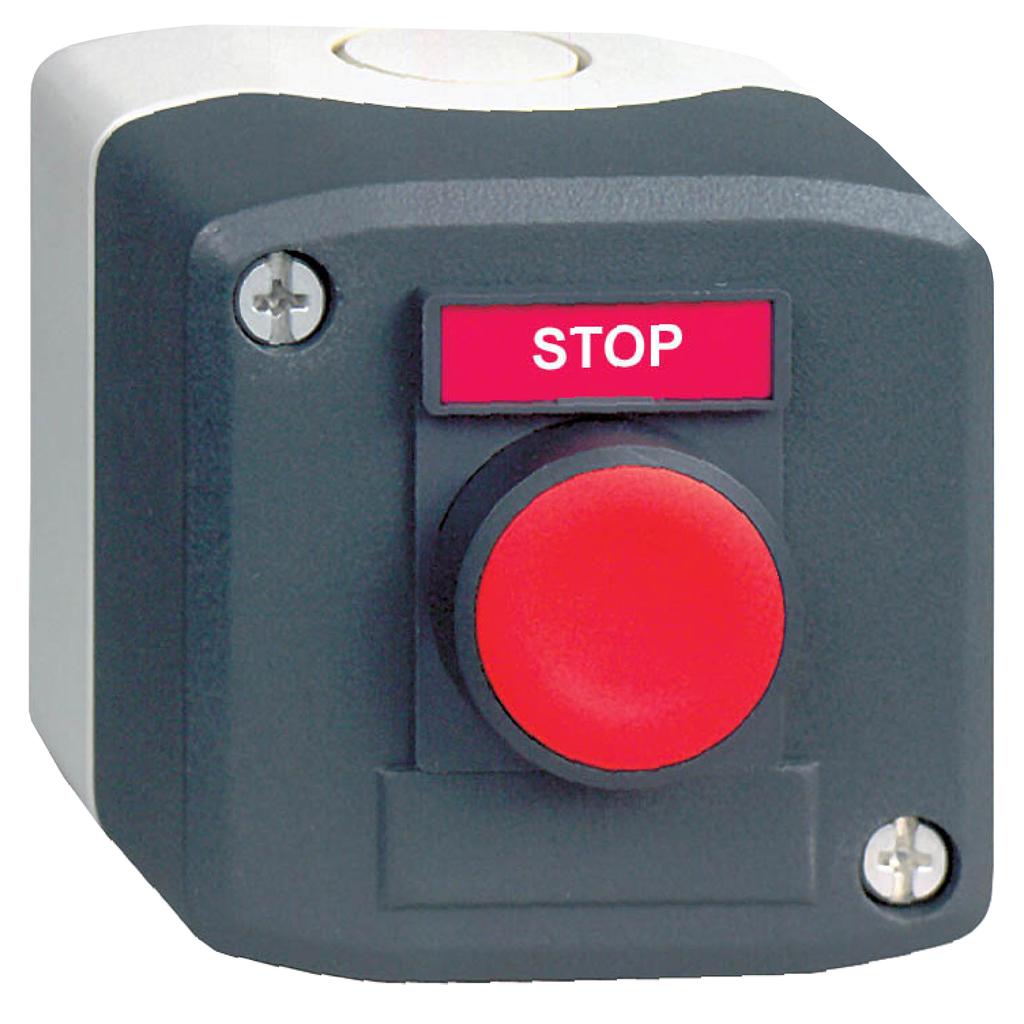

XALD111H29H7 - Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton, 22mm, spring return, 1NO, marked STOP

XALD111H29H7

Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton, 22mm, spring return, 1NO, marked STOP

Add to Quote Catalogue

Specifications

Product Certifications	CSA UL Listed
Ik Degree Of Protection	IK03 conforming to IEC 62262
Ambient Air Temperature For Operation	-40-70 °C
Standards	IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 IEC 60947-5-5 UL 508 CSA C22.2 No 14 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IP69 IP69K
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536
Nema Degree Of Protection	NEMA 13 NEMA 4X
Protective Treatment	TH
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1806010EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1806010EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Operating Force	3.5 N NC changing electrical state
Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Operating Travel	1.5 mm NC changing electrical state) 4.3 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	with IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Cable Entry	1 knock-out for cable entry 14-14 mm 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Net Weight	0.157 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
[Ie] Rated Operational Current	6 A 120 V, AC-15, A600 IEC 60947-5-1 3 A 240 V, AC-15, A600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Mechanical Durability	5000000 cycles
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Country of Origin	France
Weight	0.157 kg
Control Station Application	stop function
Product Destination	for XB5 Ø 22 mm control and signalling units
Range Of Product	Harmony XALD
Colour Of Base Of Enclosure	light grey RAL 7035)
Control Station Composition	1 flush push-button, red 1 NC STOP
Operators Description	red ''STOP'' 1 NC
Product Or Component Type	complete control station
Material	polycarbonate
Marking Location	marking on legend holder
Operator Profile	1 flush push-button
Colour Of Cover	dark grey RAL 7016)
Contact Operation	slow-break
Device Short Name	XALD
