Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Brand: Schneider Electric
Add to Quote CatalogueProduct Destination | for XB5 Ø 22 mm control and signalling units |
---|---|
Range Of Product | Harmony XALD |
Colour Of Base Of Enclosure | light grey RAL 7035) |
Cable Entry |
|

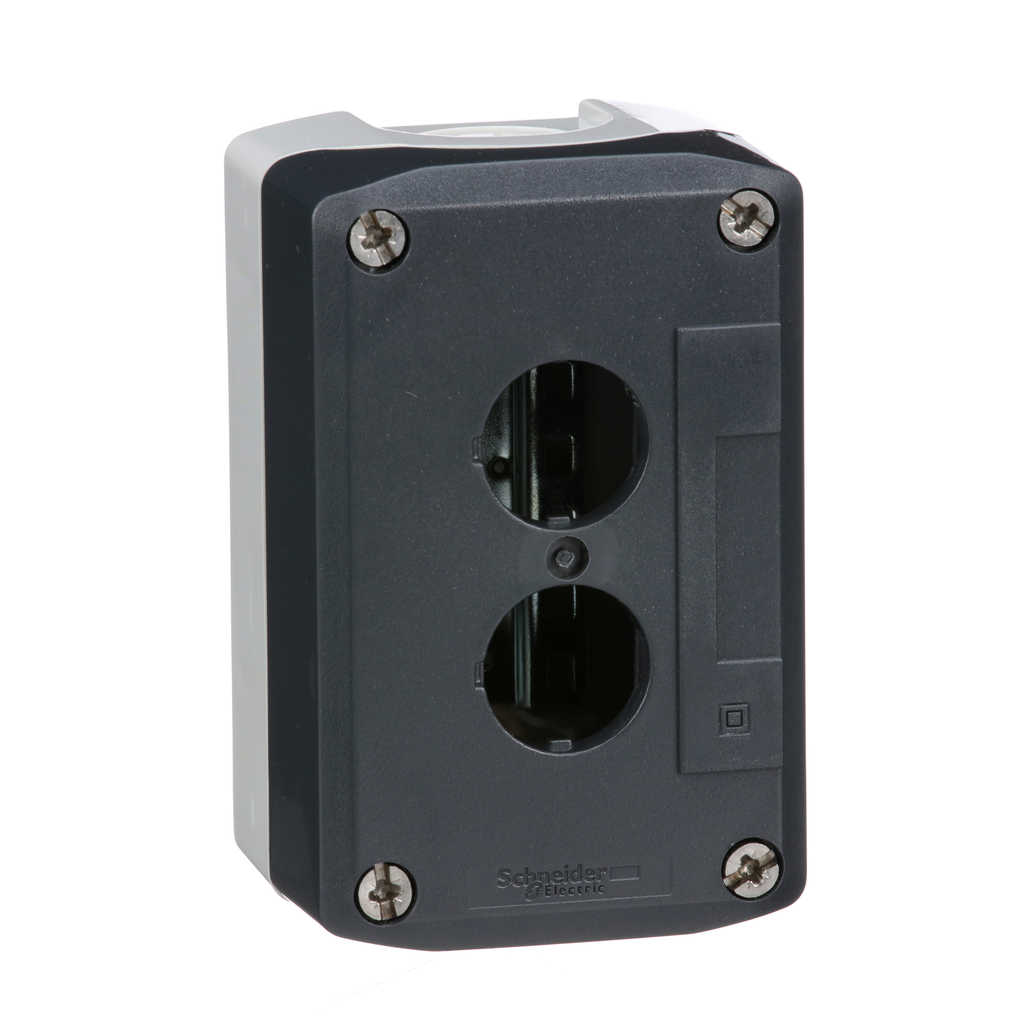

Product Or Component Type | empty control station |
Material | polycarbonate |
Ip Degree Of Protection |
|
Colour Of Cover | dark grey RAL 7016) |
Number Of Cut-Out | 2 cut-outs |
Device Short Name | XALD |
Warranty | 18 months |
Mounting Of Block |
|
Number Of Horizontal Rows | 1 |
Main Group | 2 cut-outs |
Number Of Vertical Rows | 2 |
Net Weight | 0.205 kg |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Assembly Style | for customer assembly |
Electrical Composition Code |
|
Group Of Product | UL-CSA grey |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1806010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1806010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 EN 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
