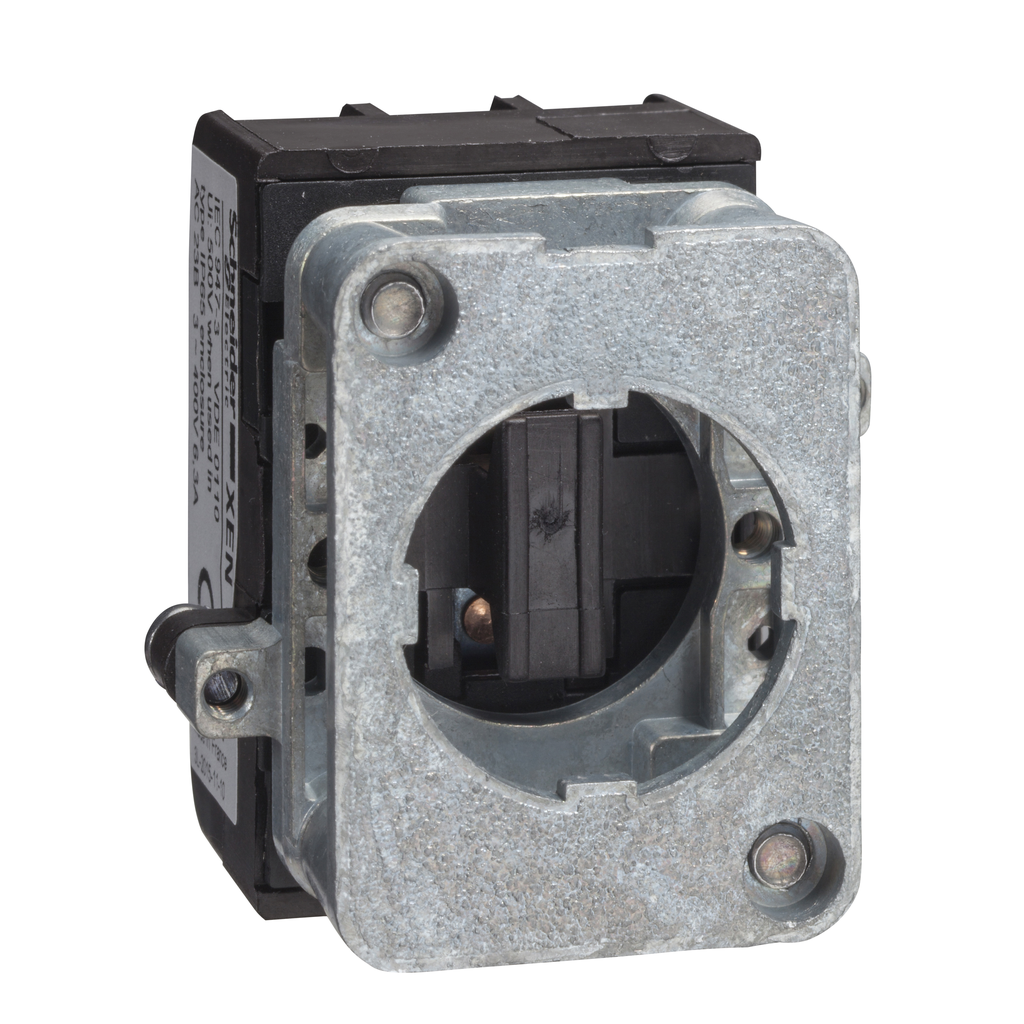

XACS399 - Single isolating block for power circuit, Harmony XAC, horizontal fixing centres 40mm, screw clamp terminal, 3NC

XACS399

Single isolating block for power circuit, Harmony XAC, horizontal fixing centres 40mm, screw clamp terminal, 3NC

This Harmony XACS399 is a single isolating block for power circuit - horizontal fixing centres-40mm. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-25-70 °C
Standards	IEC 60947-3 CSA C22.2 No 14
Shock Resistance	100 gn IEC 60068-2-27
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Electrical Shock Protection Class	class II IEC 61140
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Horizontal Fixing Centres	40 mm
Net Weight	0.1 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Ui] Rated Insulation Voltage	400 V 3)IEC 60947-1
Mechanical Durability	1000000 cycles
Contact Code Designation	A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Rated Operational Power In W	3000 W AC-23B 400 V
Country of Origin	Czechia
Weight	0.1 kg
Mounting Of Block	front mounting
Range Of Product	Harmony XAC
Contact Block Type	single
Product Or Component Type	isolating block
Contact Block Application	emergency stop push-button
Component Name	XACS
Contacts Type And Composition	3 NC
Contact Operation	snap action
Electrical Circuit Type	power circuit
Product Compatibility	XACB

Single isolating block for power circuit, Harmony XAC, horizontal fixing centres 40mm, screw clamp terminal, 3NC
