XACD22A0105

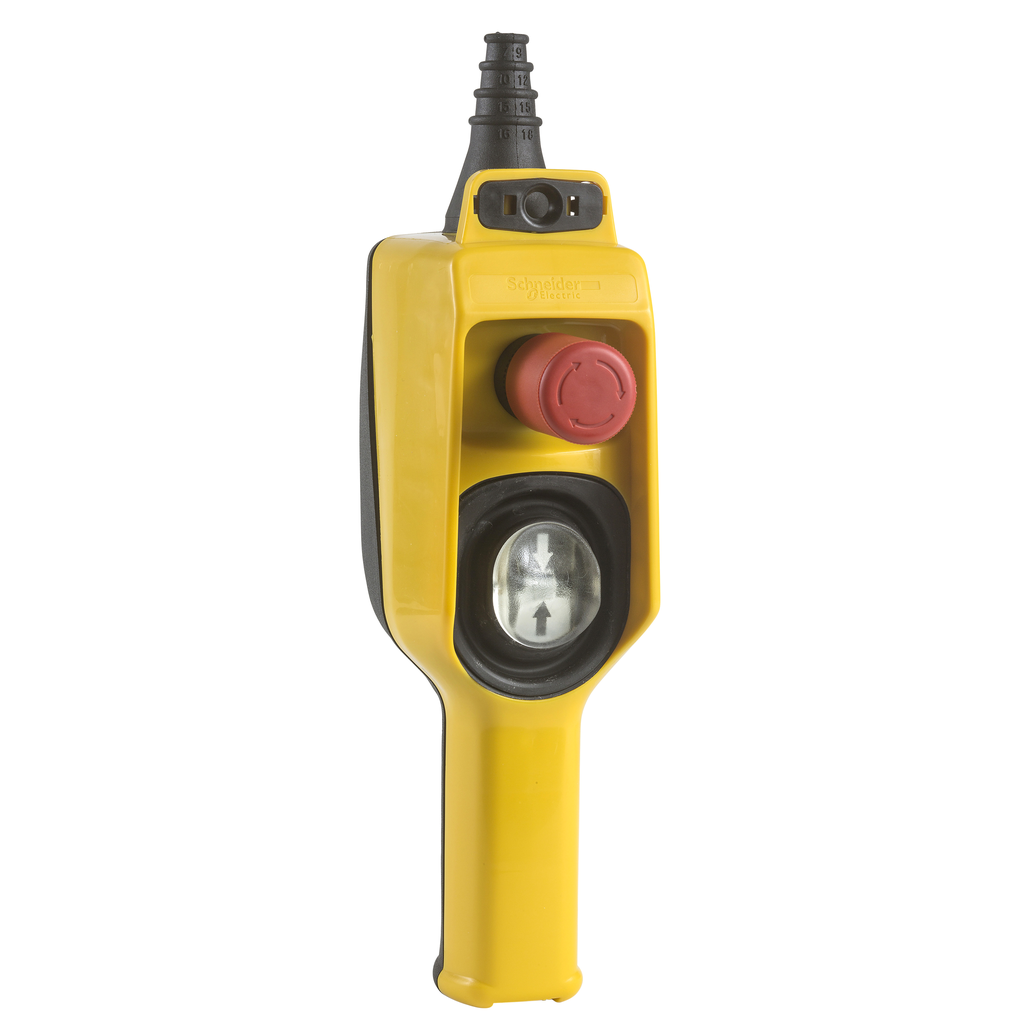

Pendant control station, Harmony XAC, plastic, yellow, 1 2 directional push button, 1 emergency stop
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with one 2-directional operator, reversing, and mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK08 conforming to EN 50102 |
|---|---|
| Control Station Application | control of single speed hoist motor |
| Terminal Identifier |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Terminals Description Iso N°2 | (11-12)NC |
| Terminals Description Iso N°1 |
|
| Standards |
|
| Maximum Resistance Across Terminals | 25 MOhm |
| Short-Circuit Protection | 10 A fuse protection cartridge gG |
| Cable Entry | rubber sleeve with stepped entry 7-18 mm |
| Shock Resistance | 70 gn IEC 60068-2-27 |
| Enclosure Type | complete ready for use |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.425 kg |
| Product Compatibility |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Control Station Type | double insulated |
| Control Type | intuitive |
| Motor Starter Type | reversing |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Control Station Composition | 1 2-directional button + 1 emergency stop |
| Overvoltage Category | class II IEC 61140 |
| Contact Operation | slow-break |
| Mechanical Interlocking | with mechanical interlocking |
| Control Station Colour | yellow |
| Mechanical Durability | 3000000 cycles |
| Operating Force | 16-16 N |
| Control Button Type |
|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Electrical Circuit Type | control circuit |
| Enclosure Material | polypropylene |
| Contact Code Designation |
|
| Protective Treatment | TH |
| Rated Operational Power In W |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Weight | 0.425 kg |
| Range Of Product | Harmony XAC |
| Product Or Component Type | pendant control station |
| Device Short Name | XACD |
| Warranty | 18 months |
