XACB9111

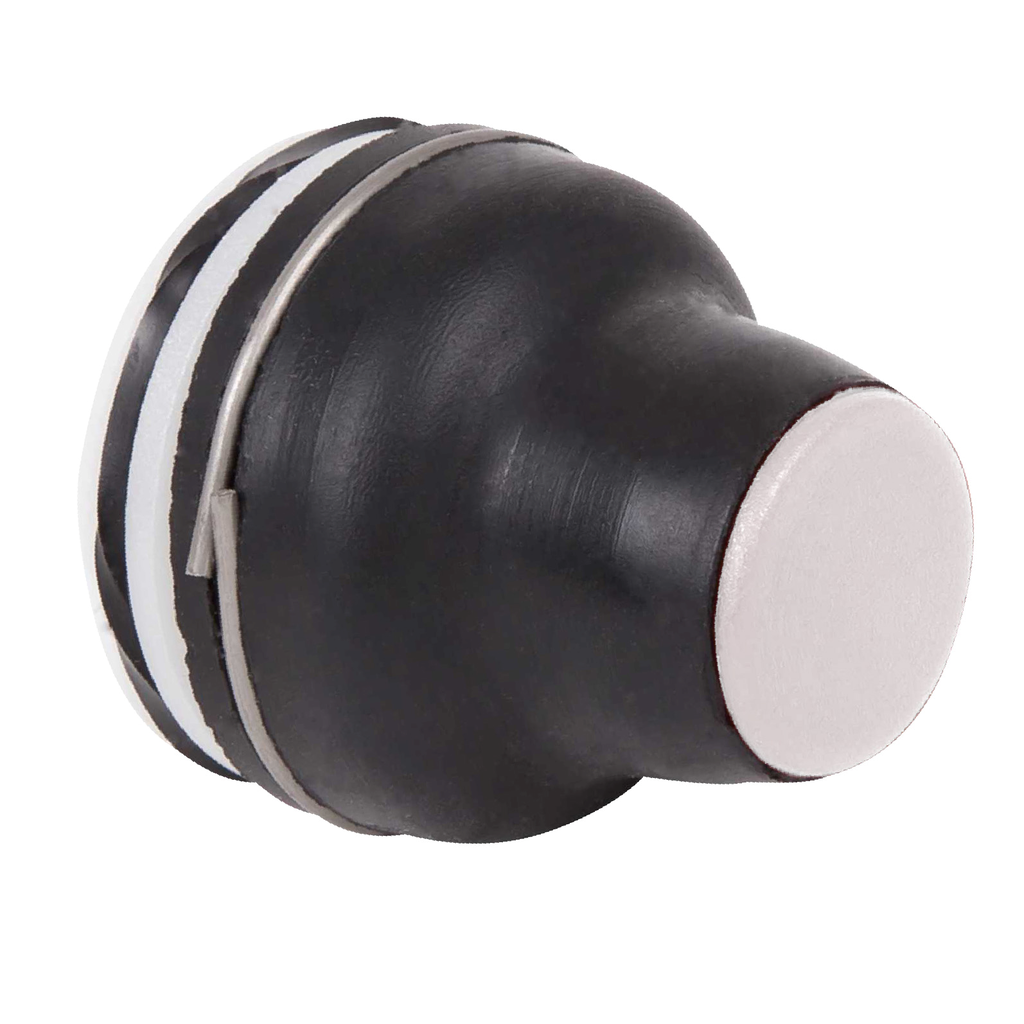

Head for push button, Harmony XAC, plastic, white, booted, operating travel 4mm
Specifications
| Ik Degree Of Protection | IK08 conforming to IEC 62262 |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.005 kg |
| Country of Origin | Czechia |
| Weight | 0.005 kg |
| Operator Additional Information | booted |
| Range Of Product | Harmony XAC |
| Product Or Component Type | head for push-button |
| Marking | unmarked |
| Cap/Operator Or Lens Colour | white |
| Component Name | XACB |
| Sale Per Indivisible Quantity | 10 |
| Operating Travel | 4 mm |
| Product Compatibility |
|
