XACA9416

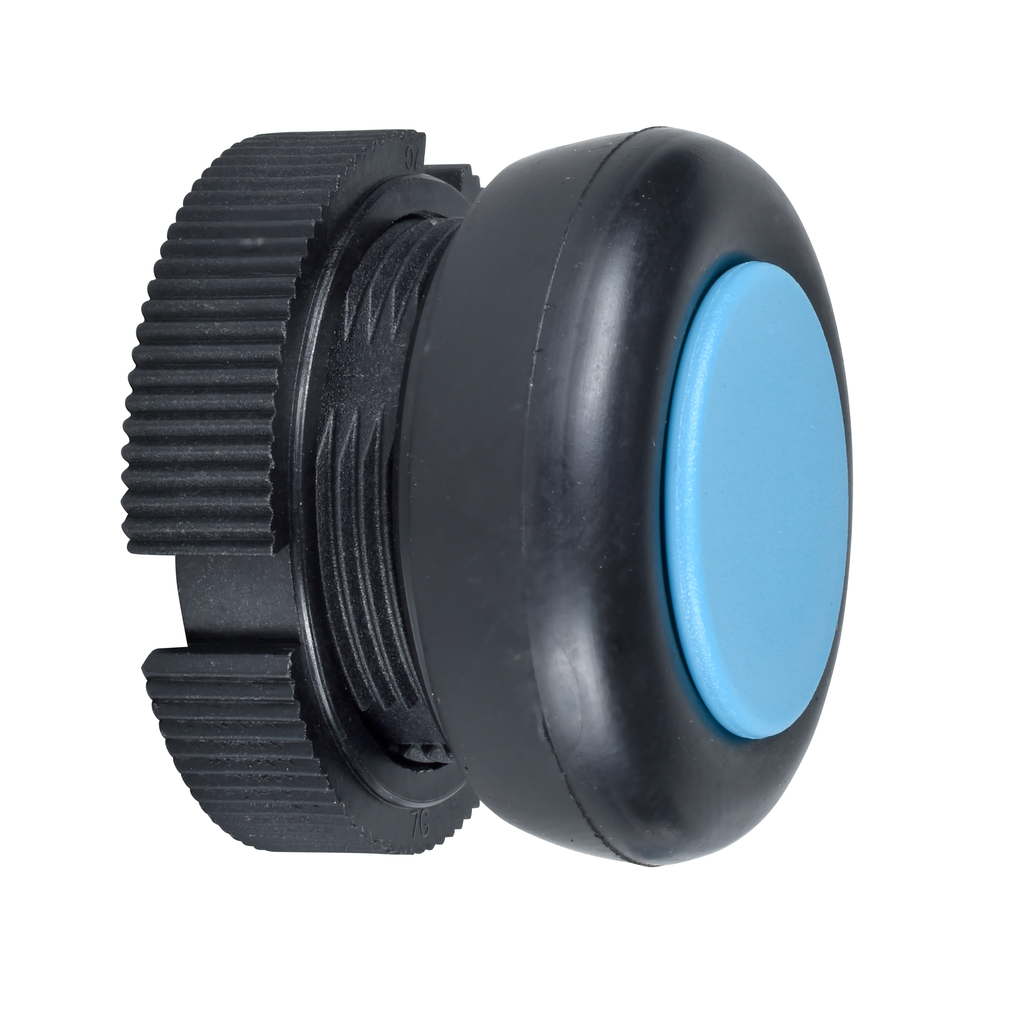

Head for push button, Harmony XAC, plastic, blue, booted, spring return
This blue booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK08 conforming to IEC 62262 |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Operator Additional Information | booted |
| Standards |
|
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Marking | unmarked |
| Cap/Operator Or Lens Colour | blue |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.01 kg |
| Mounting Location | front of enclosure |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Sale Per Indivisible Quantity | 10 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Product Compatibility | XACA.. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Weight | 0.01 kg |
| Range Of Product | Harmony XAC |
| Product Or Component Type | head for push-button |
| Component Name | XACA |
| Warranty | 18 months |
