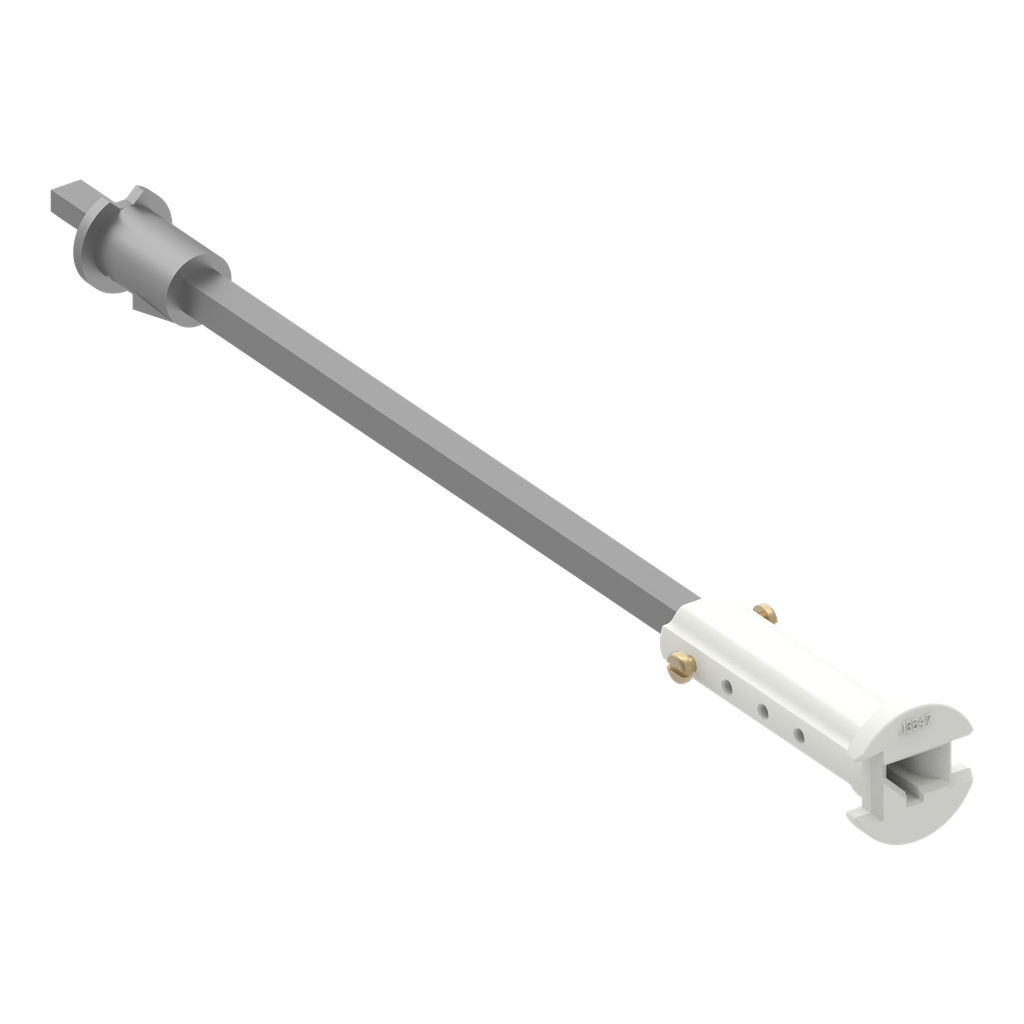

Shaft extension,TeSys Control,for VN12/VN20/V02-V2
VZN17 is a shaft extension for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it allows operating a switch body mounted at the back of an enclosure, back to door distance 300-330mm. VZN17 is a shaft extension for TeSys Vario switch-disconnectors from Schneider Electric. For use with a switch body VN12-VN20 or V02-V2 and mounted at the back of an enclosure, it allows the operation of a door mounted handle distant 300-330mm from the back. Extension shaft for the external operation of a Vario switch disconnector body VN12-VN20 and V02-V2 mounted at the back of a cabinet. For a distance of 300-330mm between the back of the enclosure and the external door surface.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211017 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Country of Origin | Germany |
| Length | 300 mm |
| Width | 6 mm |
| Height | 6 mm |
| Weight | 100 g |
| Accessory / Separate Part Category | locking accessory |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility |
|
| Device Short Name | VZ |
| Height | 6 mm |
| Back/Door Distance | 300-330 mm |
| Length | 300 mm |
| Net Weight | 100 g |
| Mechanical Interlocking | door interlocking function |
| Width | 6 mm |
| Warranty | 18 months |
