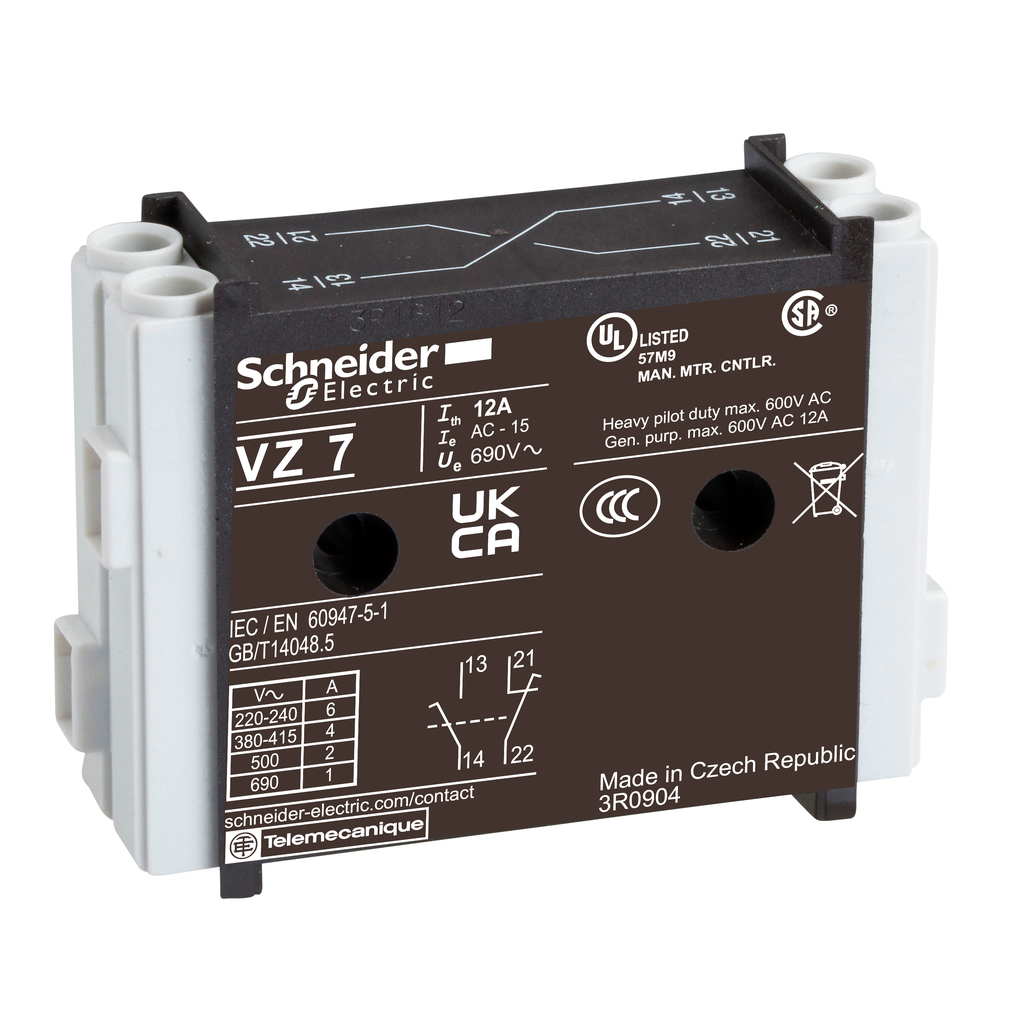

VZ7 - Auxiliary contact block,TeSys Control,1 NC early break 1 NO late make,for V02-V6

VZ7

Auxiliary contact block,TeSys Control,1 NC early break+1 NO late make,for V02-V6

VZ7 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. To be used with V02 to V6 switch bodies, mounted on one side of the switch body. It includes 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 690V and DC operation until 250V. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	GL CSA UL UKCA
Ambient Air Temperature For Operation	-20-50 °C
Standards	IEC 60947-5
Ip Degree Of Protection	IP20 conforming to IEC 60529
Protective Treatment	TC
Fire Resistance	960 °C IEC 60695-2-1
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211001
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free product
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz
Height	65 mm
[Ith] Conventional Free Air Thermal Current	12 A
[Ithe] Conventional Enclosed Thermal Current	10 A
Net Weight	0.05 kg
[Uimp] Rated Impulse Withstand Voltage	8 kV
Mounting Location	left right
Connections - Terminals	screw clamp terminals 2 0.75-1.5 mm² flexible - with cable end screw clamp terminals 2 1-2.5 mm² solid
Electrical Durability	30000 cycles DC-11 100000 cycles AC-15
Mechanical Durability	100000 cycles
Width	20 mm
Tightening Torque	0.7-0.7 N.m screw clamp terminals
Depth	48.5 mm
Country of Origin	Germany
Width	20 mm
Height	65 mm
Weight	0.05 kg
Network Frequency	50/60 Hz
Network Type	AC DC
Product Or Component Type	auxiliary contact block
Performance Level	high performance
Range	TeSys
Contact Operation	late-make 1 NO early-break 1 NC
Contacts Type And Composition	1 NO + 1 NC
Product Compatibility	V2 V5 V02 V6 V1 V4 V01 V0 V3
Device Short Name	VZ

Auxiliary contact block,TeSys Control,1 NC early break+1 NO late make,for V02-V6
