VZ3V1301

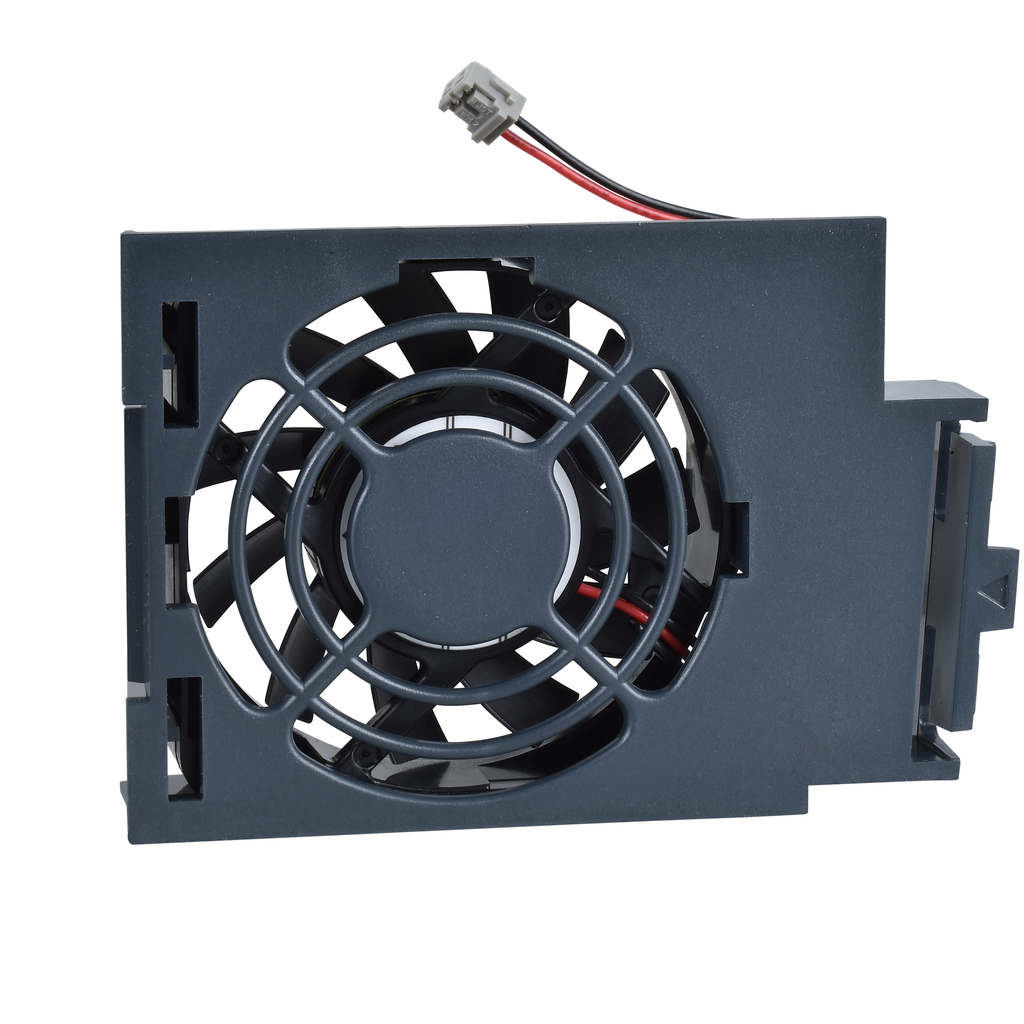

Wear part, fan kit for variable speed drive, Altivar 12, Altivar Machine 320
This product is a wear part for Drive Altivar 12. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 0.75kw to 2.2kw and a rated voltage from 100V to 240V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 16.6cm (width) x 23cm (Length) x 7cm (Height) and weighs 164g. This power fan is compatible with ATV12H075F1, ATV12HU15M2, ATV12HU22M2. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. Variable Speed Drives for commercial equipment from 0.18 to 4 Kw. For simple and advanced machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
| Country of Origin | Indonesia |
| Accessory / Separate Part Category | cooling accessory |
| Product Or Component Type | fan |
| Range Compatibility |
|
| Accessory / Separate Part Type | fan kit |
| Product Compatibility |
|
| Kit Composition |
|
Documents
- Discover the catalog for Altivar Machine ATV320 variable speed drive - Catalog+Altivar+Machine+ATV320+variable+speed+drives (pdf)
- Altivar 12 Variable speed drives - DIA2ED2130101EN+(web) (pdf)
- Discover the catalog for Altivar Solar Variable Speed Drives - Altivar+Solar+Variable+Speed+Drives+catalog (pdf)
- Instruction sheet fan kit VZ3V1301,302 - ATV12_IS_FAN_BBV46504_00 (pdf)
- Spec Sheet
