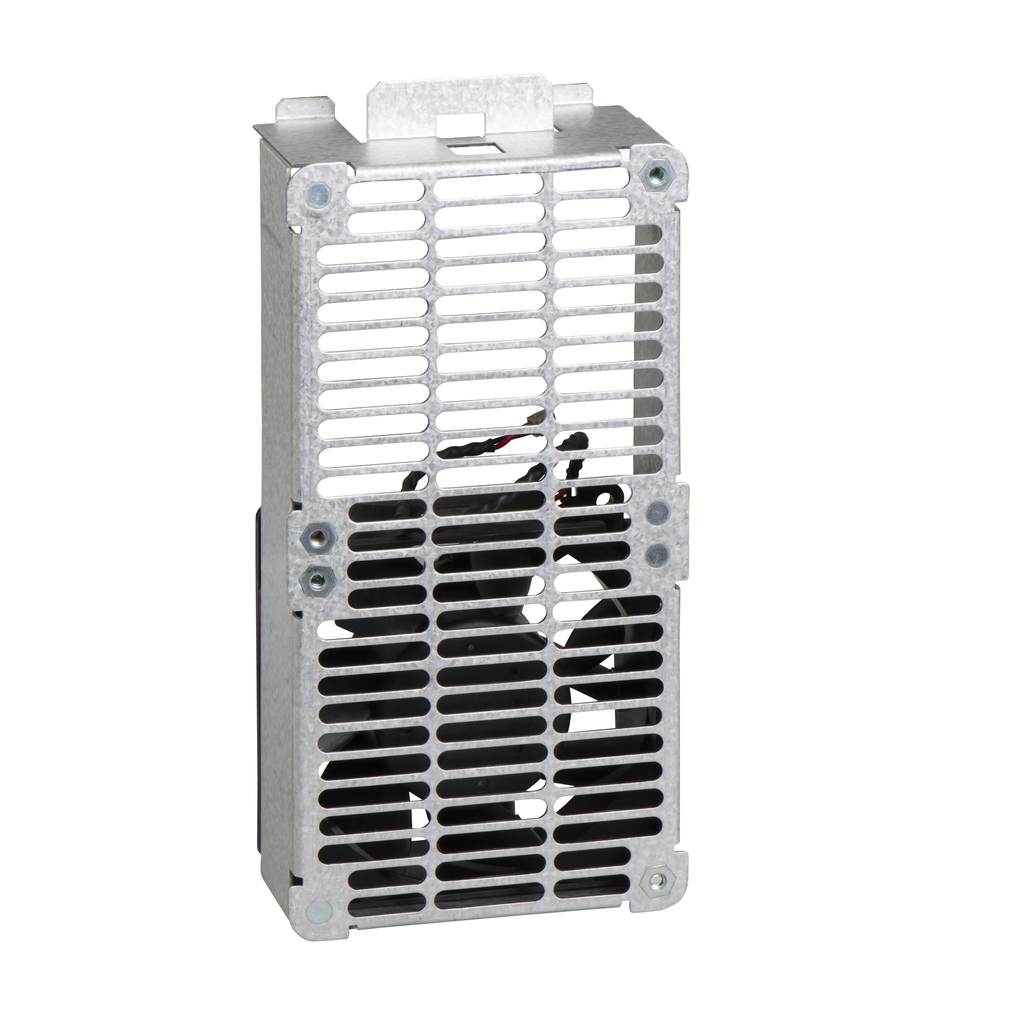

Wear part, fan kit for variable speed drive, Altivar 61, Altivar 71, Altivar 212
This product is a wear part for Drive Altivar 212, Altivar 61 and Altivar 71. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV212 from 0.75kw to 75kw and a rated voltage from 200V to 480V, variable speed drive ATV61 from 0.75kw to 800 kw, variable speed drive ATV71 from 0.37kw to 630 kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 29.2cm (width) x 29.6cm (Length) x 9.2cm (Height) and weighs 712g. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. Best in class efficiency make the AHRI Certified™ ATV212 the ideal choice for pump, fan and scroll compressor applications in modern buildings.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.69 kg |
| Accessory / Separate Part Category | cooling accessory |
| Range Compatibility |
|
| Product Or Component Type | fan |
| Accessory / Separate Part Type | fan kit |
| Net Weight | 0.69 kg |
| Product Compatibility |
|
| Kit Composition |
|
| Warranty | 18 months |
Documents
- Altivar 61 and 71 Fan Kits VZ3V1206, VZ3V1207, VZ3V1208, and VZ3V1211 Installation Instructions - 30072-452-10+sz+6+thru+9 (pdf)
- Altivar Plus Users Manual - 30072-454-96_04 (pdf)
- Fan tape for custom frame size 6 - VZ3V1211_DATASHEET_GB_en (pdf)
- Altivar 61 and 71 Spare Parts Kits Required Documentation - 30072-452-44 (pdf)
- Spec Sheet
- Catalog: Altivar 61/61 Plus variable speed drives - English version 2014/04 (web pdf format) - DIA2ED2140406EN+(web) (pdf)
