VZ30

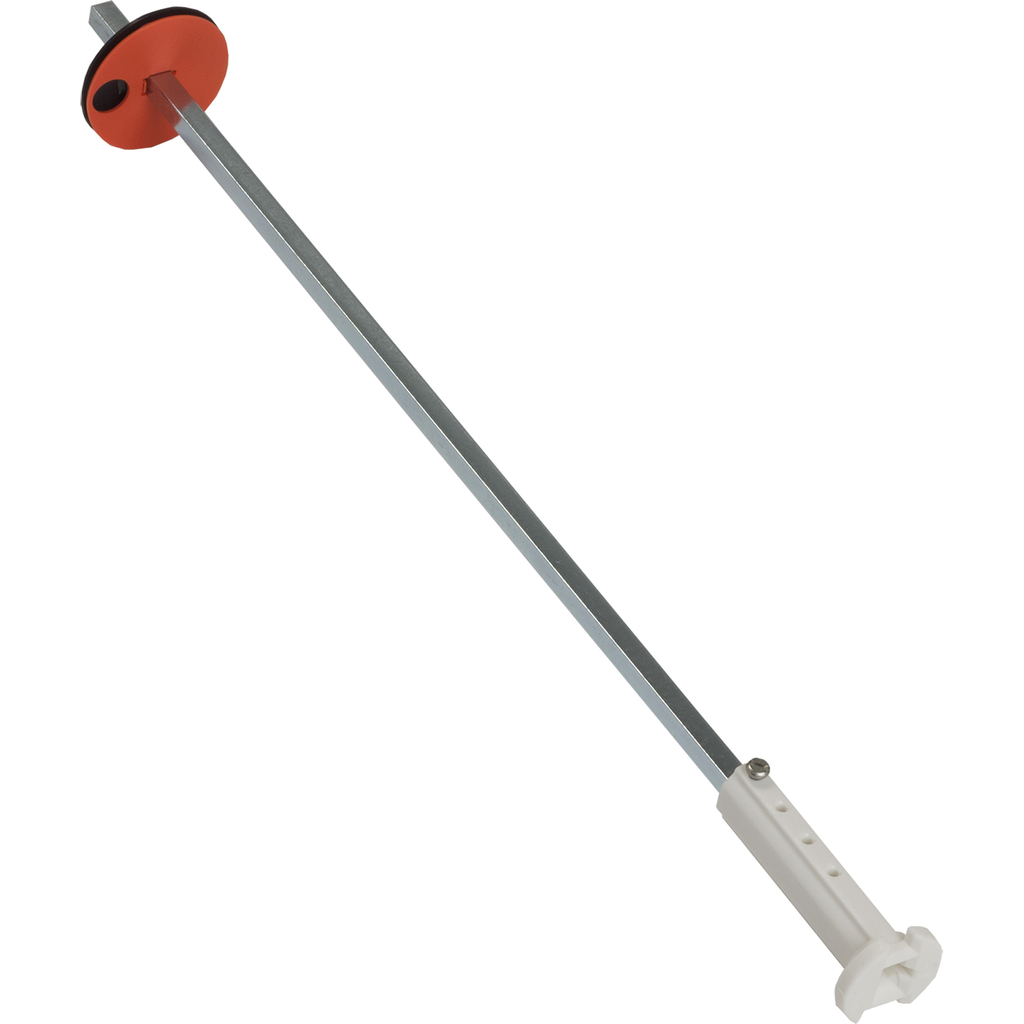

Shaft extension,TeSys Control,for V02-V2,distance 400-430mm
TeSys Vario shaft extension, for TeSys Vario switch bodies V02 to V2. It allows the operation of a switch body located on the back of enclosure with a door-mounted handle. Possible distance between back of enclosure and door 400-430mm. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 6 mm |
|---|---|
| Back/Door Distance | 400-430 mm |
| Net Weight | 125 g |
| Mechanical Interlocking | door interlocking function |
| Width | 6 mm |
| Country of Origin | Czechia |
| Width | 6 mm |
| Height | 6 mm |
| Weight | 125 g |
| Accessory / Separate Part Category | locking accessory |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility | V02...V2 |
| Device Short Name | VZ |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Warranty | 18 months |
Documents
- KZ... / VZ... Cam switches - Accessories, Instruction Sheet - NVE1176500_00 (pdf)
- Spec Sheet
- Manual Motor Control Switches and Disconnects Catalog - 9421CT0301 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
