VZ18

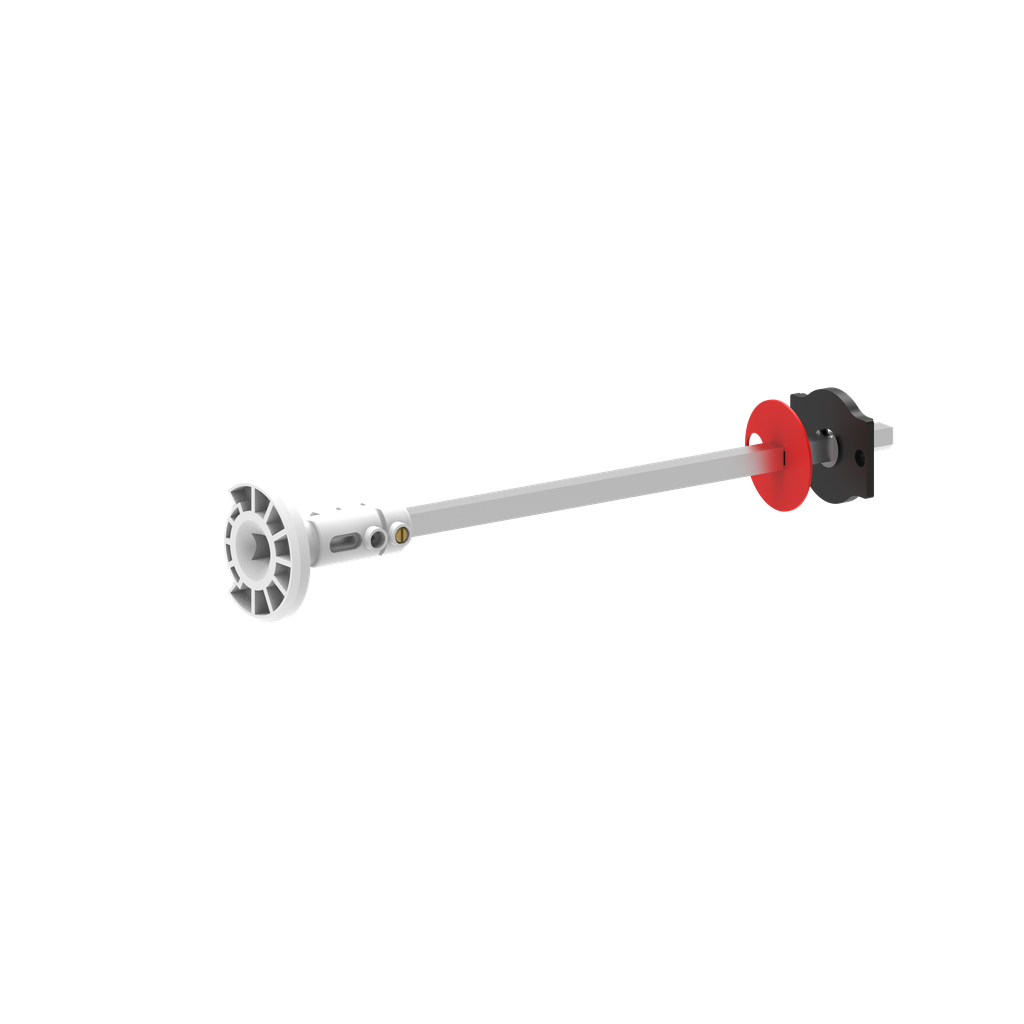

Shaft extension,TeSys Control,for V3-V6,distance 300-330mm
TeSys Vario shaft extension, for TeSys Vario switch bodies V3 to V6. It allows the operation of a switch body located on the back of enclosure with a door-mounted handle. Possible distance between back of enclosure and door 300-320mm for V3-V4 and 330-350mm for V5-V6. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 8 mm |
| Height | 8 mm |
| Weight | 170 g |
| Accessory / Separate Part Category | locking accessory |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility |
|
| Device Short Name | VZ |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Height | 8 mm |
| Back/Door Distance |
|
| Net Weight | 170 g |
| Mechanical Interlocking | door interlocking function |
| Width | 8 mm |
| Warranty | 18 months |
