VZ12

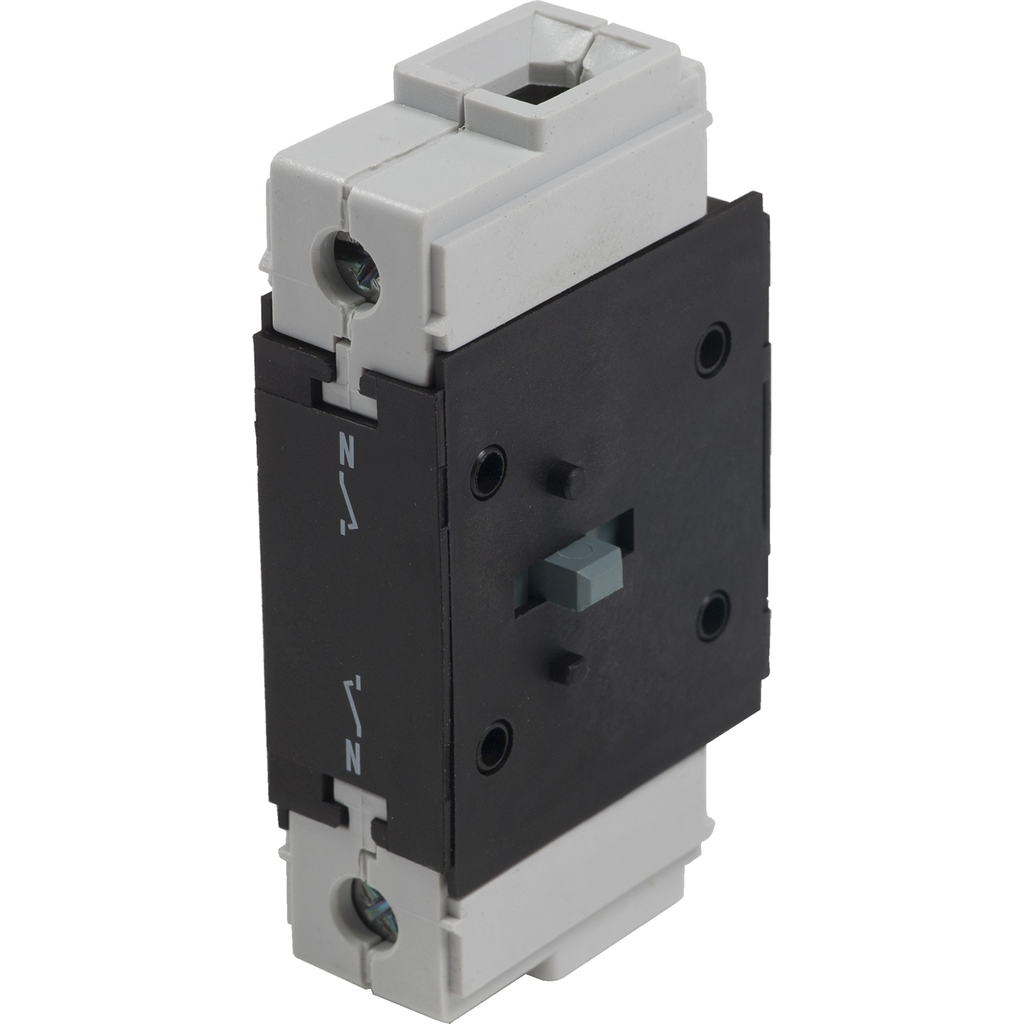

Additional neutral block,TeSys Control,80A,for V3 / V4
VZ12 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A to 80A 690V, to be used with V3 and V4 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 83 mm |
| [Ith] Conventional Free Air Thermal Current | 80 A |
| Net Weight | 0.1 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Mounting Location |
|
| Connections - Terminals |
|
| Electrical Durability |
|
| Mechanical Durability | 30000 cycles |
| Width | 20 mm |
| Tightening Torque | 4-4 N.m screw clamp terminals |
| Depth | 46 mm |
| Country of Origin | Czechia |
| Width | 20 mm |
| Height | 83 mm |
| Weight | 0.1 kg |
| Network Frequency | 50/60 Hz |
| Network Type |
|
| Range Compatibility | TeSys TeSys VARIO switch disconnector |
| Product Or Component Type | additional neutral block |
| Performance Level | high performance |
| Range | TeSys |
| Contacts Type And Composition | 1 NO |
| Contact Operation | early make, late break |
| Poles Description | 1N |
| Product Compatibility |
|
| Device Short Name | VZ |
