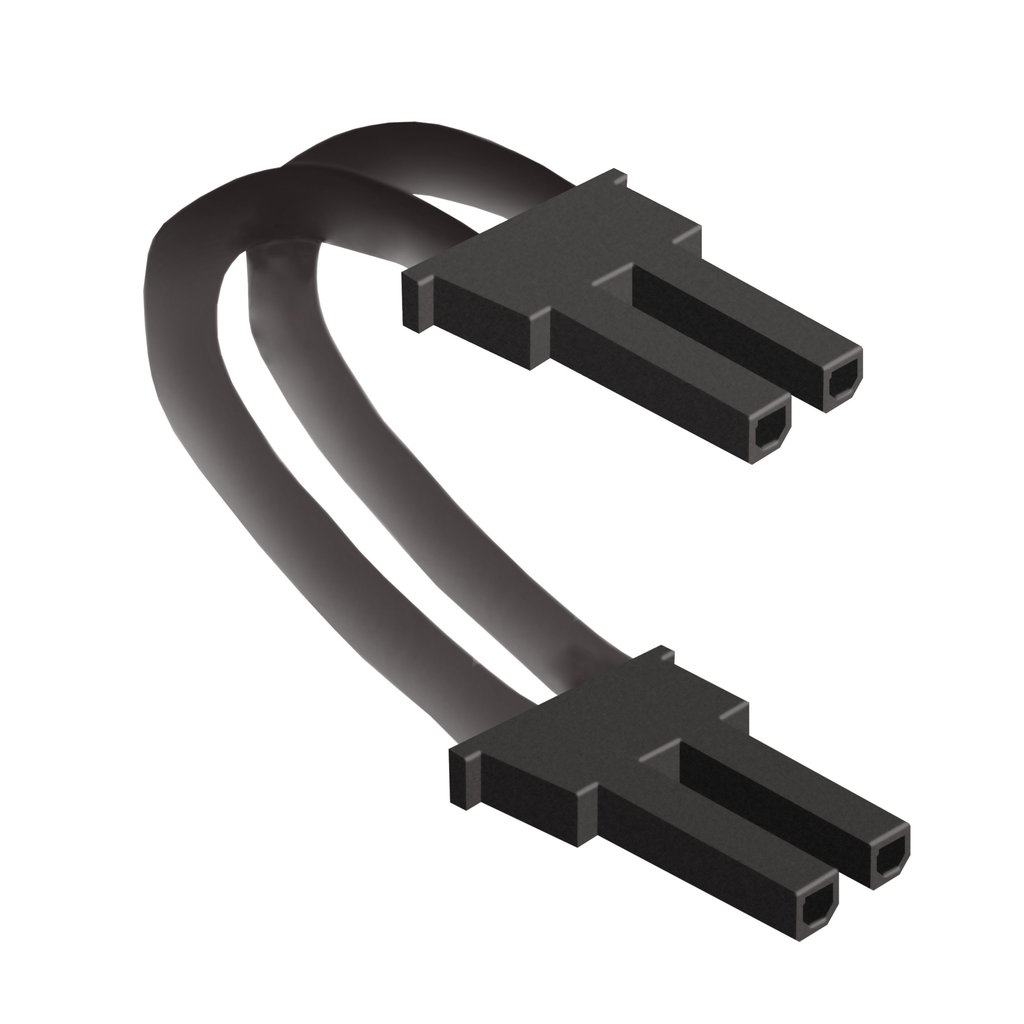

VW3M7101R01
DC bus connection - 0.1 m
This cordset is proposed as an option of variable speed drives or Lexium servo drives. It allows Daisy chain connection of the DC bus, is equipped with 2 connectors and is 0.18 meters long . It is sold in lots of 5.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Cable Length | 0.18 m |
| Electrical Connection | 2 connectors |
| Country of Origin | United States |
| Length | 0.18 m |
| Range Of Product | Altivar |
| Product Compatibility |
|
| Accessory / Separate Part Category | cabling accessory |
| Quantity Per Set | 5 |
| Range Compatibility |
|
| Product Or Component Type | daisy chain DC bus cordset |
| Accessory / Separate Part Type | cordset |
| Accessory / Separate Part Destination | between 2 drives |
| Warranty | 18 months |
