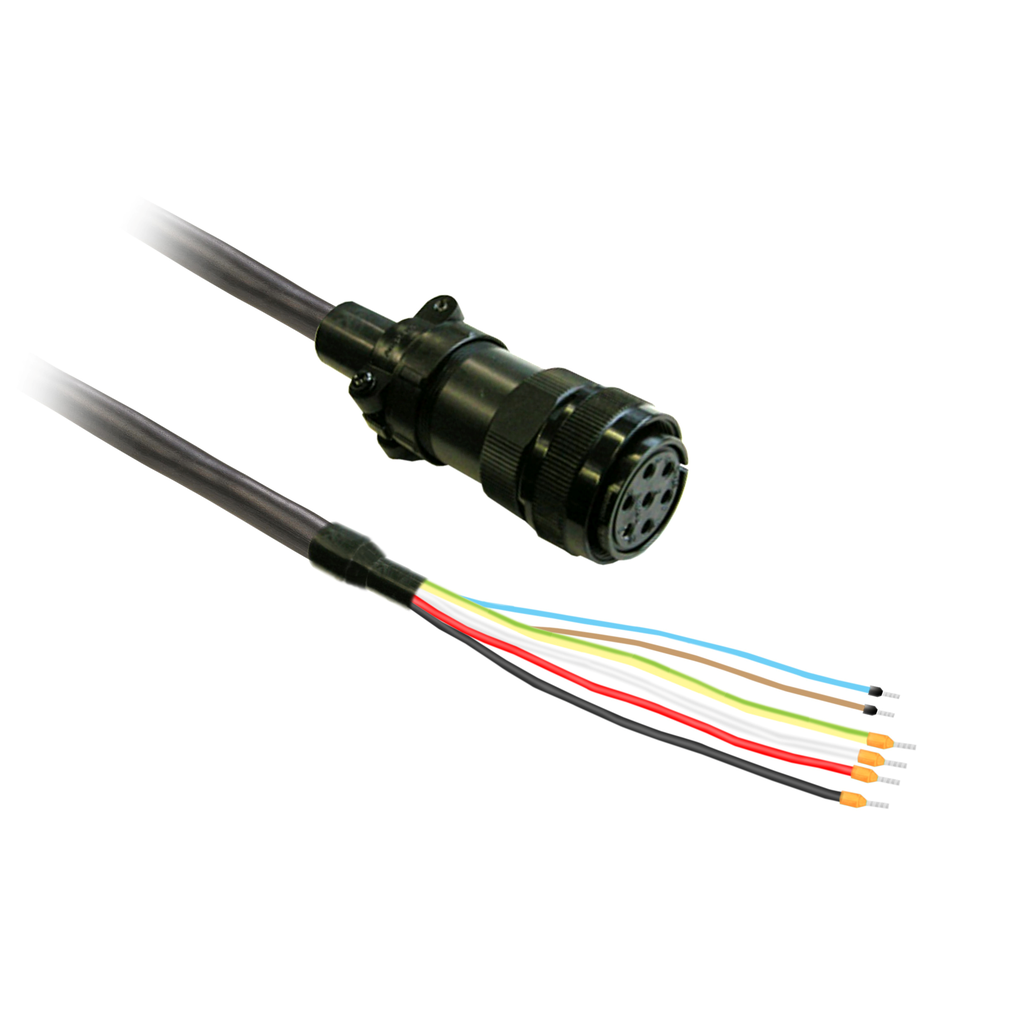

VW3M5D4FR50
power cable 5m shielded 4x 3,3mm², BCH2 brake MIL connector
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Country of Origin | Tunisia |
| Length | 5 m |
| Weight | 1.45 kg |
| Range Of Product | Lexium 28 |
| Product Compatibility | servo motor BCH2 2000 W 180 mm) with brake) |
| Cable Length | 5 m |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | power cable |
| Range Compatibility | Lexium 28 |
| Accessory / Separate Part Type | preassembled power cordset |
| Accessory / Separate Part Destination | between servo motor and servo drive |
| Electrical Connection |
|
| Net Weight | 1.45 kg |
| Awg Gauge | 6 x AWG 12 |
Documents
- Spec Sheet
- Catalog Lexium 28 servo drives and BCH2 servo motors - August 2022 - Catalog+Lexium+28+servo+drives+and+BCH2+servo+motors_August+2022 (pdf)
- Catalog Easy Lexium 26 Servo drives and servo motors for simple machines - August 2022 - Catalog+Easy+Lexium+26+-Servo+drives+and+servo+motors+for+simple+machines-+August+2022 (pdf)
- Easy Series Automation and Control Essentials Catalog-2024 - DIA1ED2190901EN_Web (pdf)
