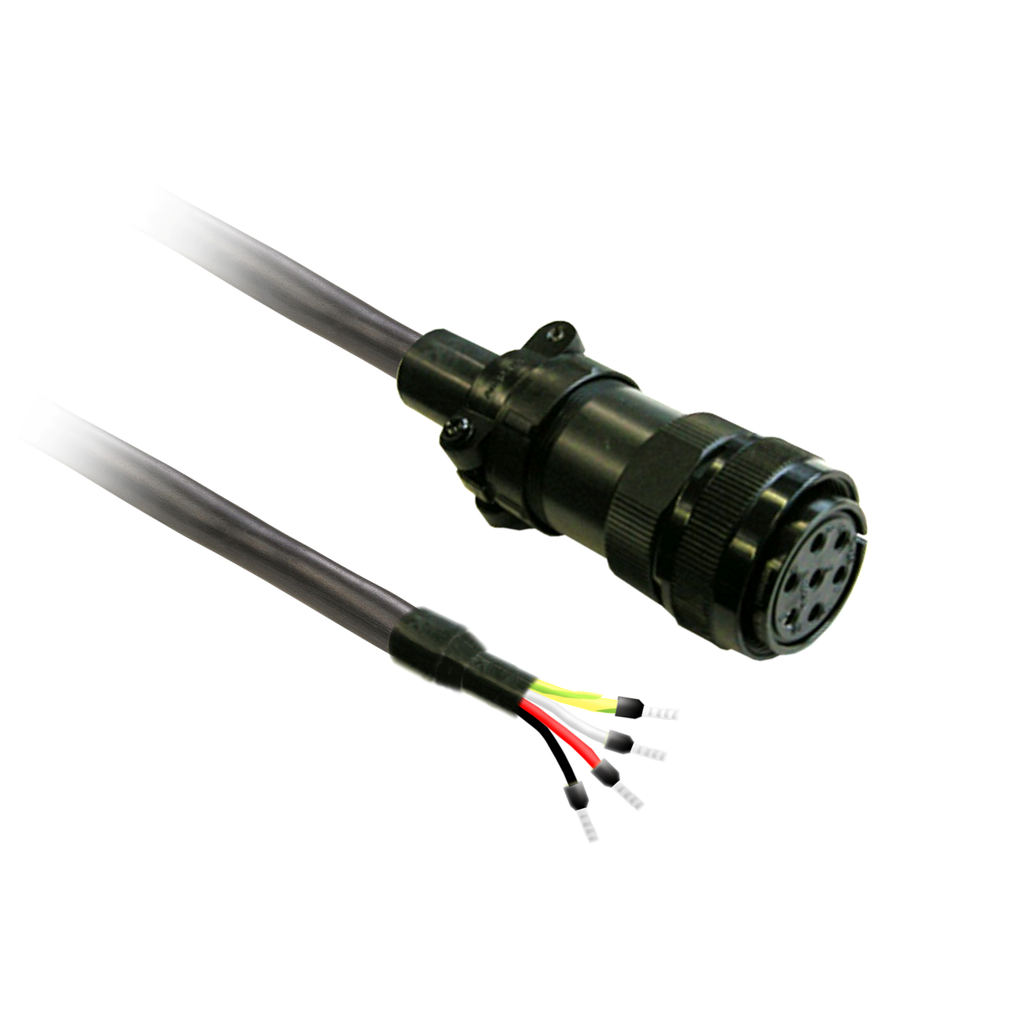

VW3M5D2AR50 - power cable 5m shielded 4x 1,3mm², BCH2 MIL connector

VW3M5D2AR50

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection	free end servo drive side connector - MIL small servo motor side
Net Weight	0.7 kg
Awg Gauge	4 x AWG 16
Country of Origin	Tunisia
Length	5 m
Weight	0.7 kg
Range Of Product	Lexium 28
Product Compatibility	servo motor BCH2 1000 W 100 mm) without brake) servo motor BCH2 2000 W 100 mm) without brake) servo motor BCH2 300 W 130 mm) without brake) servo motor BCH2 500 W 130 mm) without brake) servo motor BCH2 600 W 130 mm) without brake) servo motor BCH2 850 W 130 mm) without brake) servo motor BCH2 900 W 130 mm) without brake) servo motor BCH2 1000 W 130 mm) without brake) servo motor BCH2 1500 W 130 mm) without brake) servo motor BCH2 2000 W 130 mm) without brake)
Cable Length	5 m
Accessory / Separate Part Category	connection accessory
Product Or Component Type	power cable
Range Compatibility	Lexium 28
Accessory / Separate Part Type	preassembled power cordset
Accessory / Separate Part Destination	between servo motor and servo drive
