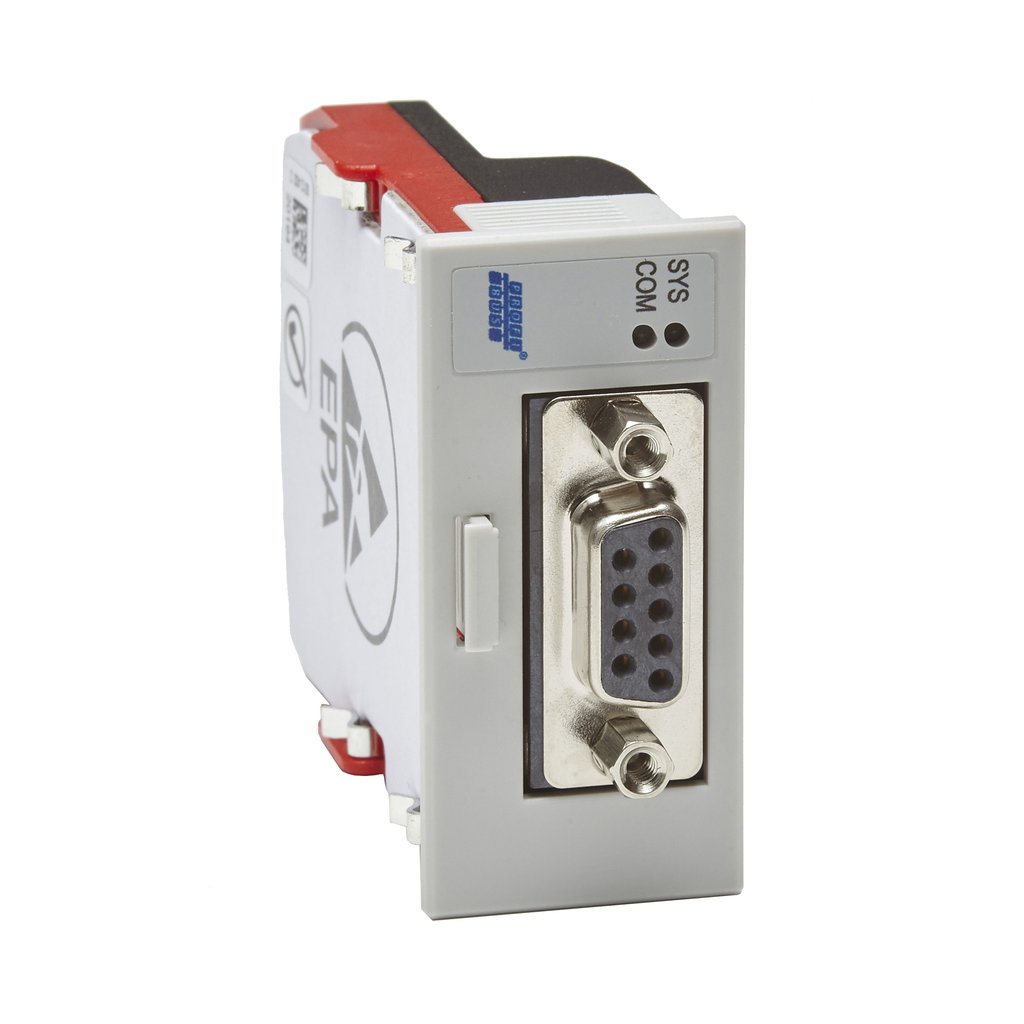

VW3E704000000
module Profibus DP - SUBD-9 connector
This product is part of the Modicon LMC078 range, an offer of Profibus DP communication modules for motion controllers. This Profibus DP communication module features a slave access and RS485 physical interface. It is a communication module supports 12Mbps transmission rate. It is integrated with 1 female D-sub DE-09 connector. It is an IP20 rated product. It weighs 0.08kg. This product is certified by CE, CSA and CULus. It meets CSA C22.2 No 142, EN/IEC 61131-2 zone B and UL 508 standards. It is compatible with Modicon LMC078 motion controllers and PacDrive LMC Eco controllers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | 5-55 °C |
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Standards |
|
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20IEC 61131-2 |
| Marking | CE |
| Vibration Resistance | 10 m/s² direct mounting |
| Shock Resistance | 100 m/s² |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Country of Origin | United States |
| Range Of Product | Modicon LMC078 |
| Range Compatibility | Modicon LMC078 |
| Product Or Component Type | Profibus DP communication module |
| Product Compatibility | motion controller |
| Physical Interface | RS485 |
| Integrated Connection Type | Profibus DP - 1 female SUB-D 9 12 Mbit/s |
| Method Of Access | master/slave |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
